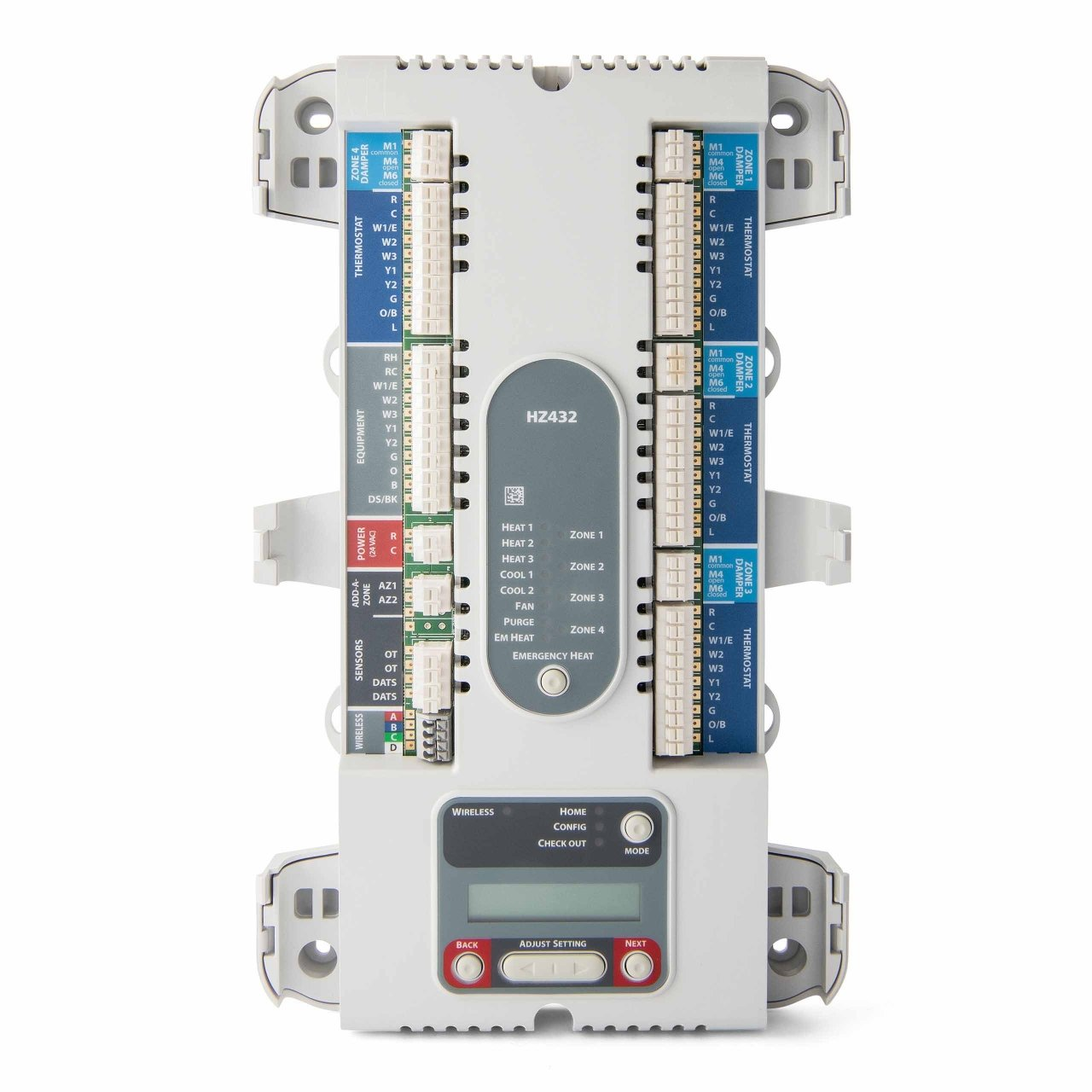

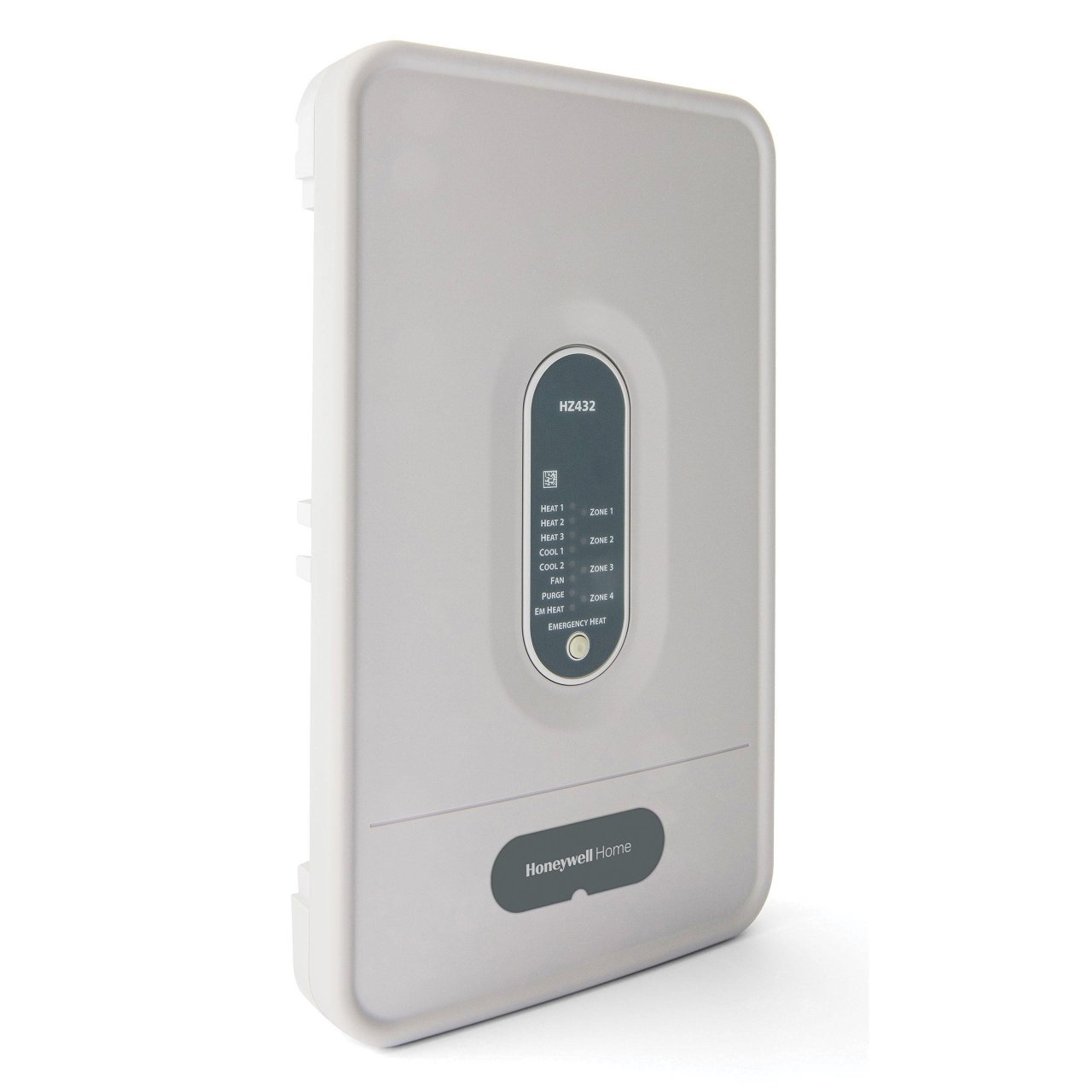

Resideo TrueZONE HZ432 Zoning Control Panel, 4 Zones, 3 H / 2 C, 24 VAC, Auto Changeover, Push Terminal, 8.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size

Changeover	:	Auto
Color	:	Gray
Connection Type	:	Push Terminal
Control Output	:	24 VAC
Dimensions	:	13.42" H x 8" W x 1.86" D
Electrical Connection	:	Push Terminals
Frequency Rating	:	50 Hz, 60 Hz
Humidity Rating	:	5-90% RH (Non-Condensing)
Number of Zones	:	4
Outputs	:	4 Zones
Series	:	TrueZONE
Stages	:	3 H / 2 C
Temperature Rating	:	-40-165 °F
VA Rating	:	8.5 VA (Zone Panel)
Voltage Rating	:	24 VAC
Wire Size	:	18 AWG, 20 AWG

Resideo Zoning Control Panel, Model: TrueZONE, 4 Zones, 3 H / 2 C, 24 VAC, Auto Changeover, Push Terminal, 8.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size, -40-165 °F Temperature Rating, 5-90% RH (Non-Condensing), 13.42" H x 8" W x 1.86" D Dimensions, Gray, 50 Hz, 60 Hz

Controls up to 4 zones for conventional, heat pump, or dual-fuel systems (3H/2C).Expandable up to 32 zones using wired thermostats with the optional TotalZone Add-A-Zone panel (TAZ-4H).Intuitive installer setup features an easy-to-follow digital display with plain language prompts.Includes robust push terminals for secure wiring connections (up to two 18 or 20 AWG wires per terminal).Supports variable-speed fan control, discharge air temperature staging, and advanced dual-fuel operation.RedLINKâ„¢ enabled for wireless zone control when used with the THM4000R1000 Wireless Adapter.Covered by a 5-year manufacturer warranty.
