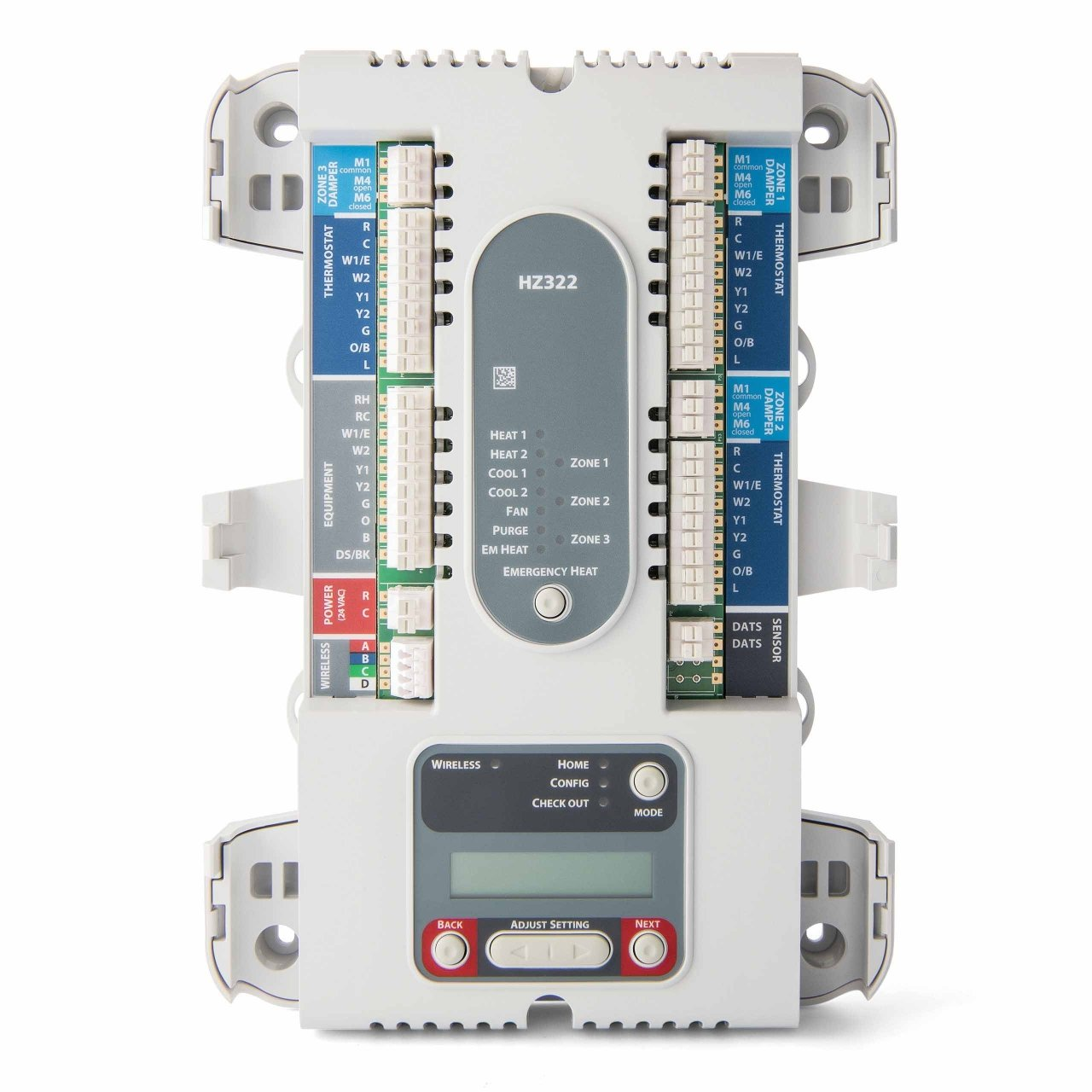

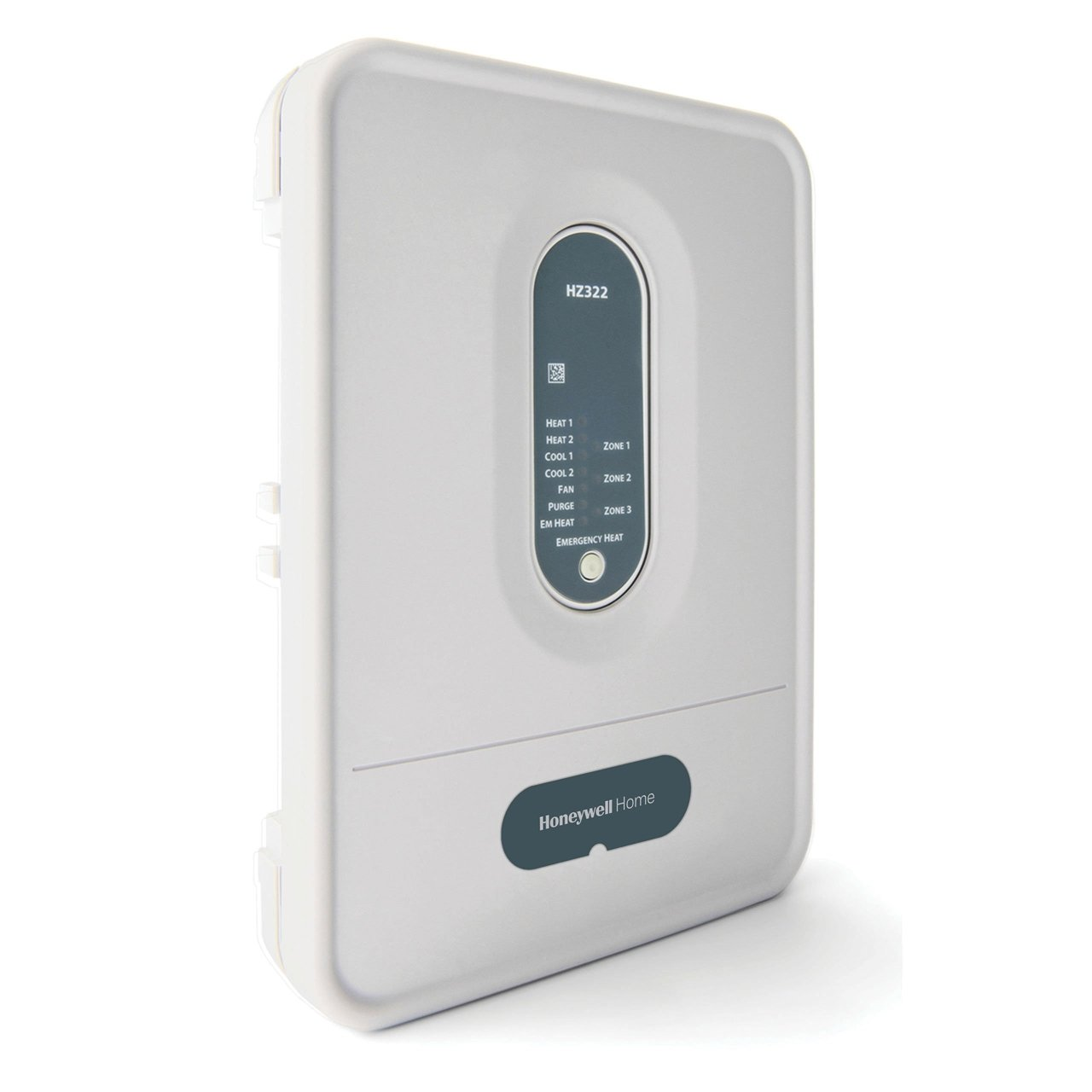

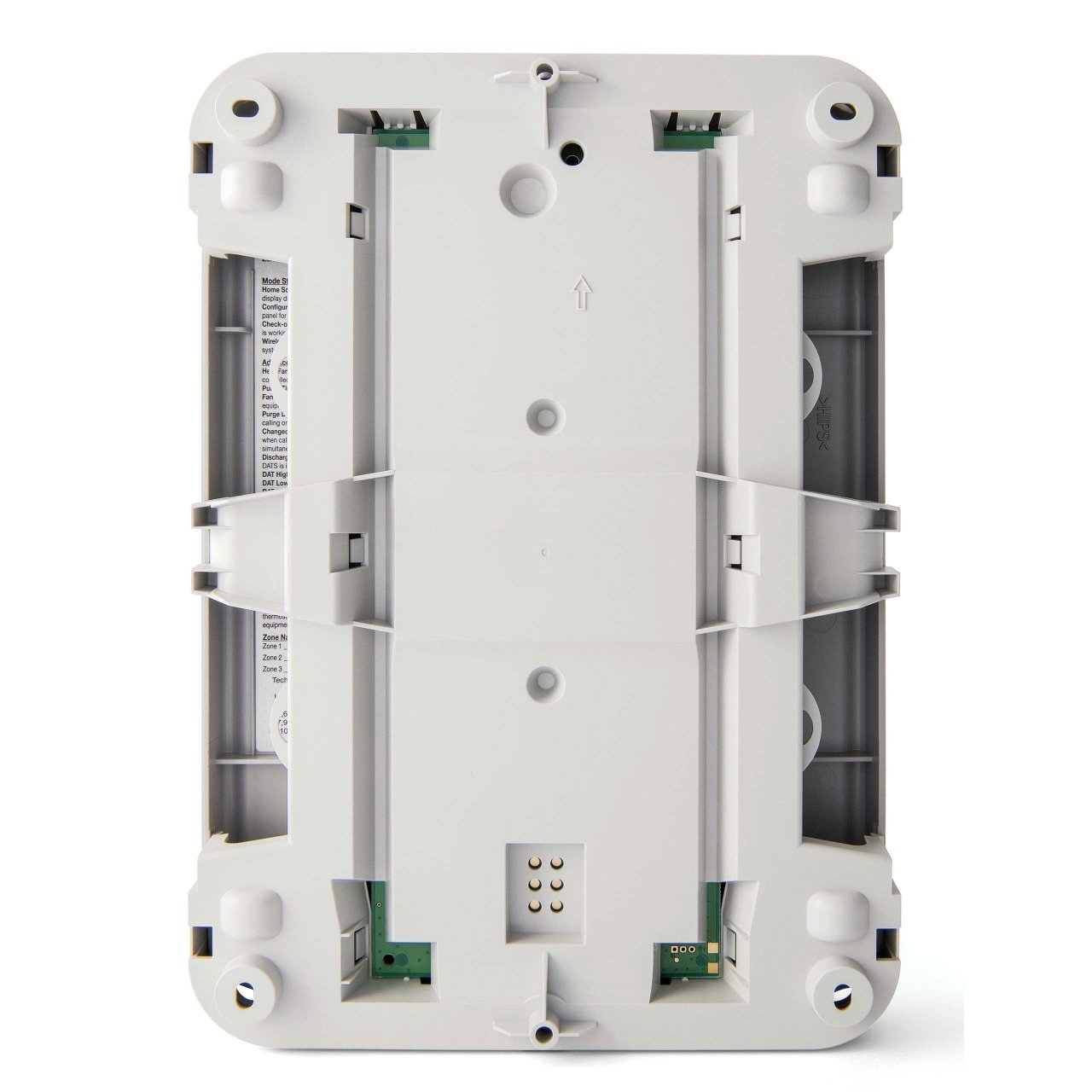

Resideo TrueZONE HZ322 Zoning Control Panel, 3 Zones, 2 H / 2 C, 18-30 VAC, Auto Changeover, Push Terminal, 3 Zones, Up To 2H/2C Conventional, Up To 2H/1C Heat Pump, 24 VAC

Changeover	:	Auto
Color	:	Gray
Connection Type	:	Push Terminal
Control Output	:	24 VAC
Dimensions	:	11.5" H x 8" W x 1.86" D
Electrical Connection	:	Push Terminals
Frequency Rating	:	50 Hz, 60 Hz
Humidity Rating	:	5-90% RH (Non-Condensing)
Number of Zones	:	3
Outputs	:	3 Zones, Up to 2H/2C Conventional, Up to 2H/1C Heat Pump
Series	:	TrueZONE
Shape	:	Rectangular
Stages	:	2 H / 2 C
Temperature Rating	:	-40-165 °F (Operating)
Terminal Type	:	Push Terminal
VA Rating	:	7.5 VA (Zone Panel)
Voltage Rating	:	18-30 VAC
Wire Size	:	18 AWG, 20 AWG

Resideo Zoning Control Panel, Model: TrueZONE, 3 Zones, 2 H / 2 C, 18-30 VAC, Auto Changeover, Push Terminal, 3 Zones, Up To 2H/2C Conventional, Up To 2H/1C Heat Pump, 24 VAC, 7.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size, -40-165 °F (Operating) Temperature Rating, 5-90% RH (Non-Condensing), 11.5" H x 8" W x 1.86" D Dimensions, Rectangular, Gray, 50 Hz, 60 Hz

Controls up to 3 zones for conventional (up to 2H/2C) or heat pump (up to 2H/1C) systems.Features an intuitive setup with a digital display and robust push terminals for faster installation.Includes variable-speed fan control and discharge air temperature staging for optimized comfort and equipment protection.Common-sense LEDs provide clear status indication for quick diagnostics.Compatible with RedLINKâ„¢ wireless technology for flexible thermostat integration (requires THM4000R1000 adapter).Supports automatic changeover between heating and cooling.Backed by a 5-year warranty.
