Resideo F100 Series F100F1625 Media Air Cleaner, 16" x 25" x 4" Nominal Size, Disposable Pleated Media Filter, 11 MERV, 32% (0.3-1.0 Microns), 72% (1.0-3.0 Microns), 96% (3.0-10.0 Microns), 1,400 CFM, 0.23 In. Wc. (At 500 FPM) Pressure Drop, Deep Pleated

Air Flow Capacity	:	1,400 CFM
Air Flow Velocity	:	500 FPM
Cabinet Dimensions	:	25" L x 16" H x 6-3/4" W
Cabinet Finish	:	Zinc Coated
Cabinet Material	:	Zinc-Coated Metal
Depth	:	25 "
Domestic/Import	:	Domestic
Duct Size	:	16" x 25"
Filter Efficiency	:	32% (0.3-1.0 Microns), 72% (1.0-3.0 Microns), 96% (3.0-10.0 Microns)
Filter Type	:	Disposable Pleated Media
Finish	:	Zinc Coated
Height	:	16 "
MERV	:	11 MERV
Material	:	Zinc-Coated Steel (Cabinet)
Media Size	:	16" x 25" x 4"
Media Type	:	Deep Pleated
Mounting Type	:	Duct Mount
Nominal Size	:	16" x 25" x 4"
Pressure Drop	:	0.23 in. wc. (At 500 FPM)
Width	:	6-3/4 "

Resideo Media Air Cleaner, Model: F100 Series, 16" x 25" x 4" Nominal Size, Disposable Pleated Media Filter, 11 MERV, 32% (0.3-1.0 Microns), 72% (1.0-3.0 Microns), 96% (3.0-10.0 Microns), 1,400 CFM, 0.23 In. Wc. (At 500 FPM) Pressure Drop, Deep Pleated, Duct Mount, 25" L x 16" H x 6-3/4" W Cabinet Dimensions, Zinc Coated, Zinc-Coated Steel (Cabinet), Domestic, 500 FPM

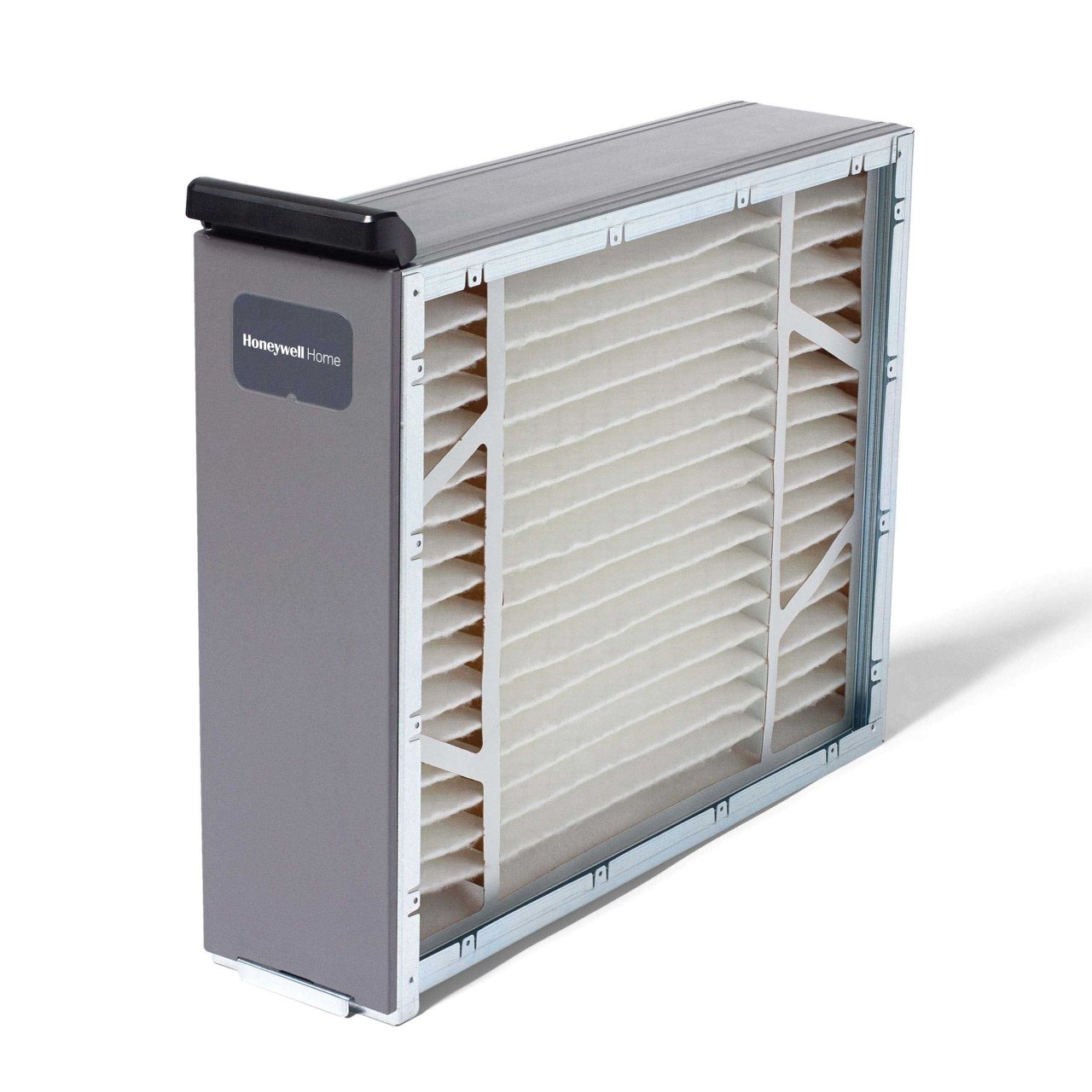

Features a MERV 11 deep-pleated media filter capturing airborne particles down to 0.3 microns.Compatible with gas, oil, and electric forced air furnaces and AC systems up to 5 tons.Mounts in any position in the return air duct without requiring electrical connections.Durable zinc-coated, roll-formed cabinet resists corrosion and can support furnace/coil weight.Includes cabinet, access door, and one MERV 11 filter (compatible with FC100A1029, FC200E1029, POPUP1625).Disposable filter requires replacement only every 6-12 months, depending on use.Covered by a 5-year manufacturer warranty.
