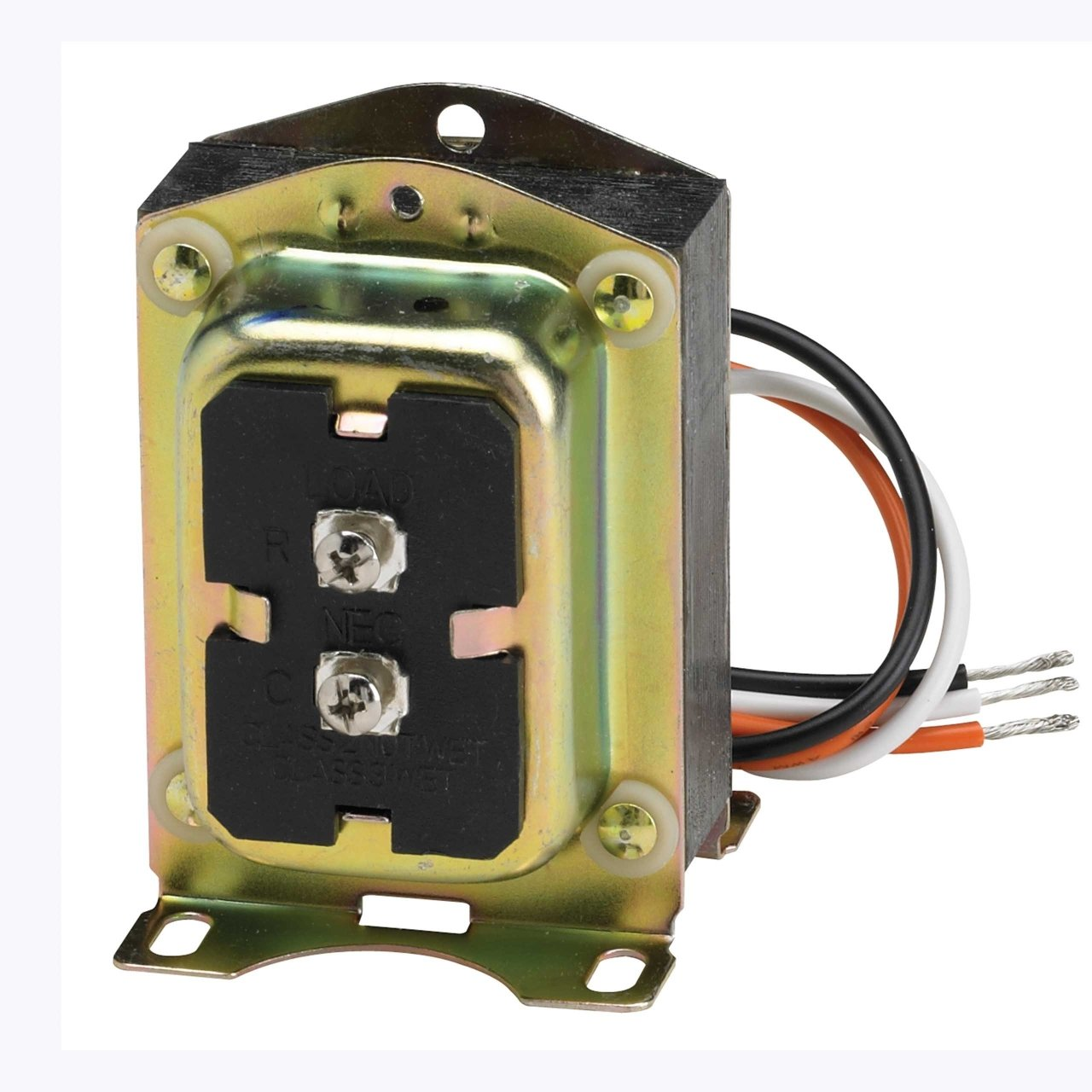

resideo AT140A1000/U General Purpose Transformer, 120 V Primary, 27 V Secondary, 40 VA
resideo AT140A1000/U General Purpose Transformer, 120 V Primary, 27 V Secondary, 40 VA
Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 385538
MPN: AT140A1000/U
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | Screw Terminal Primary/Lead Wire Secondary Connection, 60 Hz Frequency Rating, Foot Mount |
| Class | : | 2, 3 |
| Housing Color | : | Metallic |
| Overall Depth | : | 3-1/8 in |
| Overall Height | : | 3-3/16 in |
| Overall Width | : | 2-3/8 in |
| Power Rating | : | 40 VA |
| Primary Voltage | : | 120 V |
| Secondary Voltage | : | 27 V |
40 VA general purpose transformers from resideo power 24 V circuits. Although typically used in heating and cooling control systems, they can be used in applications that do not exceed the load ratings.
resideo General Purpose Transformer, 120 V Primary, 27 V Secondary Voltage, 40 VA, Class: 2, 3, Metallic Housing, 2-3/8 in Overall Width, 3-1/8 in Overall Depth, 3-3/16 in Overall Height, Additional Information: Screw Terminal Primary/Lead Wire Secondary Connection, 60 Hz Frequency Rating, Foot Mount
- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 in male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections
