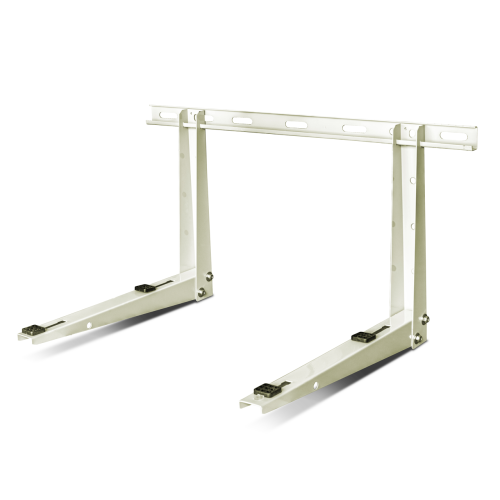

RectorSeal Big Foot 87733 Wall Condenser Bracket, 300 lbs Load Capacity, 33-1/2" Overall Width, 22" Overall Depth, 18" Overall Height, 14 Gauge Steel, Hex Lag Screw, Concrete Anchor, Bolt, Clip Nut, Philip Head Screw Fastener Type, 0.315" (Concrete Anchor), 1" (Bolt), 0.236" x 0.630" (Philip Head Screw) Fastener Size

Additional Information	:	WBB300 Model
Color	:	Silver
Fastener Size	:	0.315" (Concrete Anchor), 1" (Bolt), 0.236" x 0.630" (Philip Head Screw)
Fastener Type	:	Hex Lag Screw, Concrete Anchor, Bolt, Clip Nut, Philip Head Screw
Finish	:	Powder Coated
Load Capacity	:	300 lbs
Material	:	14 Gauge Steel
Overall Depth	:	22 "
Overall Height	:	18 "
Overall Width	:	33-1/2 "
Series	:	Big Foot
Suitable For Use With	:	Mini-Split Condenser

RectorSeal Wall Condenser Bracket, Model: Big Foot, 300 lbs Load Capacity, 33-1/2" Overall Width, 22" Overall Depth, 18" Overall Height, 14 Gauge Steel, Hex Lag Screw, Concrete Anchor, Bolt, Clip Nut, Philip Head Screw Fastener Type, 0.315" (Concrete Anchor), 1" (Bolt), 0.236" x 0.630" (Philip Head Screw) Fastener Size, Powder Coated, Silver

Provides strong, secure wall mounting for mini-split condensers up to 300 lbs.Constructed from heavy-duty 14-gauge steel with a durable powder-coat finish for weather resistance.Features a sliding crossbar allowing adjustable mounting width from 9 3/4" to 31".Accommodates equipment depths from 10 1/2" to 16".Includes a built-in level to simplify installation.Supplied with mounting hardware, including lag screws and concrete anchors.
