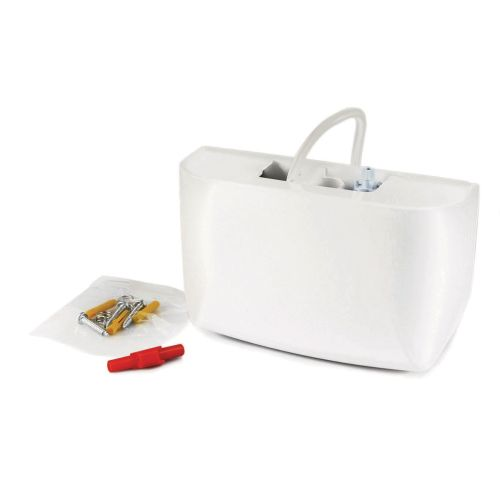

RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature

Amperage Rating	:	0.17 A
Color	:	White
Cord Size	:	3.25 '
Dimensions	:	7-1/8" L x 4-1/2" H x 2" W
Enclosure Type	:	IPX1
Flow Rate	:	174-192 GPM (0' Head), 72-96 GPM (33' Head)
Frequency Rating	:	50 Hz, 60 Hz
Housing Material	:	ABS
Maximum Feet of Head	:	33 '
Model	:	ASP-MW-UNI
Mounting Type	:	Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir)
Operating Temperature	:	104 °F (Water)
Power Rating	:	16 W
Series	:	Aspen Mini White
Shut-Off Head	:	50 ft
Suction Size	:	5/8" (Accepts Drain Hose)
Temperature Rating	:	104 deg F
Voltage Rating	:	100-250 V

RectorSeal Condensate Pump Kit, Model: Aspen Mini White, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature, 0.17 A, 3.25' Cord Length, 50 Hz, 60 Hz, 7-1/8" L x 4-1/2" H x 2" W Dimensions, IPX1, ABS, White

Mounts easily on the wall surface directly below the mini-split evaporator.Universal voltage compatibility (100-250V AC) simplifies wiring.Suitable for air conditioning systems up to 54,000 BTU.Operates quietly with a sound level of 21 dB(A).Snap-on cover and clip-out reservoir allow for straightforward filter maintenance.Includes an integrated 3A NC safety switch for overflow protection.Accepts standard 5/8" drain hose for connection to the evaporator.Features fully potted electronics for resistance to shock, vibration, and moisture.
