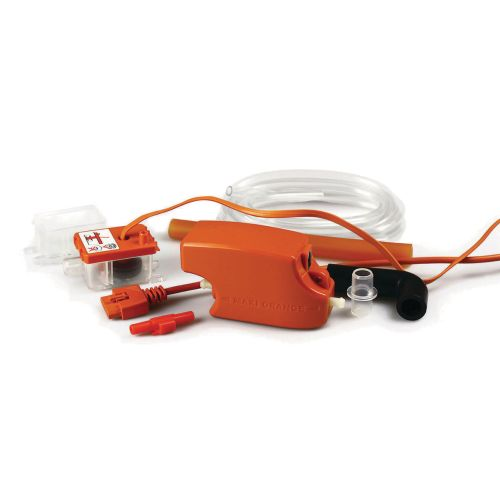

RectorSeal Aspen Orange ASPMAXOUNI Condensate Pump Kit, 49' Maximum Feet Of Head, 100-250 V, 0.15 GPM (0' Head), 0.025 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 16 W, ≤104 °F (Water) Operating Temperature

Amperage Rating	:	0.18 A
Capacity	:	157000 Btu/hr
Color	:	Orange
Cord Size	:	5 '
Dimensions	:	4-7/8" L x 2-5/8" H x 1-3/4" W
Discharge Size	:	1/4 "
Flow Rate	:	0.15 GPM (0' Head), 0.025 GPM (49' Head)
Housing Material	:	ABS
Maximum Feet of Head	:	49 '
Model	:	ASPMAXOUNI
Mounting Type	:	Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir)
Operating Temperature	:	104 °F (Water)
Phase	:	1
Power Rating	:	16 W
Series	:	Aspen Orange
Sound Level	:	35 dBA
Suction Size	:	5 ft
Temperature Rating	:	104 deg F
Voltage Rating	:	100-250 V

RectorSeal Condensate Pump Kit, Model: Aspen Orange, 49' Maximum Feet Of Head, 100-250 V, 0.15 GPM (0' Head), 0.025 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 16 W, ≤104 °F (Water) Operating Temperature, 1 Phase, 0.18 A, 5' Cord Length, 4-7/8" L x 2-5/8" H x 1-3/4" W Dimensions, ABS

Self-priming pump allows for flexible installation, including remote mounting above ceilings or inside lineset covers.Includes both pan mount and inline style reservoirs for versatile setup options.Features modular terminals for quick and easy electrical connections.Operates quietly at 35 dB(A).Fully potted electronics provide resistance to shock, vibration, moisture, and chemicals.Equipped with 3A normally closed dry contacts rated @ 5A inductive @ 230V AC for safety switch or alarm functionality.Suitable for removing condensate from ductless mini-split air conditioning systems.
