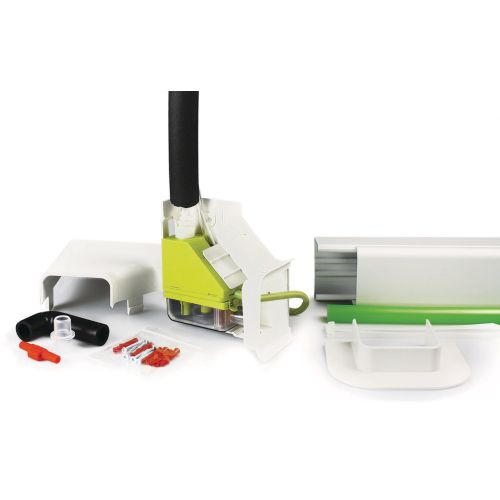

RectorSeal Maxi Lime ASPMAXLF230 Condensate Pump Kit w/ Fortress Duct, 49' Maximum Feet Of Head, 208/230 V, 0.15 GPM (0' Head), 0.05 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 5/8" Suction Size, 15 W

Amperage Rating	:	0.1 A; 3 A (Dry Contacts NC)
Color	:	Lime Green (Pump), White (Duct Cover)
Cord Size	:	6 '
Dimensions	:	3-3/4" L x 3-3/8" H x 1-5/8" W
Discharge Size	:	1/4 "
Flow Rate	:	0.15 GPM (0' Head), 0.05 GPM (49' Head)
Housing Material	:	ABS
Maximum Feet of Head	:	49 '
Model	:	ASPMAXLF230
Mounting Type	:	Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir)
Operating Temperature	:	104 °F (Water)
Phase	:	1
Power Rating	:	15 W
Series	:	Maxi Lime
Suction Size	:	5/8 "
Voltage Rating	:	208/230 V

RectorSeal Condensate Pump Kit w/ Fortress Duct, Model: Maxi Lime, 49' Maximum Feet Of Head, 208/230 V, 0.15 GPM (0' Head), 0.05 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 5/8" Suction Size, 15 W, ≤104 °F (Water) Operating Temperature, 1 Phase, 0.1 A; 3 A (Dry Contacts NC), 6' Cord Length, 3-3/4" L x 3-3/8" H x 1-5/8" W Dimensions, ABS, Lime Green (Pump), White (Duct Cover)

Designed for ductless mini-split systems up to 157,000 BTU/hr.Integrated pump and reservoir unit clips together, minimizing suction lift.Reversible design allows for left or right installation, includes Fortress lineset cover.Fully potted electronics ensure quiet operation (35 dB(A)) and resist moisture, shock, and vibration.Features 3A Normally Closed dry contacts rated @ 5A inductive at 230V AC for overflow safety.Delivers a maximum head lift of 49 feet.Transparent reservoir simplifies filter inspection and maintenance access.
