| Actual Size | : | 19-1/2 x 24-1/2 x 3/4 in |
| Air Flow Capacity | : | 1040 cfm |
| Average Arrestance | : | 95 % |
| Depth | : | 1 in |
| Filter Efficiency | : | 35 to 40 % |
| Final Resistance | : | 1 in-WG |
| Frame Material | : | Beverage Board |
| Height | : | 25 in |
| Initial Resistance | : | 0.27 in-WG |
| MERV | : | 8 |
| Media Area | : | 6 sq-ft |
| Media Material | : | White Un-Dyed Synthetic Fiber |
| Model | : | Hi-E 40 |
| Pleats per Linear Feet | : | 12 |
| Rated Velocity | : | 300 fpm |
| Temperature Rating | : | 225 deg F |
| Width | : | 20 in |

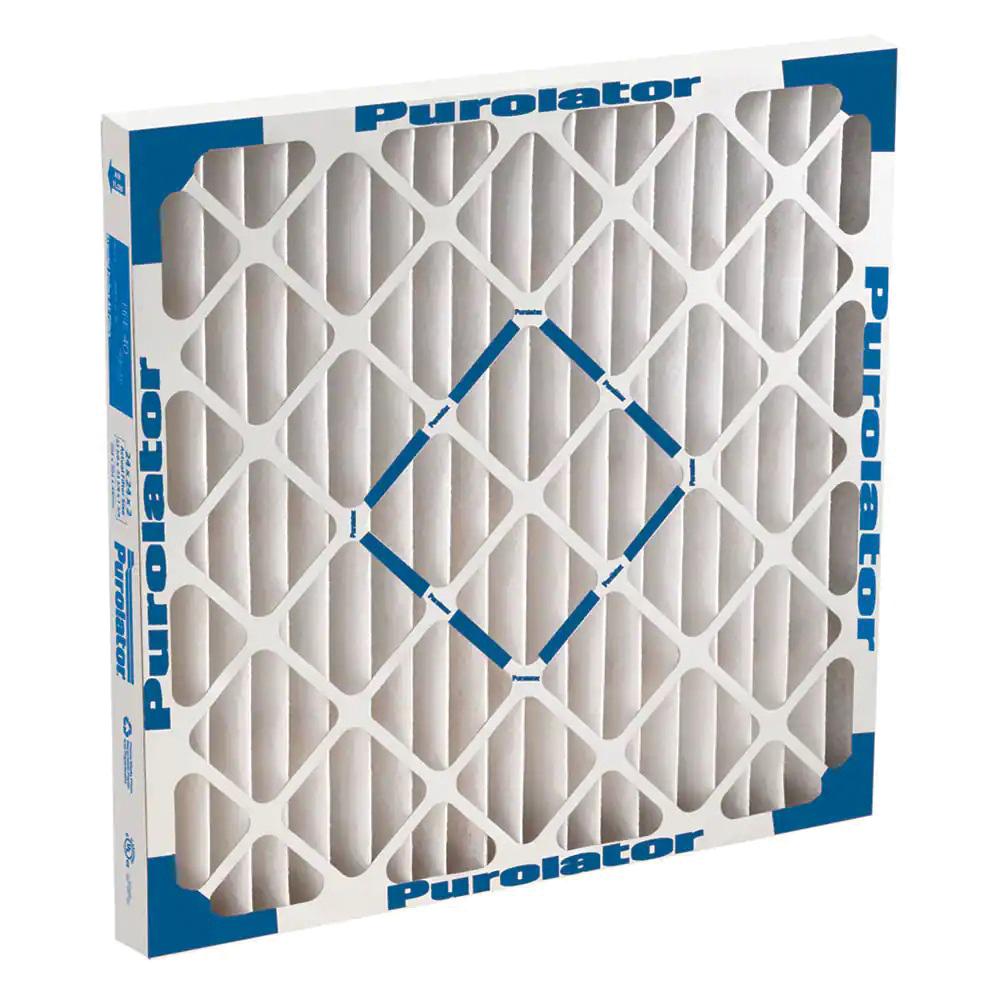

The Hi-E® 40 is a medium efficiency pleated filter, available in 1 in D and several standard face sizes to accommodate most system requirements. The 100% hydrophobic synthetic media provides 35 to 40% average efficiency and nearly 95% average arrestance. The Hi-E® 40 is effective as a stand alone filter or prefilter.
Purolator® Pleated Air Filter, Model: Hi-E 40, White Un-Dyed Synthetic Fiber Media, Beverage Board Frame, 20 in Width, 25 in Height, 1 in Depth, 8 MERV, 35 to 40 % Filter Efficiency, 6 sq-ft Media Area, 12 Pleats per Linear Feet, 300 fpm Rated Velocity, 0.27 in-WG Initial Resistance, 1 in-WG Final Resistance, 95 % Average Arrestance, 1040 cfm Air Flow Capacity, 19-1/2 x 24-1/2 x 3/4 in Actual, 225 deg F
- Filters are made with 100% synthetic fibers providing mechanical efficiency to achieve a MERV 8 3 8 performance
- Media has PVC acetate (PVA) adhesive that is not affected by mold or microbial growth
- Heavy-duty beverage board frame moisture-resistant, sturdy frame material stands upto rough handling and difficult service conditions, providing long service life
- Two piece frame construction double wall thickness around the outer edge and integral die-cut cross members provide strength and rigidity
- Water repellent adhesive used to bond the frame and media pack into a unitized assembly is highly water repellent
- Galvanized steel pleat support
- Stronger adhesive with more bonding points
- Lower initial resistance for energy saving
- Medium efficiency pleated filter
- Made in USA
