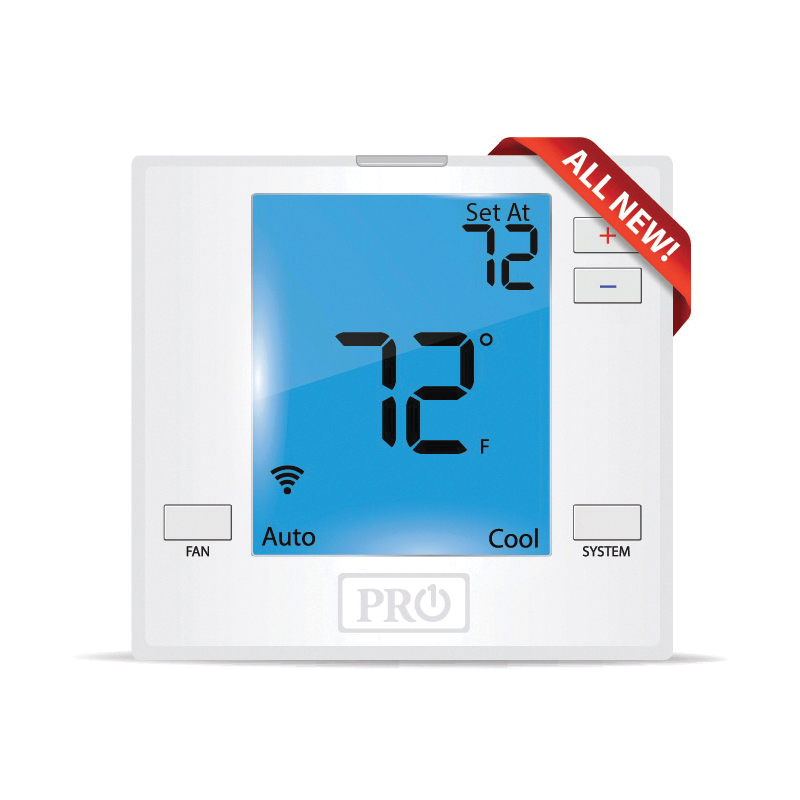

PRO1® T701I Programmable Thermostat, 18-30 V, 1.5 A, 7 Day Programmability, 1 Heat, 1 Cool
PRO1® T701I Programmable Thermostat, 18-30 V, 1.5 A, 7 Day Programmability, 1 Heat, 1 Cool
Manufacturer: Pro1 IAQ
Brand: PRO1®
Part #: 389841
MPN: T701I
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Accuracy | : | +/-1 deg F |
| Amperage Rating | : | 1.5 A |
| Changeover | : | Auto |
| Control Range | : | 44 to 90 deg F |
| Differential Temperature | : | 0.2 to 20 deg F |
| Dimensions | : | 4.4 in H x 4.7 in W x 1.1 in D |
| Display Type | : | 7 sq-in Blue Backlight |
| Frequency Rating | : | 50/60 Hz |
| Humidity Rating | : | 90 % |
| Mounting Type | : | Junction Box, Wall |
| Power Source | : | Hardwired |
| Programmability | : | 7 Day |
| Stages | : | 1 Heat, 1 Cool |
| Temperature Rating | : | 32 to 105 deg F |
| Terminal Designation | : | Rc, Rh, G, Y, C, O, B, W |
| Voltage Rating | : | 18-30 V |
PRO1® Programmable Thermostat, 18-30 V, 1.5 A, 50/60 Hz Frequency, Programmability: 7 Day, Changeover: Auto, Hardwired Power Source, 1 Heat, 1 Cool Stages, 7 sq-in Blue Backlight Display, 0.2 to 20 deg F Differential, 32 to 105 deg F, 90 % Humidity, +/-1 deg F Accuracy, Junction Box, Wall Mounting, Terminal Designation: Rc, Rh, G, Y, C, O, B, W, 44 to 90 deg F Control, Dimensions: 4.4 in H x 4.7 in W x 1.1 in D
- 7 sq. inch display
- Blue backlight
- Glow in the dark light button
- Electric or Gas configurable
- Seperate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- 24v power
- 5 year warranty
