| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Size 3 | : | 1/2 in |
| Connection Type 1 | : | Flared |
| Connection Type 2 | : | Flared |
| Connection Type 3 | : | Flared |
| Connection Type | : | Flared|Flared|Flared |
| Dimensions | : | 2.46 in L |
| Fitting Type | : | Flare Fitting |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 2800 psi |
| Temperature Rating | : | -65 to 250 deg F |
| Thread Size | : | 3/4-16 |
Parker's 45 deg flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.

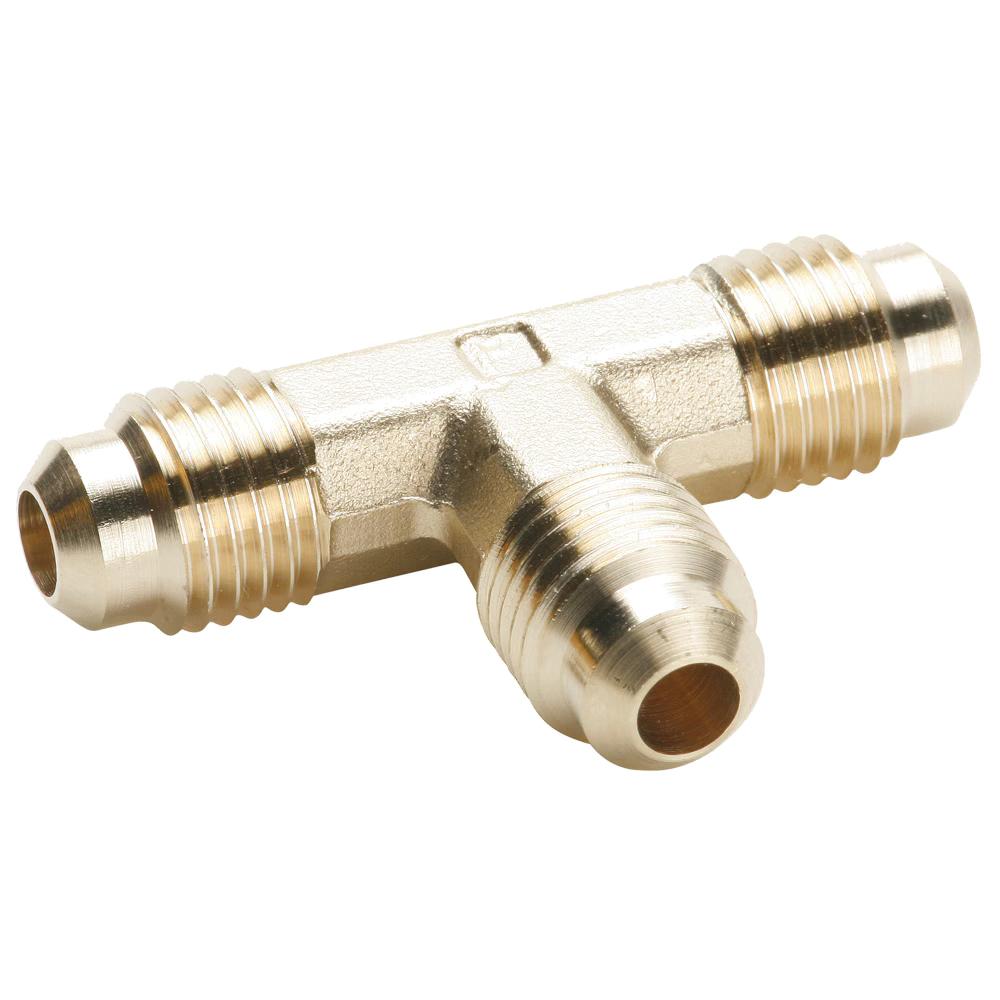

Parker® Union Tee, Flare Fitting, 1/2 in Connection Size 1, Connection Type 1: Flared, 1/2 in Connection Size 2, Connection Type 2: Flared, Connection Size 3: 1/2 in, Connection Type 3: Flared, Flared|Flared|Flared Connection, Brass, Material Construction: Brass, 3/4-16 Thread, 2.46 in L, 2800 psi, -65 to 250 deg F
- All brass construction
- Forged nuts for refrigeration applications
- Long nuts for vibration
- U.L. listed for flammable liquids
- Functional requirements of SAE J512 & SAE J513
- Economical
- Metal-to-metal seal
- Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
