| Amperage Rating | : | 15 A |
| BTU Rating | : | 9000 Btu/hr Cooling, 12000 Btu/hr Heating |
| CFM Rating | : | 455 cfm |
| Compressor Type | : | DC Twin Rotary |
| Connection Type | : | Flared |
| Dimensions | : | 32 in H x 32 in W x 32 in D |
| Drive Type | : | Direct DC Brushless Motor |
| EER Rating | : | 13 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 10.3, 7.4 |
| Liquid Line Size | : | 3/8 in |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Power Rating | : | 690 W Cooling, 1120 W Heating |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | Variable |
| SEER Rating | : | 23 |
| Sound Level | : | 47 dBA High |
| Suction Line Size | : | 1/4 in |
| Voltage Rating | : | 208/230 VAC |

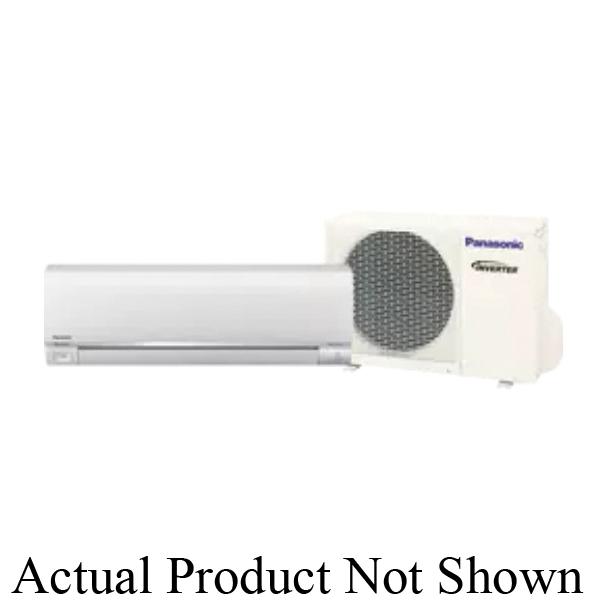

The Panasonic exteriors E Series is a deluxe line of wall-mounted single zone heating and cooling mini-split air conditioners. With energy efficiency and -5 deg F heating operation, these models are often selected for rebate programs and cold climate solutions. ECONAVI sensor technology manages energy efficiency and comfort by continually scanning for occupancy and vacancy.
Panasonic Outdoor Single E Single Split System Heat Pump, 208/230 VAC, 15 A, 690 W Cooling, 1120 W Heating, 60 Hz, 1 ph Phase, Variable Rotational Speed, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 455 cfm, 13 EER Rating, 23 SEER, 10.3, 7.4 HSPF, Flared Connection, DC Twin Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 1/4 in Suction Line, 15 A Fuse Rating, Direct DC Brushless Motor Drive, 47 dBA High Sound Level, Wall Mounting, 32 in H x 32 in W x 32 in D
