| Amperage Rating | : | 6/1.25 to 6.3 A Cooling, 6.9/1.25 to 7.3 A Heating |
| BTU Rating | : | 11900 Btu/hr Cooling, 13600 Btu/hr Heating |
| CFM Rating | : | 1095 cfm |
| Compressor Type | : | DC Twin Rotary |
| Connection Type | : | Flared |
| Dimensions | : | 13-3/8 in H x 27-3/16 in W x 27-3/16 in D |
| Drive Type | : | Direct DC Brushless Motor |
| EER Rating | : | 10.3 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 8.5, 6.7 |
| Liquid Line Size | : | 1/4 in |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Power Rating | : | 40 W |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | Variable |
| SEER Rating | : | 18 |
| Sound Level | : | 66 dBA High |
| Suction Line Size | : | 1/2 in |
| Voltage Rating | : | 208/230 VAC |

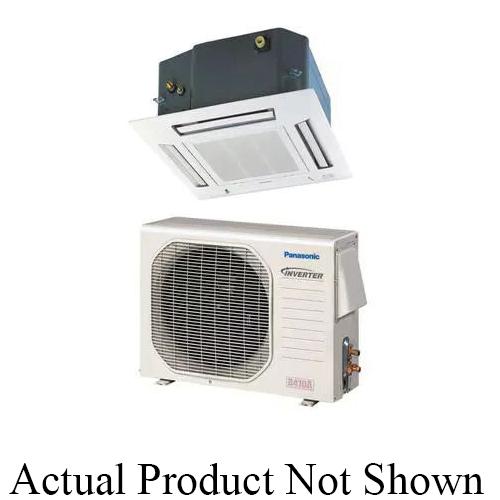

Panasonic four-way ceiling cassette heating and cooling single zone mini-split air conditioners. Provides four directional air flow from a flush to ceiling inset units. Indoor unit operates with single and multi-zone outdoor units.
Panasonic Outdoor Single Ceiling Cassette Cool and Heat Pump, 208/230 VAC, 6/1.25 to 6.3 A Cooling, 6.9/1.25 to 7.3 A Heating, 40 W, 60 Hz, 1 ph Phase, Variable Rotational Speed, 11900 Btu/hr Cooling, 13600 Btu/hr Heating, 1095 cfm, 10.3 EER Rating, 18 SEER, 8.5, 6.7 HSPF, Flared Connection, DC Twin Rotary Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 15 A Fuse Rating, Direct DC Brushless Motor Drive, 66 dBA High Sound Level, Wall Mounting, 13-3/8 in H x 27-3/16 in W x 27-3/16 in D
