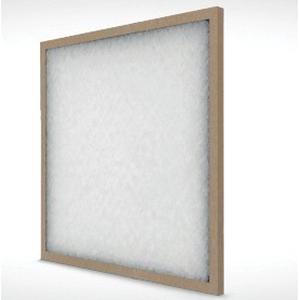

PAMLICO AIR™ SelectF Series 12104-012025 Air Filter, Disposable Panel Filter, 20 in W, 25 in H, 1 in D

PAMLICO AIR™ SelectF Series 12104-012025 Air Filter, Disposable Panel Filter, 20 in W, 25 in H, 1 in D

Brand: PAMLICO AIR™
Part #: 79975
Customer Part #:
Actual Size      :      24-3/4 in H x 19-3/4 in W x 3/4 in D
Air Flow Capacity      :      1042 cfm
Depth      :      1 in
Domestic/Import      :      Domestic
Filter Type      :      Disposable Panel
Height      :      25 in
Initial Resistance      :      0.05 in-WG
Media Area      :      3.32 sq-ft
Media Material      :      Fiberglass
Rated Velocity      :      300 fpm
Series      :      SelectF Series
Temperature Rating      :      150 deg F
Width      :      20 in

MANN+HUMMEL's SelectF air filters are cost-effective and efficient disposable panel filters. These filters were created specifically for commercial and industrial applications requiring a light-medium workload. The SelectF features a durable construction Kraft board channel frame. These easy-to-install filters are environmentally friendly and made in the USA. MANN+HUMMEL offers these disposable panel filters with fiberglass media in a moisture-resistant, Kraft board channel frame. All SelectF filters are one inch deep. The metal-free design allows for easy installation and environmentally friendly disposal. The SelectF air filters should be used in applications that require light-medium duty filtration and should follow a change-out schedule of every 30 days. Applications that would benefit from the SelectF air filters include schools, hotels, commercial office buildings, hospitals, pharmaceutical plants, laboratories, and other facilities. The SelectF panel filters were engineered to protect your HVAC equipment in light-medium applications.

PAMLICO AIR™ Air Filter, SelectF Series, Disposable Panel Filter, Fiberglass Media, 20 in Width, 25 in Height, 1 in Depth, 3.32 sq-ft Media Area, 300 fpm Velocity, 0.05 in-WG Initial Resistance, 1042 cfm Air Flow Capacity, 24-3/4 in H x 19-3/4 in W x 3/4 in D Actual, 150 deg F, Domestic/Import: Domestic

  • Durable Kraft board channel frame
  • Environmentally friendly
  • Available in 1"
  • Max operating temp: 150 deg F
  • Made in the USA
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/PAMLICO_AIR_11104011224_Catalog.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/PAMLICO_AIR_12104011020_Specification_Sheet.pdf
