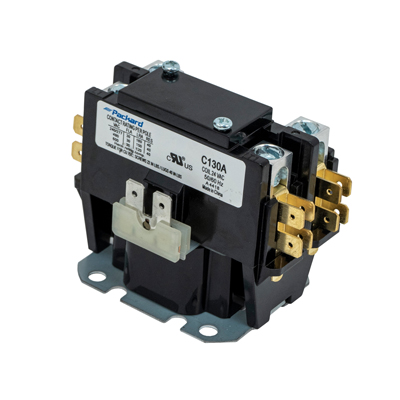

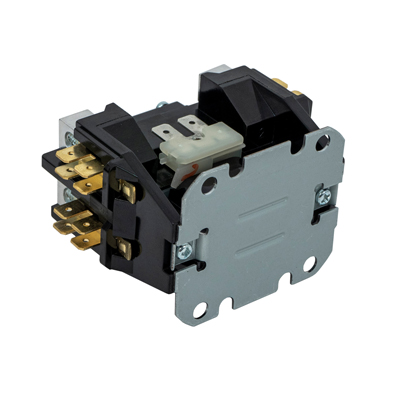

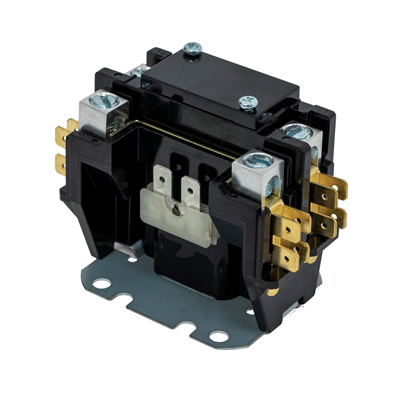

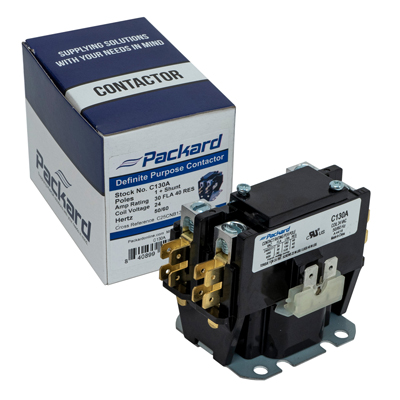

Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)
Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)
Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)
Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)
Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)
Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)

Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)

Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)

Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 385807
MPN: C130A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      30 A
Coil Voltage      :      24 VAC
Connection Type      :      Box Lug, Spade Terminal
Contact Configuration      :      1NO
Contact Rating      :      30 A
Frequency Rating      :      50 Hz, 60 Hz
Full Load Current Rating      :      30 A
Height      :      2.64 "
Insulation Class      :      Class B
Locked Rotor Rating      :      180 A (240 V), 150 A (480 V), 120 A (600 V)
Model      :      C130A
Mounting Type      :      Foot Mount
Number of Poles      :      1 (With Shunt)
Phase      :      1
Resistive Amperage      :      40 A
Terminal Type      :      Box Lug, Spade Terminal, Quick Connect
Voltage Rating      :      600 VAC

Packard Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V), Box Lug, Spade Terminal Connection Type, Foot Mount, 1NO, 50 Hz, 60 Hz, 2.64" Height, 2.17 In Width, Class B

Rated for 30 Amps inductive (40 Amps resistive) at up to 600 VAC.Single pole configuration with shunt, operated by a 24 VAC coil (50/60 Hz).Features Class B coil insulation for enhanced durability.Includes box lugs, spade terminals, and covers for convenient installation.Versatile foot mount allows for easy placement and replacement.UL Recognized and CSA Certified for safety compliance.Designed with dust-free internal construction.
