| Amperage Rating | : | 1.8 A |
| CFM Rating | : | 1397 cfm |
| Configuration | : | Up Flow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling Capacity | : | 36000 Btu |

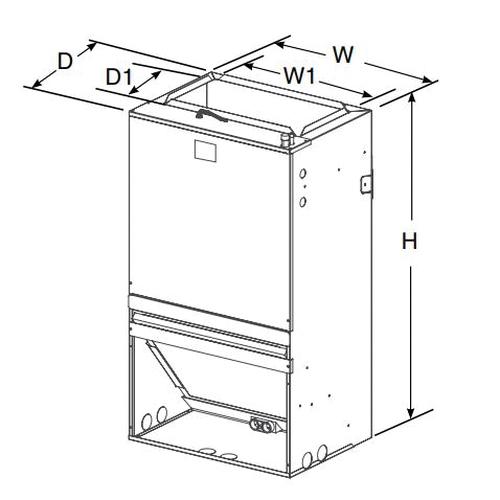

| Dimensions | : | 39-1/2 in H x 22 in W x 19 in D |
| Filter Size | : | 20 x 20 in |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/2 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | PSC |
| Mounting Type | : | Wall |
| Nominal Capacity | : | 3 ton |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1075 rpm |
| Series | : | JMM4 Series |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |
OXBOX™ Air Handler, JMM4 Series, 3 ton Nominal Capacity, 36000 Btu Cooling Capacity, 208/230 V, 1.8 A, 1/2 hp, 60 Hz, 1 ph Phase, 1075 rpm Rotational Speed, 1397 cfm, Up Flow, FNPT Connection, R-410A Refrigerant, 15 A Fuse Rating, 3/4 in Connection, 3/8 in Liquid Line, 3/4 in Suction Line, 20 x 20 in Filter, 3 Speed, PSC Motor, Wall Mounting, Steel, Finish: Painted, 39-1/2 in H x 22 in W x 19 in D
- Front or bottom return air
- Painted finish on galvanized steel
- Sturdy polycarbonate drain pans
- The JMM4 wall mount air handler a has factory installed drain pan and is shipped for upflow applications only
- 208/230 - VAC operation
- Multi-speed direct drive blower
- PSC motor
- Stud or wall mounting tabs
- Fully insulated cabinet
- 3/4" NPT primary and secondary drains
- All - aluminum tubes & fins
