| AFUE Rating % | : | 81 |
| AFUE Rating | : | 81 % |
| Amperage Rating | : | 23 A |
| Capacity (BtuH) | : | 36000 |
| Compressor LRA | : | 72 |
| Compressor Power Rating | : | 208/230 V/1 Phase/60 Hz |
| Compressor RLA | : | 14 |
| Compressor Stages | : | 1 |
| Compressor Type | : | Rotary |
| Configuration | : | Convertible |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Crated Dimensions (H X W X D) | : | 50-11/16 x 46-13/16 x 35-1/16 in |
| Decibel Rating | : | 79 dB |
| Dimensions | : | 46-13/16 in H x 50-11/16 in W x 35-1/16 in D |
| Drain Connection | : | 3/4 in |
| Factory Installed Options | : | Yes |
| Frequency Rating | : | 60 Hz |
| Heating Capacity | : | 90000 BTUH |
| Heating Input (High) BTU | : | 90000 |
| Heating Output (High) BTU | : | 72000 |
| Ignition Type | : | Direct Spark |
| Indoor Coil-FPI | : | 17 |
| Indoor Coil-Face Area sq-ft | : | 3.96 |
| Indoor Coil-Rows | : | 2 |
| Indoor Coil-Type | : | Aluminum |
| Indoor Fan HP | : | 1/2 |
| Indoor Fan-Drive | : | Direct |
| Indoor Unit: Fan Motor FLA | : | 3.56 |
| Indoor Unit: Fan Motor Speed RPM | : | 1050 |
| Indoor Unit: Fan Motor Type | : | ECM |
| Input BTU Rating | : | 90000 Btu/hr |
| Level | : | Standard NOx (<40 Ng/J) |
| Line Size - Suction (In) | : | 1/2 |
| MCA | : | 23 |
| MOCP | : | 35 |
| Major Design Sequence | : | E |
| Material | : | Steel |
| Max SEER2 | : | 13.4 |
| Min SEER2 | : | 13.4 |
| Minor Design Sequence | : | A |
| Model Number | : | J4PG4 |
| Model | : | J4PG4 |
| Motor Type | : | PSC |
| Nominal Capacity (Ton) | : | 3 |
| Number of Compressor | : | 1 |
| Number of Indoor Fan Speed | : | 5 |
| Number of Outdoor Fan Motor | : | 1 |
| Number of Outdoor Fan Used | : | 1 |
| Number of Speeds | : | 1 |
| Number of Stages | : | 1 |
| Outdoor Coil-FPI | : | 21 |
| Outdoor Coil-Face Area sq-ft | : | 6.99 |
| Outdoor Coil-Rows | : | 1 |
| Outdoor Coil-Tube Size (In) | : | 20/32 |
| Outdoor Coil-Type | : | Micro Channel |
| Outdoor Fan - Diameter In | : | 23.6 |
| Outdoor Fan - Drive | : | AC |
| Outdoor Fan - HP | : | 1/6 |
| Outdoor Fan - Number of Speeds | : | 1 |
| Outdoor Fan - Type | : | PSC |
| Outdoor Unit: Fan Diameter Inch | : | 23.6 |
| Outdoor Unit: Fan Motor FLA | : | 1 |
| Output BTU Rating | : | 72000 Btu/hr |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13.4 |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 208/230 V |

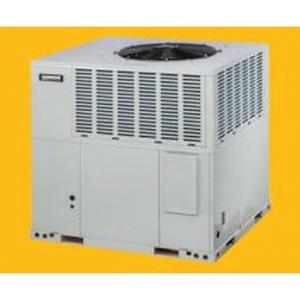

The Oxbox line of heating and cooling products offer you flexible and affordable options for your HVAC equipment needs. When space is at a premium, Oxbox packaged units consolidate your heating and cooling equipment within a single durable steel cabinet. Our models are compatible with a wide variety of homes, including flexible configurations for an air conditioner, heat pump, air handler, or furnaces.
OXBOX™ Packaged Gas/Electric Unit, Model: J4PG4, Input BTU Rating: 90000 Btu/hr, Output BTU Rating: 72000 Btu/hr, 208/230 V, 23 A, 60 Hz, 1 ph Phase, Rotary Compressor, Convertible, 13.4 SEER, 81 % AFUE Rating, Tonnage: 3 ton, 1 Stages, R-410A Refrigerant, 79 dB Decibel, Direct Spark Ignition, 1/2 in Connection, NPT Connection, 3/4 in Drain Connection, Steel, 46-13/16 in H x 50-11/16 in W x 35-1/16 in D
- Oxbox Gas/Electric Package Units are DOE 2023 approved and available in 13.4 SEER2 (R-410A) models (2T - 5T)
- Architecturally compatible, anti-rust steel cabinets, 500-hour salt spray tested
- Internal safeguards protect compressors against high pressure, low pressure, coil temperature, and power surge (heat pump only)
- High efficiency compressors operate smoothly, quietly, and consistently
- AHRI Certified and ETL Listed
- Auxiliary heaters available in 5kw - 20kw
