| Amperage Rating | : | 1.5 A |
| BTUH | : | 18000 |
| Blower Motor Type | : | PSC |
| CFM Rating | : | 980 cfm |
| Capacity (BtuH) | : | 18000 |
| Coil Rows | : | 4 |
| Configuration | : | Down Flow, Horizontal Left, Horizontal Right, Up Flow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling Capacity | : | 18000 Btu/hr |
| Dimensions | : | 41.38 in H x 18.13 in W x 20.5 in D |
| Drain Connection Size (In) | : | 3/4 NPT |
| Duct Size (In) | : | 16 x 10.31 |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| FPI | : | 17 |
| Fan Drive | : | Direct |
| Fan Motor FLA | : | 1.5 |
| Fan Type | : | Centrifugal |
| Filter Furnished | : | No |
| Filter Hi Vel. (No.-Size-Thk.) | : | 1 - 16 x 18 - 1 |
| Filter Size (In) | : | 16 x 20 x 1 |
| Filter Size | : | 16 x 18 in |
| Filter Type Recommended | : | Throwaway |
| Finish | : | Painted |
| Footprint Depth | : | 20.5 |
| Footprint Width | : | 18.125 in |
| Frequency Rating | : | 60 Hz |
| Function | : | No Secondary Function |
| HP Rating | : | 1/5 hp |
| Indoor Coil-Face Area sq-ft | : | 2.99 |
| Indoor Coil-Type | : | Plate Fin |
| Indoor Fan Type | : | Centrifugal |
| Indoor Fan-Dia x W in | : | 10-5/8 x 10-3/4 |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 3/4 |
| Liquid Line Size | : | 3/8 in |
| MCA | : | 0.68 |
| MOP | : | 15 |
| Major Design Sequence | : | E |
| Material | : | Steel |
| Minor Design Sequence | : | A |
| Model Number | : | J4AH4P |
| Model-Phase | : | 1 |
| Motor (RPM) | : | 755 |
| Motor HP | : | 1/5 |
| Motor Type | : | PSC |
| Nominal Capacity (Ton) | : | 1.5 |
| Nominal Capacity BTUs | : | 18000 |
| Nominal Capacity | : | 1.5 ton |
| Number of Fan Motors | : | 1 |
| Number of Fans | : | 1 |
| Number of Phase | : | 1 |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Type | : | Air Handler |
| Refrigerant Control | : | Orifice |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 755 rpm |
| SEER Rating | : | 14.3 |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 200/230 V |
The Oxbox line of heating and cooling products offer you flexible and affordable options for your HVAC equipment needs. Your air handler's job is to circulate warm or cool air through your home year-round-and that's a task Oxbox handles with ease. Our air handlers are designed with multiple installation configurations, giving you a variety of options to fit any existing space.

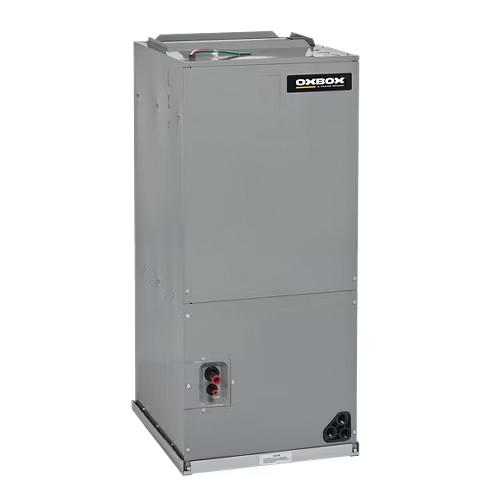

OXBOX™ Air Handler, 1.5 ton Nominal Capacity, 18000 Btu/hr Cooling Capacity, 200/230 V, 1.5 A, 1/5 hp, 60 Hz, 1 ph Phase, 755 rpm Rotational Speed, 980 cfm, Down Flow, Horizontal Left, Horizontal Right, Up Flow, 14.3 SEER, FNPT Connection, R-410A Refrigerant, 3/4 in Connection, 3/8 in Liquid Line, 3/4 in Suction Line, 16 x 18 in Filter, 3 Speed, PSC Motor, Steel, Finish: Painted, 41.38 in H x 18.13 in W x 20.5 in D
- Oxbox air handlers are adaptable to 13.4, 14.3 and 15.2 SEER2 models and available with a PSC or ECM motor
- All-aluminum coils
- ECM models achieve higher ratings
- Oxbox air handlers offer multiple airflow designs for convertibility: (Vertical upflow/downflow & horizontal left or right)
- Painted, galvanized steel cabinets resist rust
- Dual drainage spouts offer flexibility in installation options
- Removable front panel and blower and coil assemblies that slide out allow easy access for maintenance and troubleshooting
- Auxiliary heaters available in 5kw-20kw: JAYHTR1A05BKRA, JAYHTR1A08BKRA, JAYHTR1A10BKRA, JAYHTR1A15BKRA, JAYHTR1A20BKRA
