| Amperage Rating | : | 21 A |
| BTUH | : | 36000 |
| CFM Rating | : | 3100 cfm |
| Capacity (BtuH) | : | 36000 |
| Charging Specification Subcooling | : | 9 deg F |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 75 |
| Compressor Power Rating | : | 208/230 V/1 Phase/60 Hz |
| Compressor RLA | : | 15 |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| Cooling Capacity | : | 36000 Btu |
| Dimensions | : | 24.93 in H x 29.14 in W x 29.14 in D |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| Face Area | : | 13.6 sq-ft |
| Factory Charged | : | Yes |
| Factory Installed Start Components | : | No |
| Fan Motor FLA | : | 2.2 |
| Finish | : | Painted |
| Fins per Inch | : | 21 |
| Frequency (Hz) | : | 60 Hz |
| Frequency Rating | : | 60 Hz |
| Function | : | No Secondary Function |
| HP Rating | : | 1/3 hp |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 3/4 |
| Liquid Line Size | : | 3/8 in |
| MCA | : | 21 |
| MOCP | : | 35 |
| Major Design Sequence | : | E |
| Material | : | Steel |
| Max Fuse | : | 35 A |
| Max SEER2 | : | 15.2 |
| Min SEER2 | : | 14.3 |
| Minor Design Sequence | : | A |
| Model Number | : | J4AC5 |
| Motor (RPM) | : | 930 |
| Motor Power Rating | : | 208/230 V/1 Phase/60 Hz |
| Motor Type | : | ECM |
| Nominal Capacity (Ton) | : | 3 |
| Nominal Capacity BTU Rating | : | 36000 |
| Nominal Capacity | : | 3 ton |
| Number of Compressor | : | 1 |
| Number of Outdoor Fan Motor | : | 1 |
| Number of Outdoor Fan Used | : | 1 |
| Number of Phase | : | 1 |
| Number of Speeds | : | 1 |
| Number of Stages | : | 1 |
| Outdoor Coil-FPI | : | 21 |
| Outdoor Coil-Face Area sq-ft | : | 13.6 |
| Outdoor Coil-Rows | : | 1 |
| Outdoor Coil-Tube Size (In) | : | 3/16 |
| Outdoor Coil-Type | : | Plate Fin |
| Outdoor Fan - CFM | : | 3100 |
| Outdoor Fan - Diameter In | : | 23.625 |
| Outdoor Fan - Drive | : | External |
| Outdoor Fan - HP | : | 1/3 |
| Outdoor Fan - Number of Speeds | : | 10 |
| Outdoor Fan - Type | : | Propeller |
| Phase | : | 1 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 930 rpm |
| SEER Rating | : | 14.3 |
| Series | : | J4AC5 Series |
| Sound Level | : | 62 dB |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |
The Oxbox DOE 2023 compliant line of cooling products offer you flexible and affordable options for your HVAC equipment needs. Oxbox air conditioners have been tested to perform even in the hottest climates, with equipment that's quiet, dependable, and affordable.

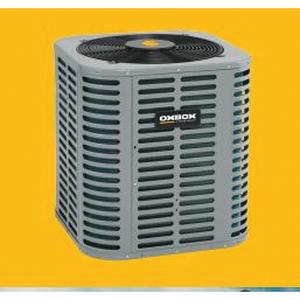

OXBOX™ Air Conditioner, J4AC5 Series, 3 ton Nominal Capacity, 36000 Btu Cooling Capacity, 208/230 V, 21 A, 1/3 hp, 930 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 3100 cfm, 14.3 SEER, 1 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 62 dB Sound Level, 13.6 sq-ft Face Area, ECM Motor, 21 Fins per Inch, Steel, Finish: Painted, 24.93 in H x 29.14 in W x 29.14 in D
- Oxbox units are available in 13.4 SEER2, and 14.3 SEER2
- Achieves a 15.2 SEER2 rating by matching the J4AC5 outdoor unit with a high efficiency Oxbox indoor unit
- 1.5 - 5.0 ton models available
- Painted, galvanized steel cabinets that resist rust and stand up to weather
- The compact design and small footprint are ideal for homeowners with limited yard space
- Units operate quietly, with a maximum sound level of 66 db
