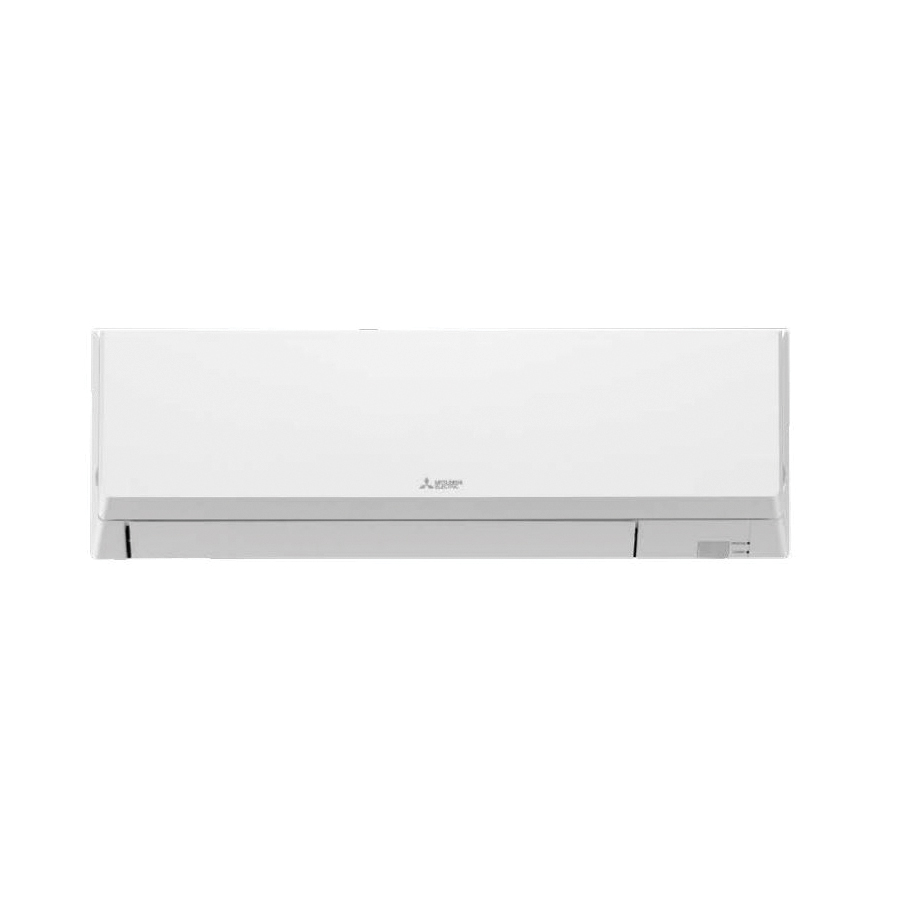

Mitsubishi Electric Trane® PKA-AL12NL Indoor Mini-Split Heat Pump Unit, 208/230 V, 4300 to 12200 Btu/hr BTU, 1 ph

BTU Rating	:	4300 to 12200 Btu/hr
CFM Rating	:	215 cfm, 255 cfm, 320 cfm, 375 cfm
Color	:	White
Connection Type	:	Flared
Drive Type	:	Inverter
EER Rating	:	14.8
Frequency Rating	:	60 Hz
Fuse Rating	:	20 A
Mounting Type	:	Wall
Overall Height	:	11-25/32 in
Overall Length	:	9-11/32 in
Overall Width	:	35-11/32 in
Phase	:	1 ph
Power Rating	:	830 W
SEER Rating	:	21.1
Series	:	PKA Series
Sound Level	:	43 dBA
Temperature Rating	:	66 to 90 deg F
Voltage Rating	:	208/230 V

Mitsubishi Electric Trane® Indoor Mini-Split Heat Pump Unit, Series: PKA, 208/230 V, 830 W, 60 Hz, 1 ph, 4300 to 12200 Btu/hr, 215 cfm, 255 cfm, 320 cfm, 375 cfm, 14.8 EER Rating, 21.1 SEER, Flared Connection, 20 A Fuse Rating, Inverter Drive, 43 dBA Sound Level, Wall Mounting, White, 66 to 90 deg F, 9-11/32 in Overall Length, 35-11/32 in Overall Width, 11-25/32 in Overall Height

Auto fan speed mode: Automatic adjustment of fan speedIdeal PKA spaces: Ideal for spaces such as server rooms, daycare centers, classrooms, churches, small offices, and moreLight commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllersSimple installationSingle-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.Sleek, compact designUp and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal vanes.Vane settings: Vane setting for air flow direction control
