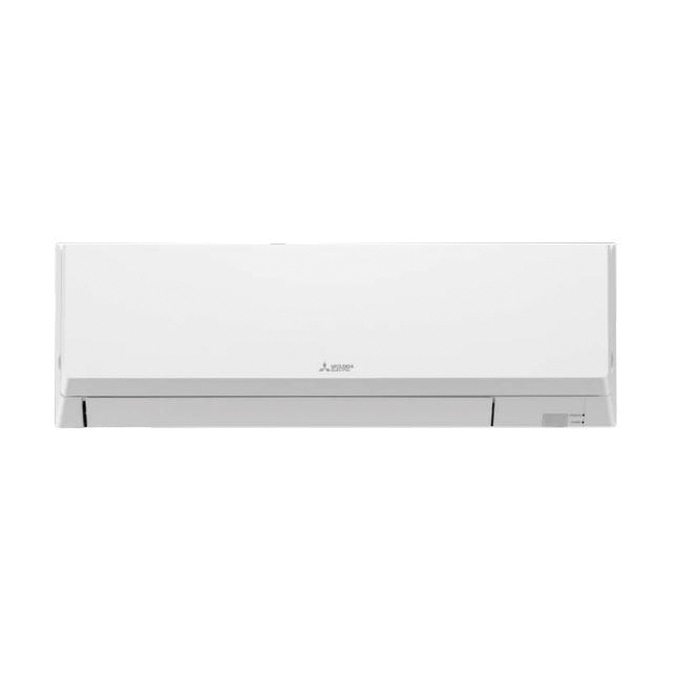

Mitsubishi Electric Trane® PKA-AK24NL Indoor Mini-Split Heat Pump Unit, 208/230 V, 10100 to 24500 Btu/hr BTU

BTU Rating	:	10100 to 24500 Btu/hr
CFM Rating	:	635 cfm, 705 cfm, 775 cfm
Color	:	White
Connection Type	:	Flared
Drive Type	:	Inverter
EER Rating	:	12
Frequency Rating	:	60 Hz
Fuse Rating	:	25 A
Mounting Type	:	Wall
Overall Height	:	14-3/8 in
Overall Length	:	11-5/8 in
Overall Width	:	46-1/16 in
Phase	:	1 ph
Power Rating	:	2050 W
SEER Rating	:	21.1
Series	:	PKA Series
Sound Level	:	45 dBA
Temperature Rating	:	66 to 90 deg F
Voltage Rating	:	208/230 V

Mitsubishi Electric Trane® Indoor Mini-Split Heat Pump Unit, Series: PKA, 208/230 V, 2050 W, 60 Hz, 1 ph, 10100 to 24500 Btu/hr, 635 cfm, 705 cfm, 775 cfm, 12 EER Rating, 21.1 SEER, Flared Connection, 25 A Fuse Rating, Inverter Drive, 45 dBA Sound Level, Wall Mounting, White, 66 to 90 deg F, 11-5/8 in Overall Length, 46-1/16 in Overall Width, 14-3/8 in Overall Height

Auto fan speed mode: Automatic adjustment of fan speedIdeal PKA spaces: Ideal for spaces such as server rooms, daycare centers, classrooms, churches, small offices, and moreLight commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllersSimple installationSingle-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.Sleek, compact designUp and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontalvanes.Vane settings: Vane setting for air flow direction control
