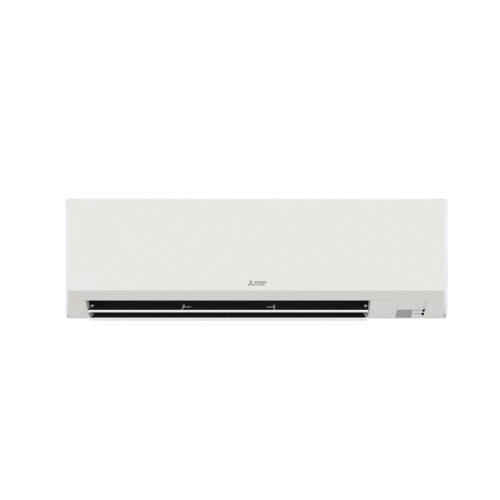

Mitsubishi Electric PKA-A12LA1 Indoor Unit, 208 - 230 V, 12000 Btu/hr BTU, 1 ph -Phase

BTU Rating	:	12000 Btu/hr
CFM Rating	:	265 to 385 cfm Dry Cooling, 215 to 375 cfm Wet Cooling, 365 to 385 cfm Dry Heating
Color	:	Ivory
Compatible Outdoor Unit Model	:	PUY-A12NKA7
Connection Type	:	Flared
Cooling at 95F: Maximum Capacity (BTUH)	:	4400
Cooling at 95F: Maximum Power Input (W)	:	900
Cooling at 95F: Moisture Removal (Pints/h)	:	2.7
Cooling at 95F: Power Factor (%)	:	92.5/92.5 (208 V/230 V)
Cooling at 95F: Rated Capacity (BTUH)	:	12000
Cooling at 95F: Rated Power Input (W)	:	900
Cooling at 95F: Sensible Heat Factor (SHF)	:	0.88
EER Rating	:	13.3
Efficiency: EER2	:	13.3
Efficiency: Energy Star Certified	:	Yes
Efficiency: SEER2	:	21.3
Electrical Communication Voltage S2-S3 (VDC)	:	12/24 V
Electrical Power Supply Voltage S1-S2 (VAC)	:	208/230 V
Finish	:	Munsell
Frequency Rating	:	60 Hz
Fuse Rating	:	15 A
Guaranteed Operating Voltage Range (VAC)	:	198/253 V
Indoor Unit: Airflow Rate at Cooling (Dry) (CFM)	:	265-290-325-385
Indoor Unit: Airflow Rate at Cooling (Wet) (CFM)	:	215-255-320-375
Indoor Unit: Airflow Rate at Heating (Dry) (CFM)	:	265-290-325-385
Indoor Unit: Condensate Lift Mechanism	:	Optional Accessory
Indoor Unit: Cooling Intake Air Temp Max/Min deg F	:	90 DB, 73 WB / 66 DB, 59 WB
Indoor Unit: Drain Pipe Size Inch (mm)	:	5/8 (16)
Indoor Unit: External Finish Color	:	Munsell 3Y 7.8/1.1 Ivory
Indoor Unit: Fan Motor FLA	:	0.19
Indoor Unit: Fan Motor Output (W)	:	30
Indoor Unit: MCA	:	1
Indoor Unit: Power Supply	:	Indoor Unit is Powered by the Outdoor Unit
Indoor Unit: Remote Controller Included	:	No
Indoor Unit: Sound Pressure Level Cooling dB[A]	:	34 - 39 - 44 - 48
Indoor Unit: Sound Pressure Level Heating dB[A]	:	34 - 37 - 40 - 43
Model Number	:	PKA-A
Mounting Type	:	Wall
Overall Height	:	11-25/32 in
Overall Length	:	9-11/32 in
Overall Width	:	35-23/64 in
Phase	:	1 ph
Piping: Liquid Connection Size OD. Inch (mm)	:	1/4 (6.35)
Piping: Max. Number of Bends	:	15
Piping: Max. Piping Height Difference Feet (m)	:	100 (30)
Piping: Max. Piping Length Feet (m)	:	165 ft (50 m)
Piping: Vapor Connection Size OD. Inch (mm)	:	1/2 (12.7)
Power Rating	:	900 W Cooling
Power Supply	:	208/230 V/1 Phase/60 Hz
Refrigerant Data: Type	:	R-410A

Mitsubishi Electric Indoor Unit, 208 - 230 V, 900 W Cooling, 60 Hz, 1 ph Phase, 12000 Btu/hr, 265 to 385 cfm Dry Cooling, 215 to 375 cfm Wet Cooling, 365 to 385 cfm Dry Heating, 13.3 EER Rating, 21.3 SEER, Flared Connection, 15 A Fuse Rating, 34 to 48 dBA Cooling, 34 to 43 dBA Heating Sound Level, Wall Mounting, Finish: Munsell, Ivory, 66 to 90 deg F, 9-11/32 in Overall Length, 35-23/64 in Overall Width, 11-25/32 in Overall Height

Selectable high sensible vs high latent capacity modeSleek, compact designSimple installationAirflow direction controlAuto fan modeSuitable for: server rooms, daycare centers, classrooms, churches, small offices, and more
