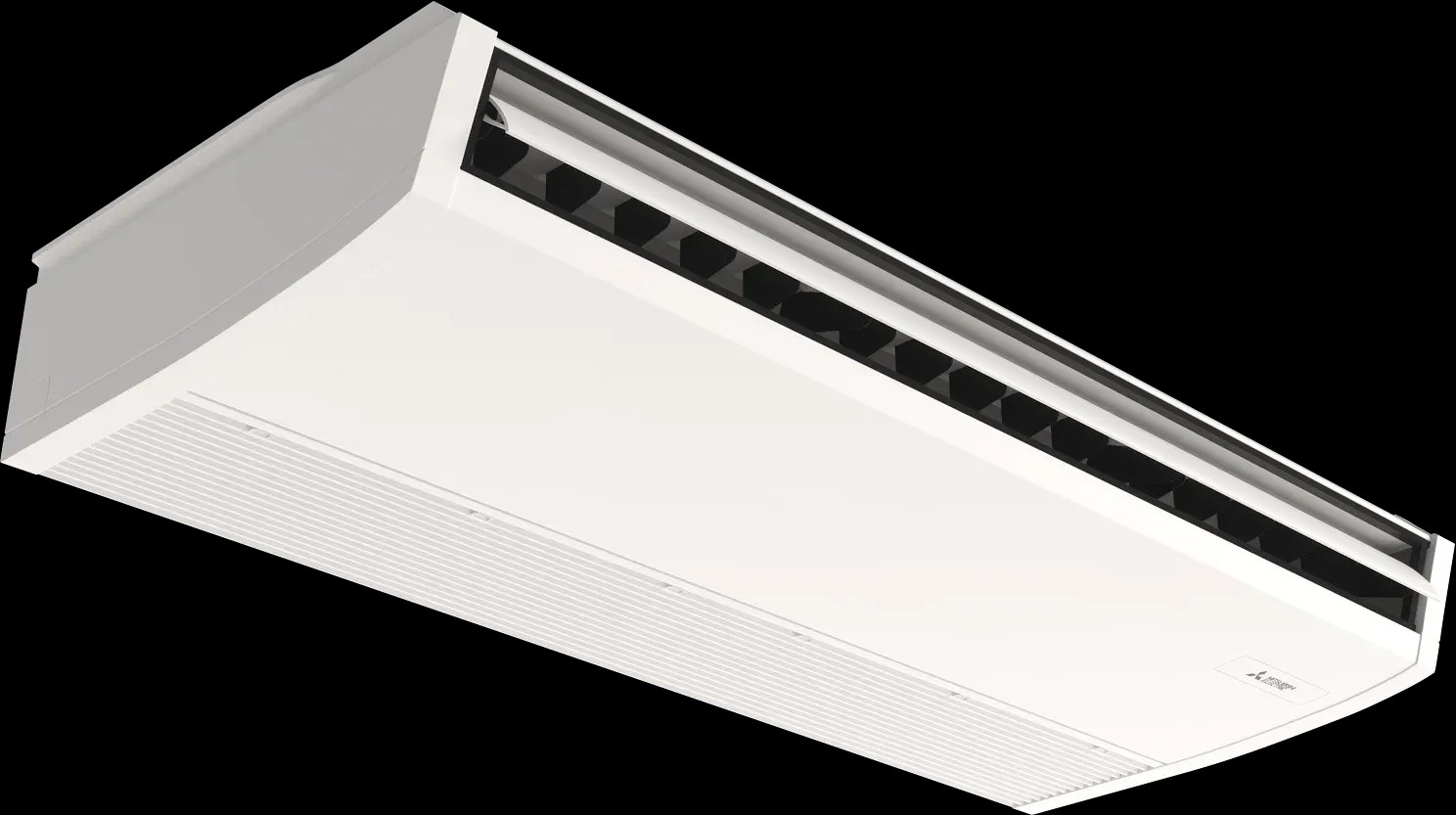

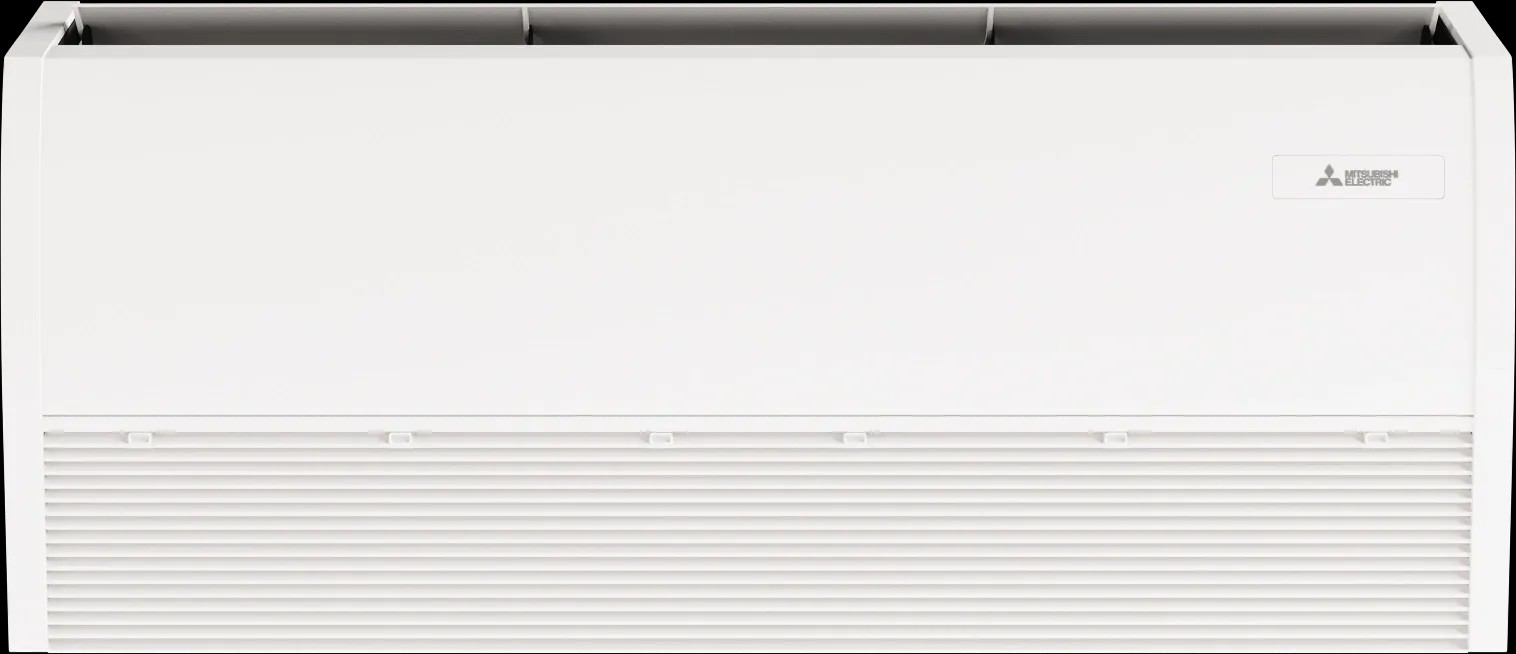

Bell Simmons P- Series PCA-A42KA8 Ceiling-Suspended Indoor Unit, 3.5 Tons, 42,000 BTU/hr, Suspended Mount, R-410A, Flare Connection, 15.5 SEER2, 10 EER (EER2)
Bell Simmons P- Series PCA-A42KA8 Ceiling-Suspended Indoor Unit, 3.5 Tons, 42,000 BTU/hr, Suspended Mount, R-410A, Flare Connection, 15.5 SEER2, 10 EER (EER2)
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388589
MPN: PCA-A42KA8
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 2.0 A |
| BTU Rating | : | 42,000 BTU/hr |
| CFM Rating | : | 810-1,025 CFM |
| Color | : | White |
| Connection Type | : | Flare |
| Drive Type | : | Direct Drive |
| EER Rating | : | 10 EER (EER2) |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 9.9 HSPF (HSPF2, Region IV), 7.7 HSPF (HSPF2, Region V) |
| Model | : | PCA-A42KA8 |
| Mounting Type | : | Suspended Mount |
| Number of Fan Speeds | : | 4 |
| Overall Height | : | 9-1/16 " |
| Overall Length | : | 26-3/4 " |
| Overall Width | : | 63 " |
| Phase | : | 1 |
| Power Rating | : | 160 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 15.5 SEER2 |
| Series | : | P- Series |
| Size | : | 42,000 BTU/hr |
| Sound Level | : | 39-45 dBA |
| Suitable For Use With | : | PUY-A42NKA7, PUZ-A42NKA7, PUZ-HA42NKA1 |
| Temperature Rating | : | 66-90 °F (Dry Bulb, Cooling Intake), 59-73 °F (Wet Bulb, Cooling Intake) |
| Tonnage | : | 3.5 tons |
Bell Simmons Ceiling-Suspended Indoor Unit, Model: P- Series, 3.5 Tons, 42,000 BTU/hr, Suspended Mount, R-410A, Flare Connection, 15.5 SEER2, 10 EER (EER2), 9.9 HSPF (HSPF2, Region IV), 7.7 HSPF (HSPF2, Region V), 810-1,025 CFM, 39-45 dBA, 4 Fan Speeds, 66-90 °F (Dry Bulb, Cooling Intake), 59-73 °F (Wet Bulb, Cooling Intake), Direct Drive, 160 W, 208/230 V, 1, 2.0 A, 60 Hz, 9-1/16" Overall Height, 63" Overall Width, 26-3/4" Overall Length, White
Designed for ceiling-suspended installation in larger commercial spaces like retail stores, classrooms, and restaurants.Features automatic fan speed adjustment with settings optimized for both high and low ceiling applications.Includes an easy-to-clean, washable filter with a convenient filter status indicator light.Offers multiple control options, including wired/wireless controllers and kumo cloud® compatibility (controller sold separately).Includes knock-outs for optional outside air intake integration.Supports optional i-see Sensorâ„¢ for enhanced air distribution and energy savings (sensor sold separately).Compatible With: Mitsubishi P-Series outdoor units PUY-A42NKA7, PUZ-A42NKA7, and PUZ-HA42NKA1.
