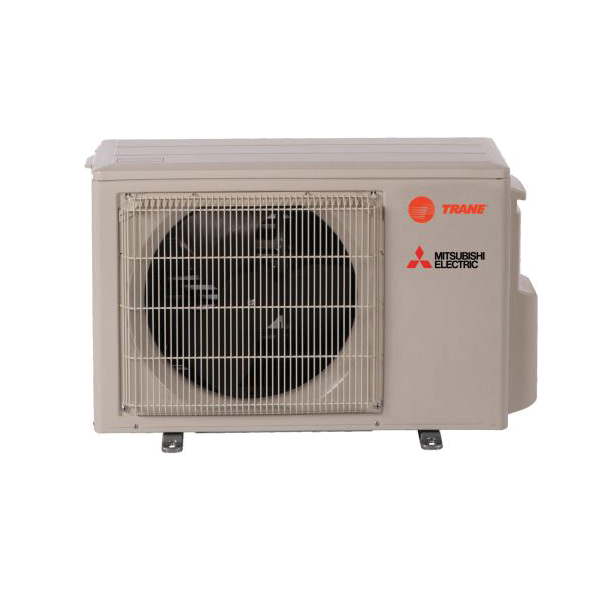

Mitsubishi Electric Trane® Nv Series NTXSPH12A112AA Heat Pump System, 208/230 V, 11 A, 2500 to 13600 Btu/hr Cooling
Mitsubishi Electric Trane® Nv Series NTXSPH12A112AA Heat Pump System, 208/230 V, 11 A, 2500 to 13600 Btu/hr Cooling
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388419
MPN: NTXSPH12A112AA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 11 A |
| Color | : | Munsell 3Y 7.8/1.1 |
| Compressor Type | : | Inverter Driven Twin Rotary |
| Cooling BTU Rating | : | 2500 to 13600 Btu/hr |
| Cooling CFM Rating | : | 1074 cfm |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 49 dBA |
| EER Rating | : | 13.8 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 12.5 |
| Heating BTU Rating | : | 3700 to 21000 Btu/hr |
| Heating CFM Rating | : | 1202 cfm |
| Heating Operating Temperature | : | -13 to 75 deg F |
| Heating Sound Level | : | 51 dBA |
| Liquid Line Size | : | 1/4 in |
| Model Number | : | NTXSPH |
| Overall Height | : | 21-5/10 in |
| Overall Length | : | 31-1/4 in |
| Overall Width | : | 11-1/6 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 26.1 |
| Series | : | Nv Series |
| Suction Line Size | : | 3/8 in |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Trane® Heat Pump System, Nv Series, 208/230 V, 11 A, 60 Hz, 1 ph Phase, 3700 to 21000 Btu/hr Heating, 2500 to 13600 Btu/hr Cooling, 1202 cfm Heating CFM Rating, 1074 cfm Cooling CFM Rating, 13.8 EER Rating, 26.1 SEER, 12.5 HSPF, Inverter Driven Twin Rotary Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 15 A Fuse Rating, 51 dBA Heating Sound Level, 49 dBA Cooling Sound Level, Munsell 3Y 7.8/1.1, -13 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 31-1/4 in Overall Length, 11-1/6 in Overall Width, 21-5/10 in Overall Height
- Slim wall-mounted indoor units provide zone comfort control.
- The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns.
- INVERTER-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance
- Pro-Heat performance offers 100% heating capacity at 5 degF and 70% to 81% heating capacity at -13 degF
- Multiple fan speed options: Quiet, Low, Medium, High, Super-high, Auto
- 3D i-see Sensor® enables advance features - Indirect or Direct Airflow for personalized comfort
- Absence Detection for energy-saving mode
- Double Vane features - Separates Airflow to deliver air across a large area
- Simultaneously deliver air to two people in different locations
- Generates more comfortable natural Airflow pattern
- Multiple control options available - Hand-held Remote Controller (provided with unit)
- kumo cloud® smart device app for remote access
- Third-party interface options
- Wired or wireless controllers
- Triple-action Filtration: Nano Platinum Filter, Deodorizing Filter, & Electrostatic Anti-Allergy Enzyme Filter
- Hot-Start Technology: no cold air rush at equipment startup or when restarting after Defrost Cycle
- Quiet operation
- Blue Fin anti-corrosion treatment applied to the outdoor unit heat exchanger for increased coil protection and longer life
