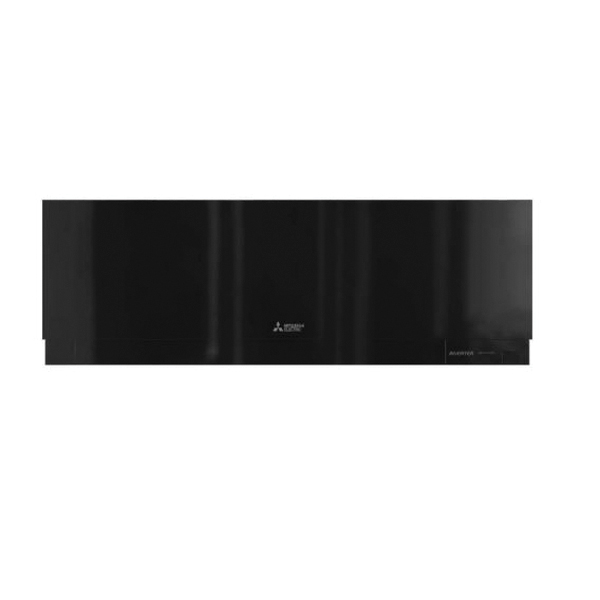

Mitsubishi Electric Trane® MSZ-EX12NLB Indoor Multi-Split Air Conditioner, 208/230 V, 1 ph, Wall Mounting

BTU Rating	:	2700 to 12000 Btu/hr Cooling, 5300 to 15000 Btu/hr Heating
CFM Rating	:	143/164/228/305/391 cfm Cooling, 143/164/205/244/479 cfm Heating
Color	:	Black
Connection Type	:	Flared
Drive Type	:	Inverter
EER Rating	:	12.2
Frequency Rating	:	60 Hz
HSPF Rating	:	10
Mounting Type	:	Wall
Overall Height	:	11-3/4 in
Overall Length	:	7-11/16 in
Overall Width	:	34-13/16 in
Phase	:	1 ph
Power Rating	:	980 W Cooling, 1200 W Heating
Refrigerant Type	:	R-454B
SEER Rating	:	21.7
Series	:	MSZ-EX-NL Series
Sound Level	:	21/24/29/36/42 dBA Cooling, 21/24/30/38/46 dBA Heating
Temperature Rating	:	67 to 90 deg F Cooling, 70 to 80 deg F Heating
Voltage Rating	:	208/230 V

Mitsubishi Electric Trane® Indoor Multi-Split Air Conditioner, Series: MSZ-EX-NL, 208/230 V, 980 W Cooling, 1200 W Heating, 60 Hz, 1 ph, 2700 to 12000 Btu/hr Cooling, 5300 to 15000 Btu/hr Heating, 143/164/228/305/391 cfm Cooling, 143/164/205/244/479 cfm Heating, 12.2 EER Rating, 21.7 SEER, 10 HSPF, Flared Connection, R-454B Refrigerant, Inverter Drive, 21/24/29/36/42 dBA Cooling, 21/24/30/38/46 dBA Heating Sound Level, Wall Mounting, Black, 67 to 90 deg F Cooling, 70 to 80 deg F Heating, 7-11/16 in Overall Length, 34-13/16 in Overall Width, 11-3/4 in Overall Height

Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface ofthe heat pump, resulting in optimal airflow and easier maintenance.Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increasedslightly, which saves energy, while maintaining comfort.Modern, sleek designMultiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wiredand wireless controllers
