| Amperage Rating | : | 32/50 A |
| Color | : | Munsell |
| Compressor Type | : | Scroll |
| Cooling BTU Rating | : | 48000 Btu/hr |
| Cooling CFM Rating | : | 3530 cfm |
| Cooling Operating Temperature | : | 23 to 115 deg F |
| Cooling Sound Level | : | 54 dBA |
| EER Rating | : | 8.3 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HSPF Rating | : | 8.7 |
| Heating BTU Rating | : | 54000 Btu/hr |
| Heating CFM Rating | : | 3530 cfm |
| Heating Operating Temperature | : | 5 to 70 deg F |
| Heating Sound Level | : | 55 dBA |
| Liquid Line Size | : | 3/8 in |
| Overall Height | : | 53-3/16 in |
| Overall Length | : | 14-3/16 in |
| Overall Width | : | 37-7/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 5.78 kW |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 15 |
| Series | : | M Series |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208-230 V |

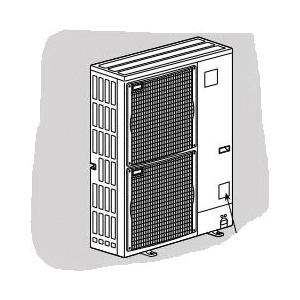

Mitsubishi Electric Split-System Heat Pump, M Series, 208-230 V, 32/50 A, 5.78 kW, 60 Hz, 1 ph Phase, 54000 Btu/hr Heating, 48000 Btu/hr Cooling, 3530 cfm Heating CFM Rating, 3530 cfm Cooling CFM Rating, 8.3 EER Rating, 15 SEER, 8.7 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 50 A Fuse Rating, Tonnage: 4 ton, 55 dBA Heating Sound Level, 54 dBA Cooling Sound Level, Munsell, 5 to 70 deg F Heating Operating Temperature, 23 to 115 deg F Cooling Operating Temperature, 14-3/16 in Overall Length, 37-7/16 in Overall Width, 53-3/16 in Overall Height
- 4 ton outdoor unit can support up to 8 ton indoor units when used with branch boxes
- Hand-held wireless or wired remote controller, depending on the indoor units used
- Automatic fan speed control
- Auto restart following a power outage
- Self-check function - integrated diagnostics
- Advanced micro-processor technology and control
