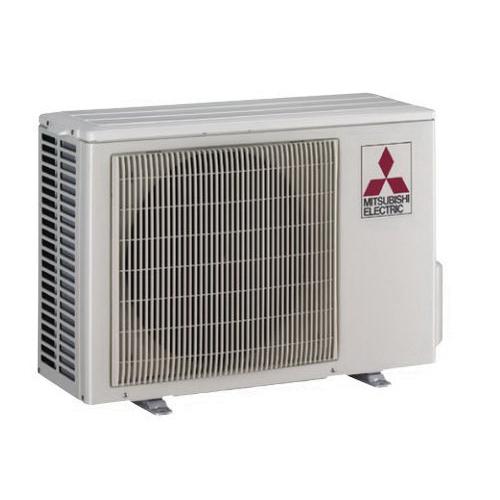

Mitsubishi Electric M Series MUZ-GE15NA-1 Ductless Mini-Split Heat Pump, 208 to 230 V, 0.5 A, 1 ph Phase

Mitsubishi Electric M Series MUZ-GE15NA-1 Ductless Mini-Split Heat Pump, 208 to 230 V, 0.5 A, 1 ph Phase

Brand: Mitsubishi Electric
Part #: 24291
Customer Part #:
Additional Information      :      11-1/4 in D
Amperage Rating      :      0.5 A
Color      :      Munsell 1.0Y 9.2/0.2
Compressor Type      :      Scroll
Connection Type      :      Flared
Frequency Rating      :      60 Hz
HSPF Rating      :      10
Heating BTU Rating      :      14000 Btu/hr
Heating CFM Rating      :      533 cfm
Heating Operating Temperature      :      95 deg F
Heating Sound Level      :      49 dBA
Liquid Line Size      :      1/4 in
Mounting Type      :      Wall
Overall Height      :      21-5/8 in
Overall Width      :      31-1/2 in
Phase      :      1 ph
Power Rating      :      1.08 kW
Refrigerant Type      :      R-410A
SEER Rating      :      21
Series      :      M Series
Voltage Rating      :      208 to 230 V

Mitsubishi Electric Ductless Mini-Split Heat Pump, M Series, 208 to 230 V, 0.5 A, 1.08 kW Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 14000 Btu/hr, Heating CFM Rating: 533 cfm, 21 SEER, 10 HSPF, Flared Connection, Scroll Compressor, R-410A Refrigerant, 1/4 in Liquid Line, Heating Sound Level: 49 dBA, Wall Mounting, Munsell 1.0Y 9.2/0.2, Heating Operating Temperature: 95 deg F, 31-1/2 in Overall Width, 21-5/8 in Overall Height, Additional Information: 11-1/4 in D

  • Quiet operation
  • Auto fan speed control: Quiet, low, medium, high and super high
  • Hand held wireless remote controller
  • Indoor unit powered from outdoor unit using A-control
  • Auto restart following a power outage
  • Anti-allergy enzyme filter
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Mitsubishi_Electric_MUZ_GE15NA_1_Catalog.pdf
  • Submittal https://assets.unilogcorp.com/267/ITEM/DOC/Mitsubishi_Electric_MUZ_GE15NA_1_Submittal.pdf
