| Additional Information | : | 18.8 SEER2, 11 EER2, 9.1 HSPF2-4, 3.15 COP, 20 to 2 AWG Communication Wiring, EXV Throttle Type |
| Amperage Rating | : | 16 A |
| Compressor Type | : | Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 18000 Btu/hr |
| Cooling CFM Rating | : | 1451 cfm |
| Cooling Operating Temperature | : | -13 to 122 deg F |
| Cooling Sound Level | : | 55 dBA |
| Frequency Rating | : | 60 Hz |
| Heating BTU Rating | : | 18000 Btu/hr |
| Heating CFM Rating | : | 1451 cfm |
| Heating Operating Temperature | : | -13 to 75 deg F |
| Heating Sound Level | : | 55 dBA |
| Liquid Line Size | : | 3/8 in |
| Model | : | MO1BE |
| Mounting Type | : | Wall |
| Overall Height | : | 21-3/4 in |
| Overall Length | : | 13 in |
| Overall Width | : | 31-3/4 in |
| Phase | : | 1 ph |
| Power Rating | : | 1635 W Cooling, 1675 W Heating |
| Refrigerant Type | : | R-454B |
| Series | : | Evox, Regular Heat AHU Series |
| Voltage Rating | : | 208/230 V |

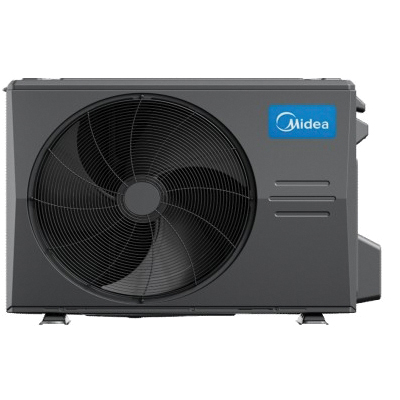

Midea® Air Handler Heat Pump System, Evox, Regular Heat AHU Series, Model: MO1BE, 208/230 V, 16 A, 1635 W Cooling, 1675 W Heating, 60 Hz, 1 ph Phase, 18000 Btu/hr Heating, 18000 Btu/hr Cooling, 1451 cfm Heating CFM Rating, 1451 cfm Cooling CFM Rating, Flared Connection, Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 55 dBA Heating Sound Level, 55 dBA Cooling Sound Level, Wall Mounting, -13 to 75 deg F Heating Operating Temperature, -13 to 122 deg F Cooling Operating Temperature, 13 in Overall Length, 31-3/4 in Overall Width, 21-3/4 in Overall Height, Additional Information: 18.8 SEER2, 11 EER2, 9.1 HSPF2-4, 3.15 COP, 20 to 2 AWG Communication Wiring, EXV Throttle Type
- Multi-position installation: horizontal(left or right), vertical( up or down)
- Aluminum Coil
- Constantly Air Flow system up to 0.80 In.W.G
- 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency(optional)
- Optional Auxiliary heat kit up to 25kW
- Easy Maintenance
- Multiple control options available:
- Two way communication wired controller:120N(X6)
- Two way communication wired controller with built-in WiFi:120N(X6W)
- Wireless remote controller
- Third-Party 24V Thermostat
- Adaptive Control System
- High efficiency up to 18.8 SEER2, 11 EER2, 9.7 HSPF2
- Chassis heater and crankcase heater equipped as standard
