| CFM Rating | : | 1807 cfm |
| Configuration | : | Left, Right, Up, Down |
| Dimensions | : | 53 in H x 21 in W x 24-1/2 in D |
| Frequency Rating | : | 60 Hz |
| Heating Capacity | : | 54000 Btu |
| Material | : | Aluminum |
| Motor Type | : | ECM |
| Nominal Capacity | : | 5 ton |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Sound Level | : | 55 dBA |
| Voltage Rating | : | 115/208/230 V |

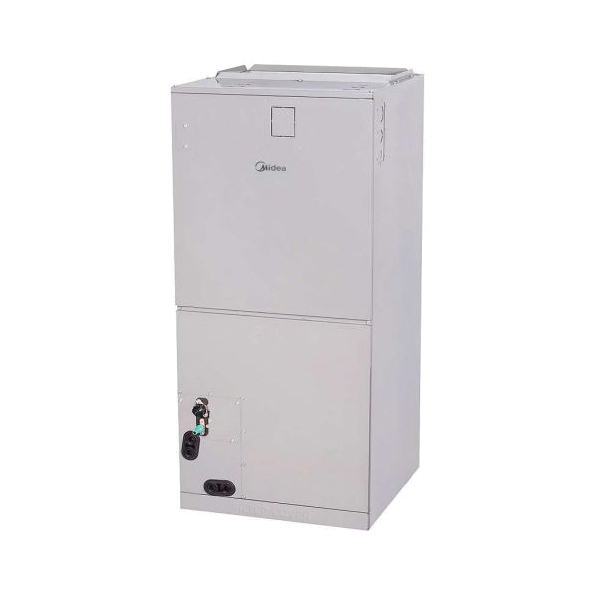

Midea® Air Handler, 5 ton Nominal Capacity, 54000 Btu Heating, 115/208/230 V, 60 Hz, 1 ph Phase, 1807 cfm, Left, Right, Up, Down, 55 dBA Sound Level, 2 Stages, ECM Motor, Aluminum, 53 in H x 21 in W x 24-1/2 in D
- Compatible with 485 or 24V: automatically identifying the control mode, no need for manual conversion.
- Constant CFM ECM motor provides consistent airflow up to 0.8 in. w.c.
- Electronic expansion valve (EEV) control: better throttling for highly efficient operation.
- Optional auxiliary heat kits available up to 25kW.
- All-Aluminum Coil.
- Quiet Operation - down to 35 dB(A) level.
- Streamlined Trouble-shooting - Easily accessible error code display
- Easy Access - Remove two screws for access to the electrical board, blower, heater
- Slide-Out Fan - Easily remove the fan motor for straightforward maintenance
- Magnetic Filter Cover - One click for filter access
