| Coil Voltage | : | 24 V |
| Contact Configuration | : | DPDT |
| Contact Material | : | Silver Alloy |
| Depth | : | 2 in |
| Drop Down Voltage | : | >7.2 VAC |
| Frequency Rating | : | 60 Hz |
| Height | : | 1-3/8 in |
| Mounting Type | : | Flange Bracket, Plug-In |
| Pickup Voltage | : | <=20.4 VAC |
| Power Rating | : | 1/3 hp, 1 hp, 2 VA |
| Terminal Type | : | 3-Way Blade |
| Width | : | 1-1/2 in |
| Withstand Voltage | : | 20.4 VAC |
MARS enclosed switching relays are heavy-duty general purpose relays suitable for a variety of applications. They are commonly used in heating, air conditioning, vending machines, office machines, control panels and other general purpose applications. They are available in 1-pole, 2-pole and 3-pole models for either bracket or plug-in mounting. All MARS enclosed switching relays are protected by a tough polycarbonate cover to keep out dust and dirt. Blade type terminals fit standard plug-in mounts plus allow use with 3/16 in quick-connect terminals or direct soldering.

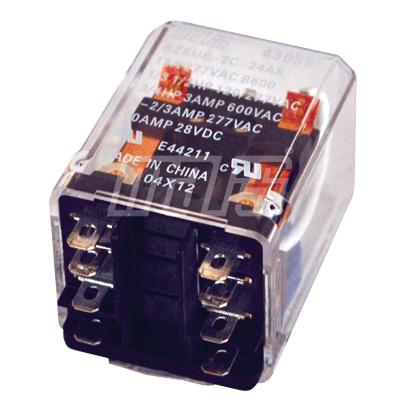

Mars® General Purpose Enclosed Power Relay, 1/3 hp, 1 hp, 2 VA, 60 Hz, 24 V Coil, <=20.4 VAC Pickup Voltage, >7.2 VAC Drop Down Voltage, 20.4 VAC Withstand Voltage, DPDT, Flange Bracket, Plug-In Mount, 3-Way Blade Terminal, Silver Alloy Contact, 1-3/8 in Height, 1-1/2 in Width, 2 in D
- Simple connections
- Contact rating - 13 A at 120 VAC
