| Additional Information | : | 30 to 70 s Auxiliary Switch On Time, 1 to 40 s Auxiliary Switch Off Time, 24 V Control Voltage |
| Amperage Rating | : | 25 A |
| Contact Form | : | 2NO |
| Number of Switches | : | 4 |
| Number of Timings | : | 2 |
| Pilot Duty Rating | : | 960 VA |
| Power Rating | : | 7200 W |
| Resistive Rating | : | 23 A |
| Switch Off Time | : | 45 to 75 s |
| Switch On Time | : | 1 to 24 s |
| Switching Action | : | DPST |
| Voltage Rating | : | 240 V |

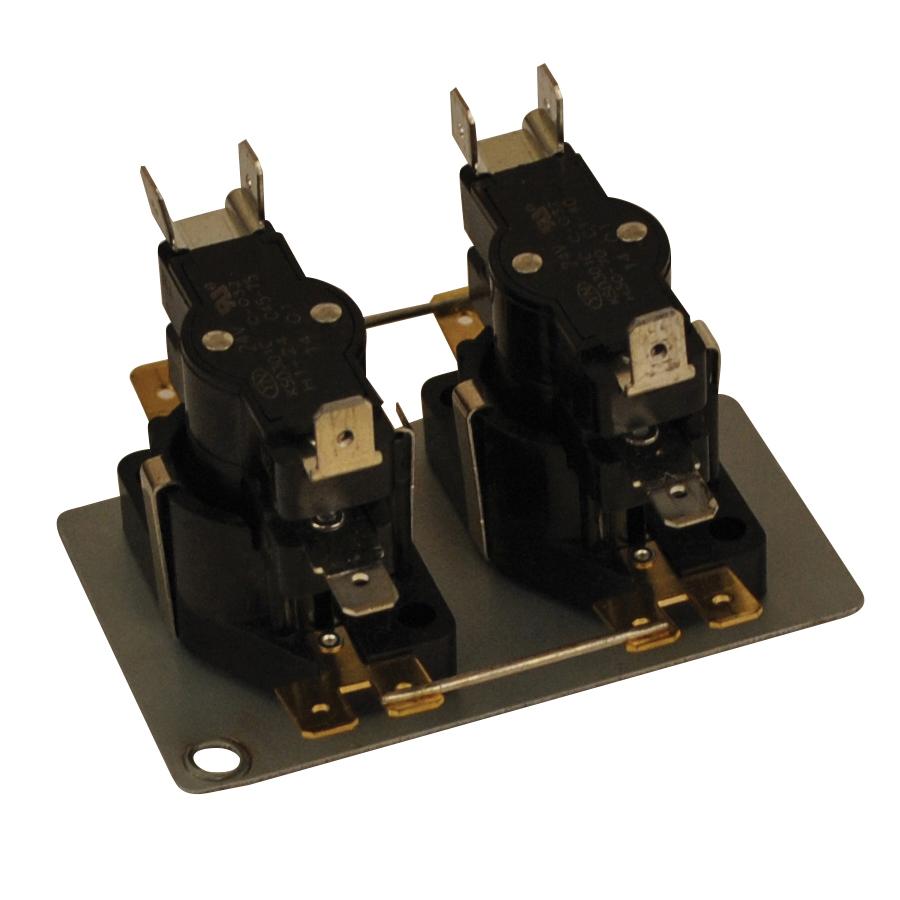

Mars® Electric Heat Sequencer, 4 Switches, 2 Timings, 1 to 24 s Switch On, 45 to 75 s Switch Off, Resistive: 23 A, Pilot Duty: 960 VA, 240 V, 25 A, 7200 W, DPST Switching Action, 2NO, Additional Information: 30 to 70 s Auxiliary Switch On Time, 1 to 40 s Auxiliary Switch Off Time, 24 V Control Voltage
- Solid state dependability
- Replaces Honeywell and White-Rodgers
- Ambient-rated from 20 to 160 deg F
- Used on both separate blower and element and combination blower and element systems
- Standard double quick-connect terminals for combination fan and element systems
- 7.2 kW combination fan and element-rated contacts (23A resistive, 7A motor load)
- Non-positional
- Voltage and ambient self-compensating positive temperature coefficient (PTC) heater elements
