| Amperage Rating | : | 3.4 to 3.2/1.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.61 in Dia x 11.32 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 77 % |
| Frame Size | : | 56Z |
| Frequency Rating | : | 50 Hz, 60 Hz |
| HP Rating | : | 1 hp |
| Insulation Class | : | B |
| Material | : | Steel |
| Model | : | 056T17D2092 |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Rating | : | 0.75 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 0.625 in Dia x 1.88 in L |
| Shaft Type | : | T |
| Speed Rating | : | 1800 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230/460 VAC |

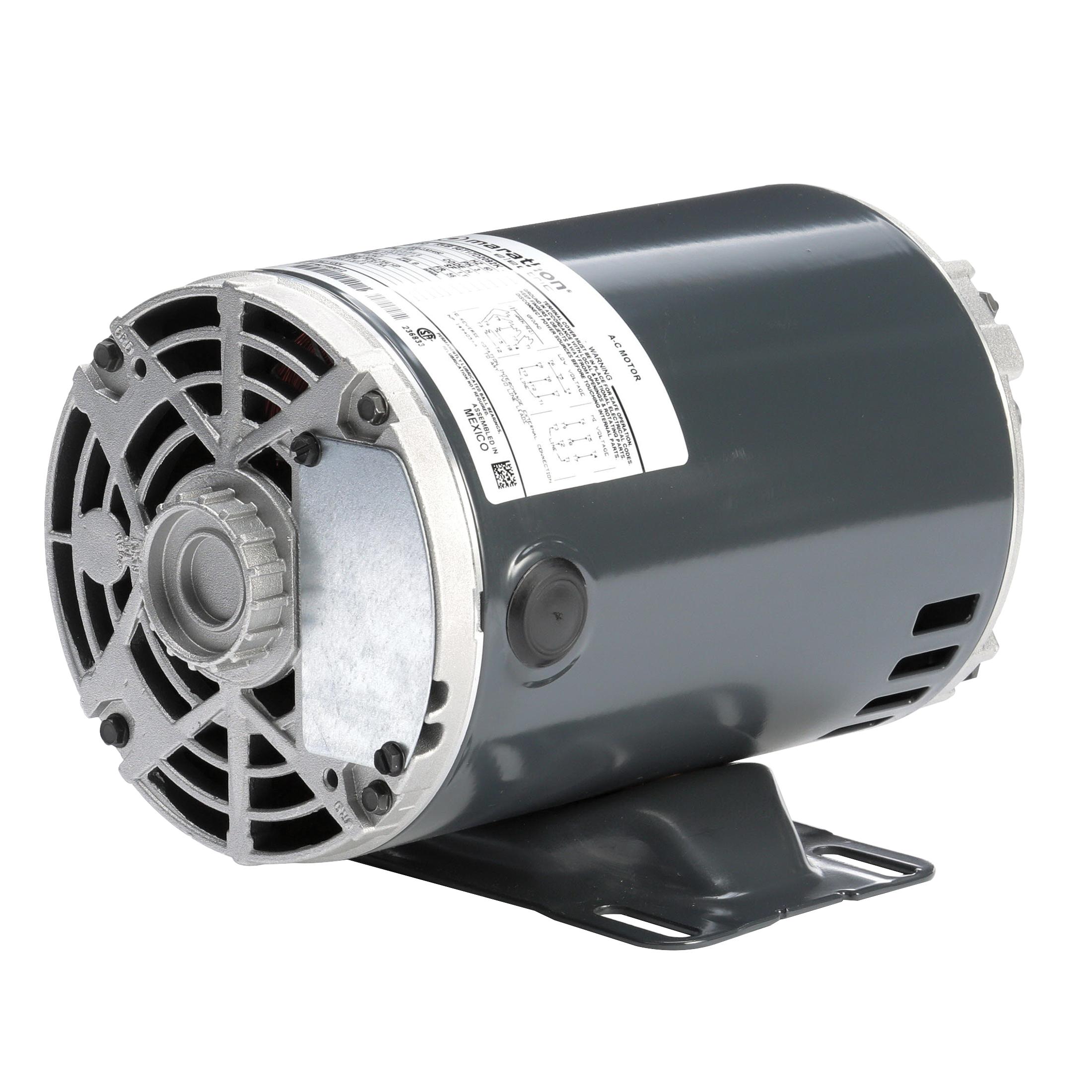

Marathon® Motor, Model: 056T17D2092, 208 to 230/460 VAC, 3.4 to 3.2/1.6 A, 1 hp, 1800 rpm, 0.75 kW, 3 ph Phase, 50 Hz, 60 Hz, Open Drip-Proof Motor Enclosure, 56Z Frame, 0.625 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Speed, T Shaft Type, 77 % Efficiency, Ball Bearing, Rigid Base Mounting, Continuous, B Insulation Class, 4 Poles, 1.15 Service Factor, Across the Line Starting Method, Steel, 40 deg C, 5.61 in Dia x 11.32 in L
