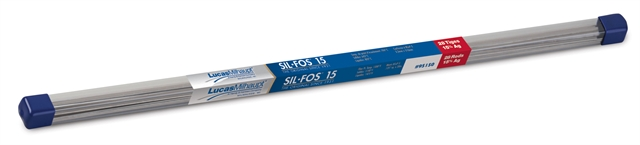

Lucas-Milhaupt Sil-Fos 15 95150 Brazing Rod, For Copper, Brass, Bronze, Silver, Copper, Phosphorus, 1/20" (Thickness) Diameter, 20" Length, Gray Finish, 1300-1500 °F, 30,000 - 35,000 lbs/In2 (Copper), 35,000 - 40,000 lbs/In2 (Brass) Tensile Strength

Composition	:	Silver, Copper, Phosphorus
Container Size	:	28 pieces (1 lb)
Container Type	:	Tube
Diameter	:	1/20" (Thickness)
Finish	:	Gray
For Joining Material	:	Copper, Brass, Bronze
Length	:	20 "
Material Code	:	BCuP-5
Series	:	Sil-Fos 15
Temperature Rating	:	1300-1500 °F
Tensile Strength	:	30,000 - 35,000 lbs/in2 (Copper), 35,000 - 40,000 lbs/in2 (Brass)

Lucas-Milhaupt Brazing Rod, Model: Sil-Fos 15, For Copper, Brass, Bronze, Silver, Copper, Phosphorus, 1/20" (Thickness) Diameter, 20" Length, Gray Finish, 1300-1500 °F, 30,000 - 35,000 lbs/In2 (Copper), 35,000 - 40,000 lbs/In2 (Brass) Tensile Strength, Bcup-5, 28 Pieces (1 lb) Container Size, Tube

Features a self-fluxing property when joining copper to copper due to its phosphorus content.Requires the use of flux when brazing copper to brass or bronze alloys.Provides the highest joint ductility within the Sil-Fos family.Suitable for joints where fit-up may be marginal or where fillet build-up is needed.Penetrates well into long shear depths, despite a slower flow characteristic.Widely used in HVAC/R applications for refrigerant systems, AC coils, and pipe fittings.Meets AWS A5.8/A5.8M BCuP-5 specifications.Manufactured in the USA.
