| Finish | : | Galvanized |
| Fire/Smoke Rating | : | 3 hr |
| Material | : | 22 ga Steel Blade and Frame |
| Size | : | 10 x 6 x 6 in |
Lloyd Industries Ceiling Radiation Damper with Boot, 10 x 6 x 6 in Size, 3 hr Fire/Smoke, 22 ga Steel Blade and Frame, Galvanized
- Ceiling radiation damper (UL 3 hr rating): 165 deg F standard fusible link, ceramic fiber with fiberglass cover (sizes over 80 sq-in), rectangular width x height provided actual size for register installation

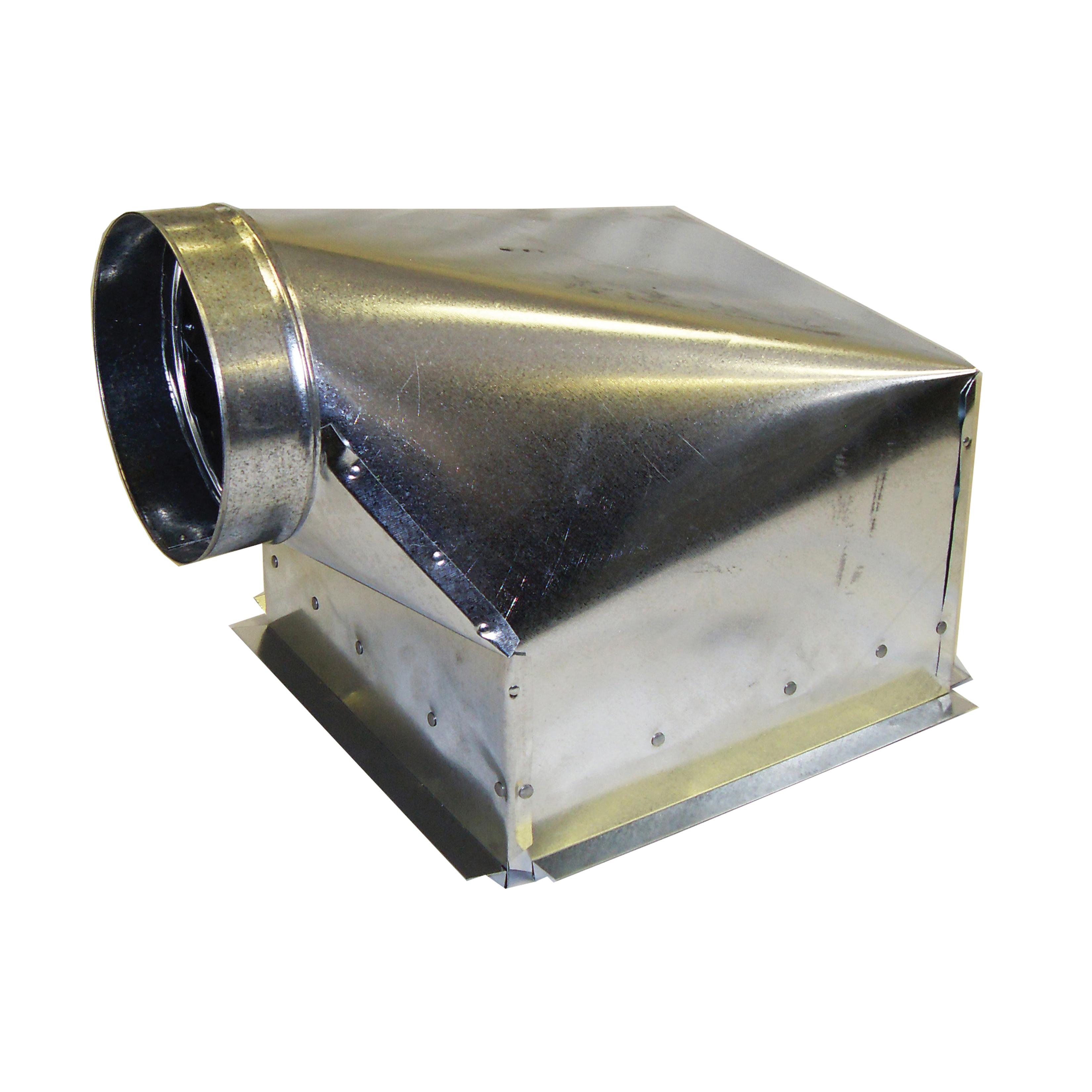

- Boot/register box: 30 ga galvanized steel, standard 1/2 in deep plaster flange, Standard 1 in W flanges (4) sides, round type CR collar (provide nominal size)
- Fiberglass insulation: exterior wrapped foil faced fiberglass R6 insulation-field installed, 1-1/2 in W UL 181 aluminum duct tape
- Size units: maximum square 12 in W x 12 in H
- Maximum rectangle 144 sq-in
