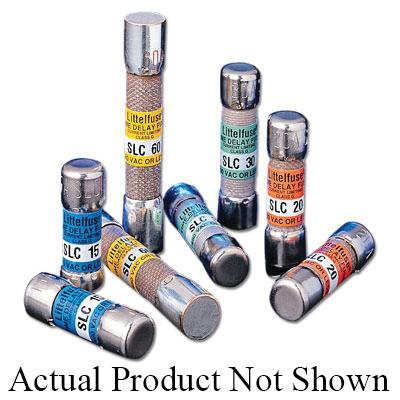

Littelfuse® SLC Series SLC035 Fuse, 0.5 to 20 A, 480/600 VAC, 170 VDC, 100 kA Interrupt, Class: G

The unique design of Littelfuse's compact SLC series Class G fuses provide additional time-delay over competitive products which increases system reliability. Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC requirements for branch-circuit protection. The unique dimensions of SLC series Class G fuses prevents insertion of lower voltage fuses in Class G fuse holders. The fuse's varying length prevents insertion of higher ampere rated fuses in fuse holders designed for lower ampere ratings. Class CC fuses are replacing Class G fuses in many new designs. Class CC fuses' superior time delay plus higher voltage and interrupting ratings meet the needs of modern circuits. Littelfuse's introduction of POWR-PRO® CCMR series fuses, with ratings up to 60 Amperes for providing branch circuit protection, are accelerating this trend.

Littelfuse® Fuse, SLC Series, Non-Indicating, 480/600 VAC, 170 VDC, 0.5 to 20 A, Class: G, 100 kA Interrupt Rating, 2-1/4 in Length, 13/32 in Diameter
