| Amperage Rating | : | 10 A |
| Body Material | : | Fiber |
| Body Type | : | Cartridge, Cylindrical |
| Class | : | RK5 |
| Diameter | : | 0.56 in |
| Element Type | : | Dual |
| Frequency Rating | : | 50/60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 300 kA AC, 20 kA DC |
| Length | : | 2 in |
| Mounting Type | : | Clip, Fuse Block, Holder |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | 10 s |
| Series | : | FLNR Series |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 250 VAC, 125 VDC |

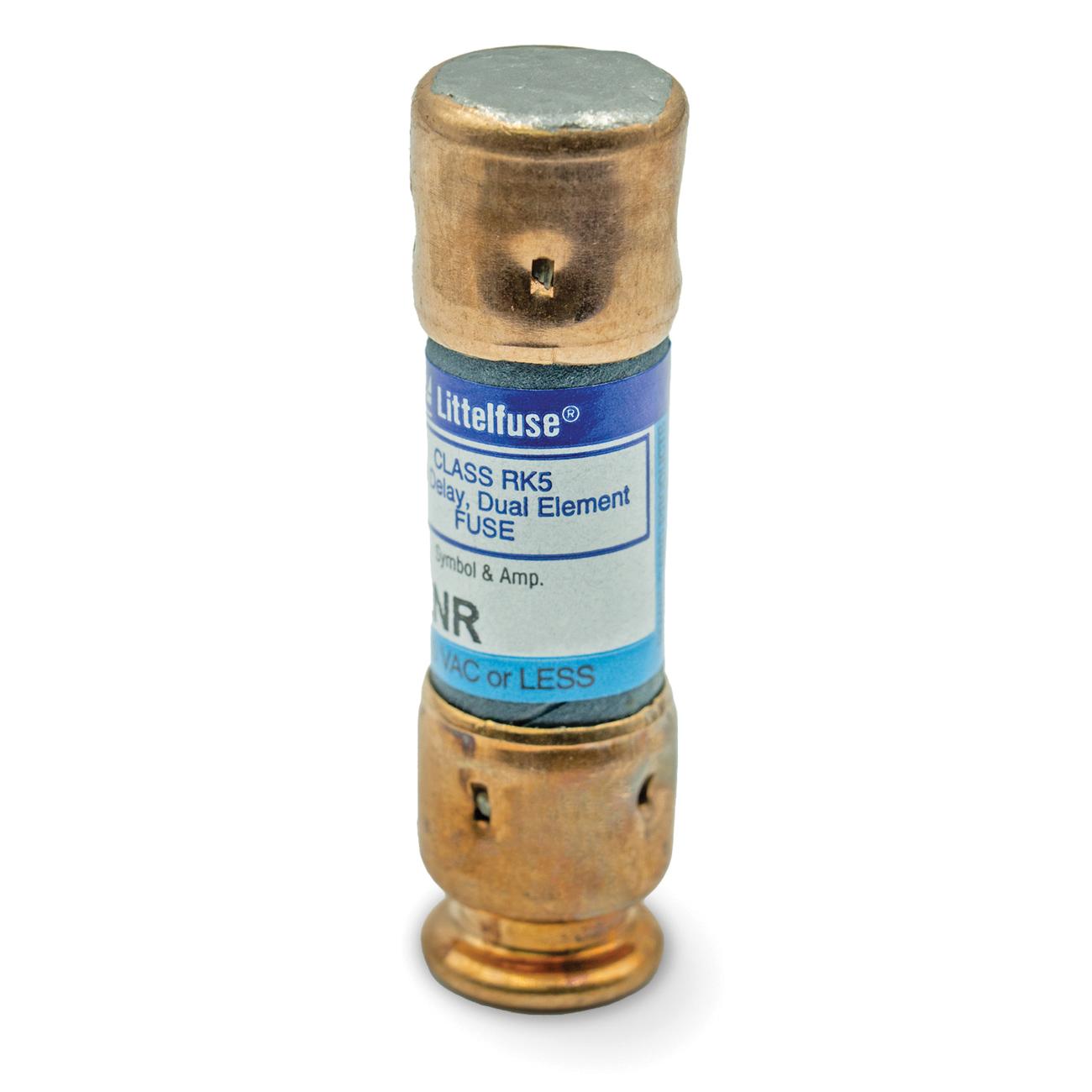

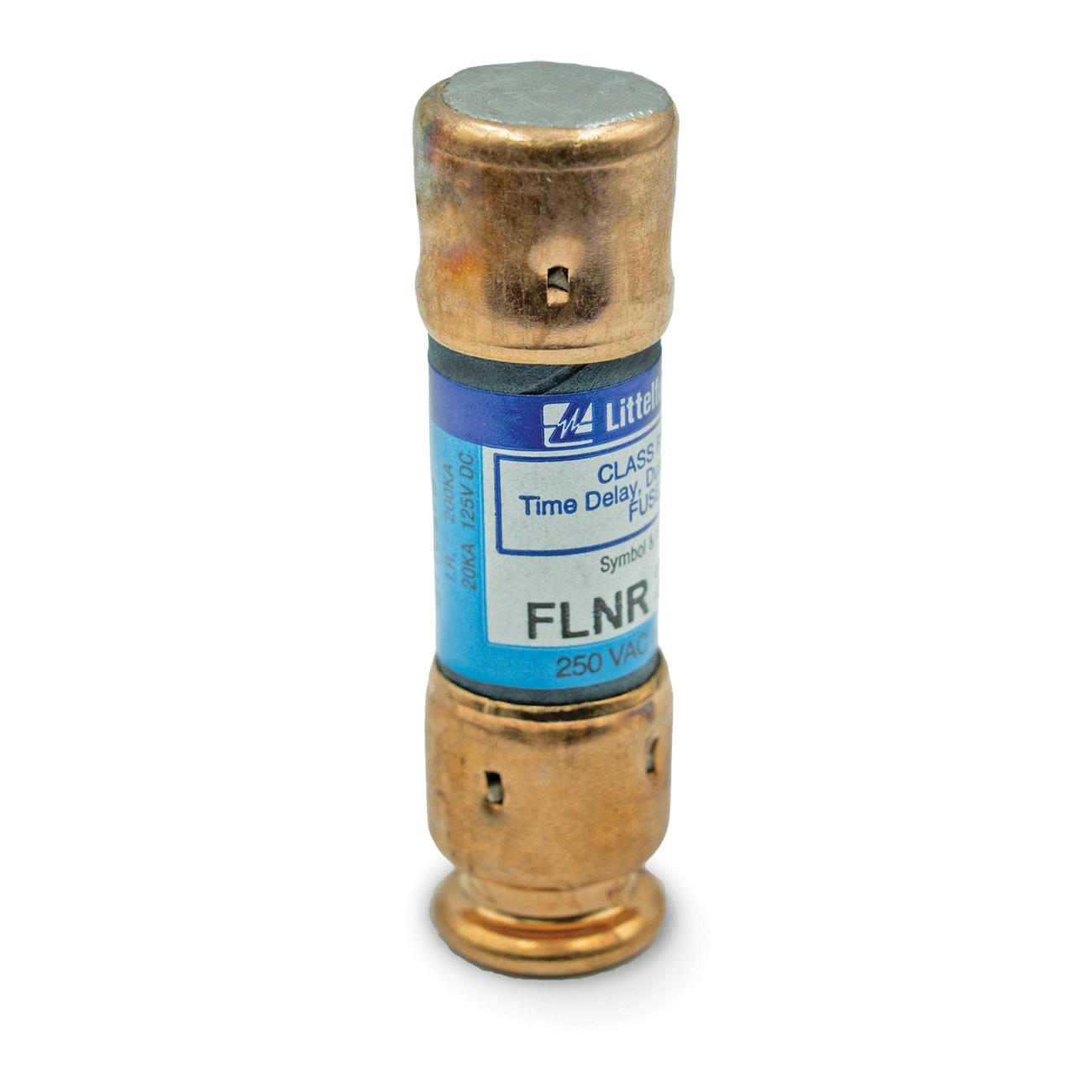

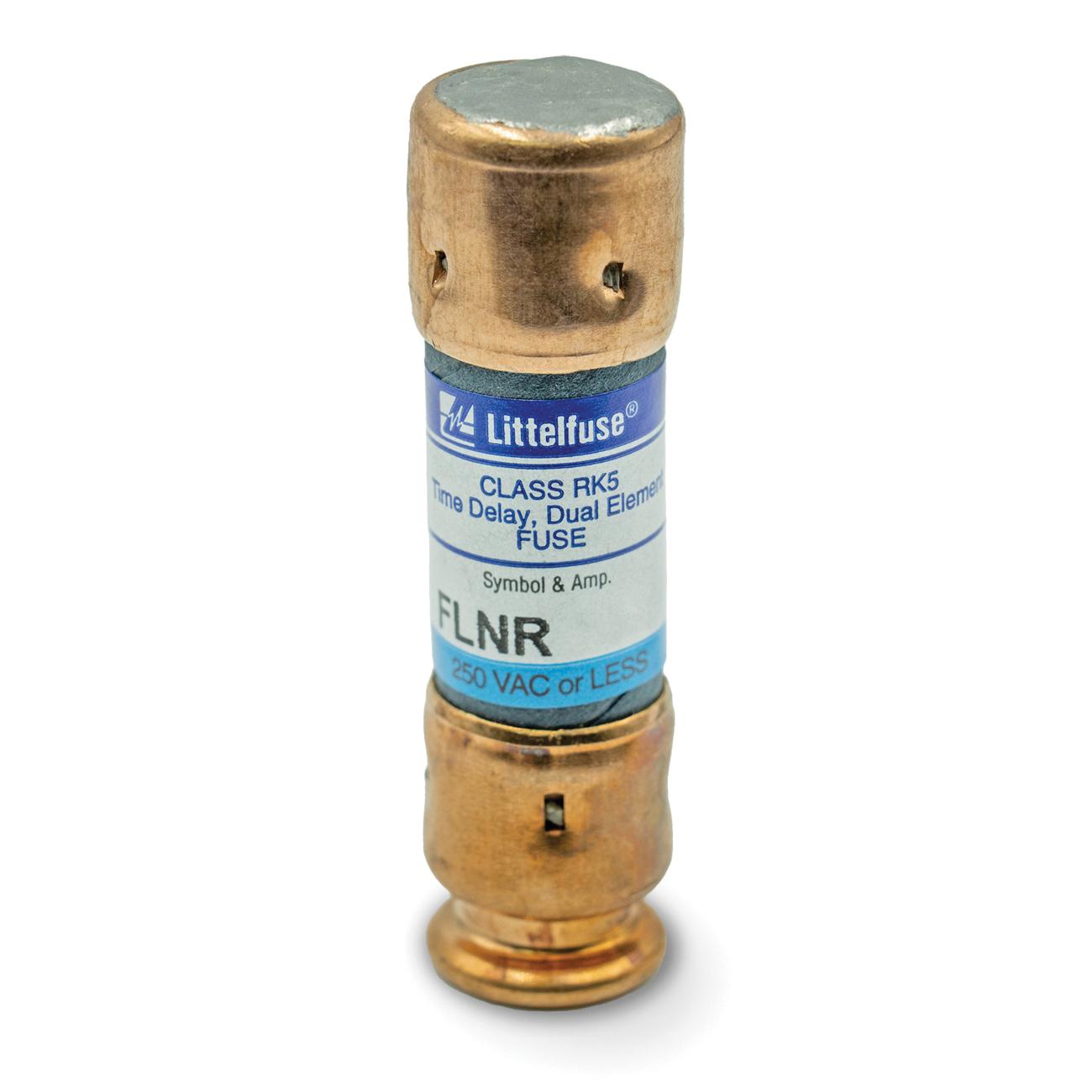

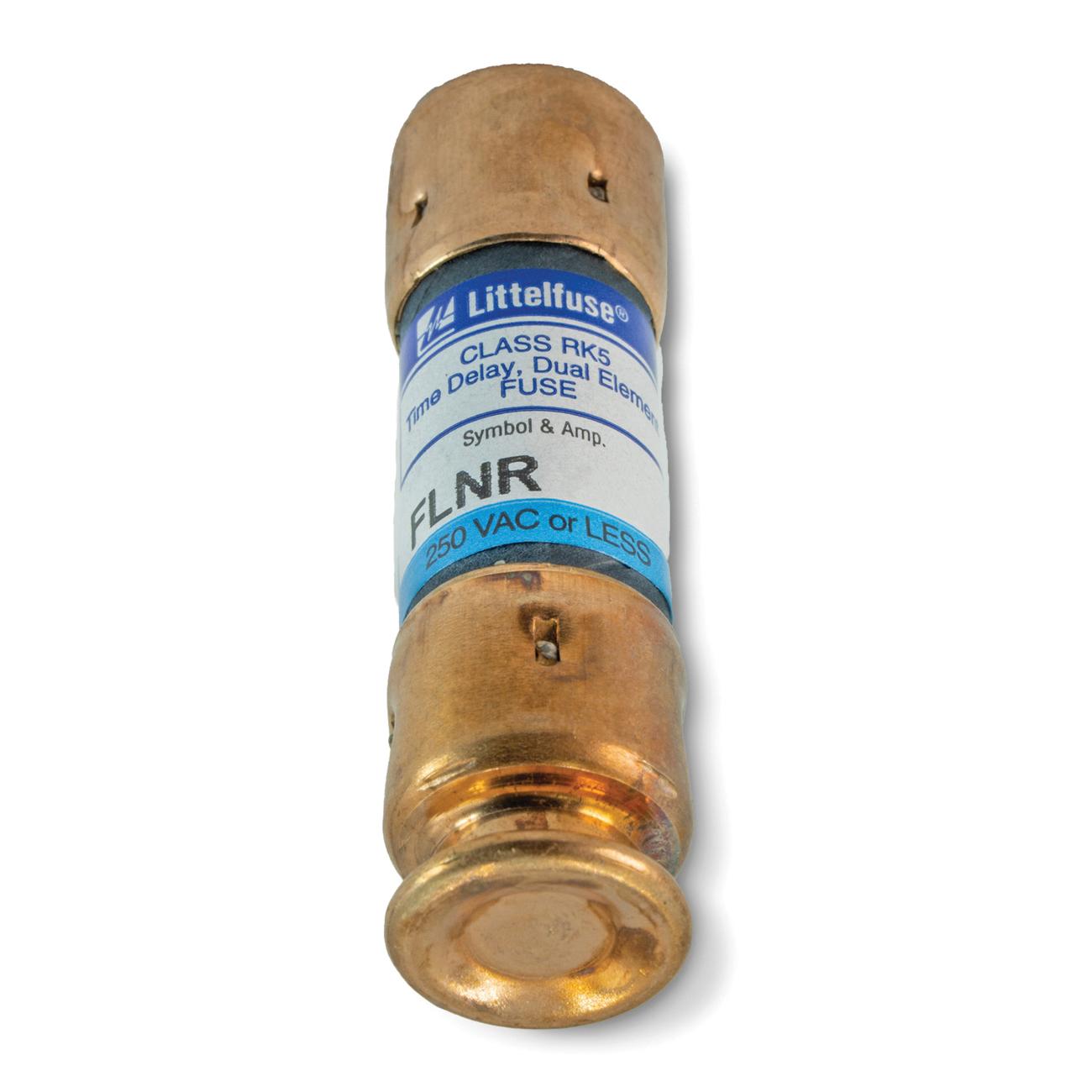

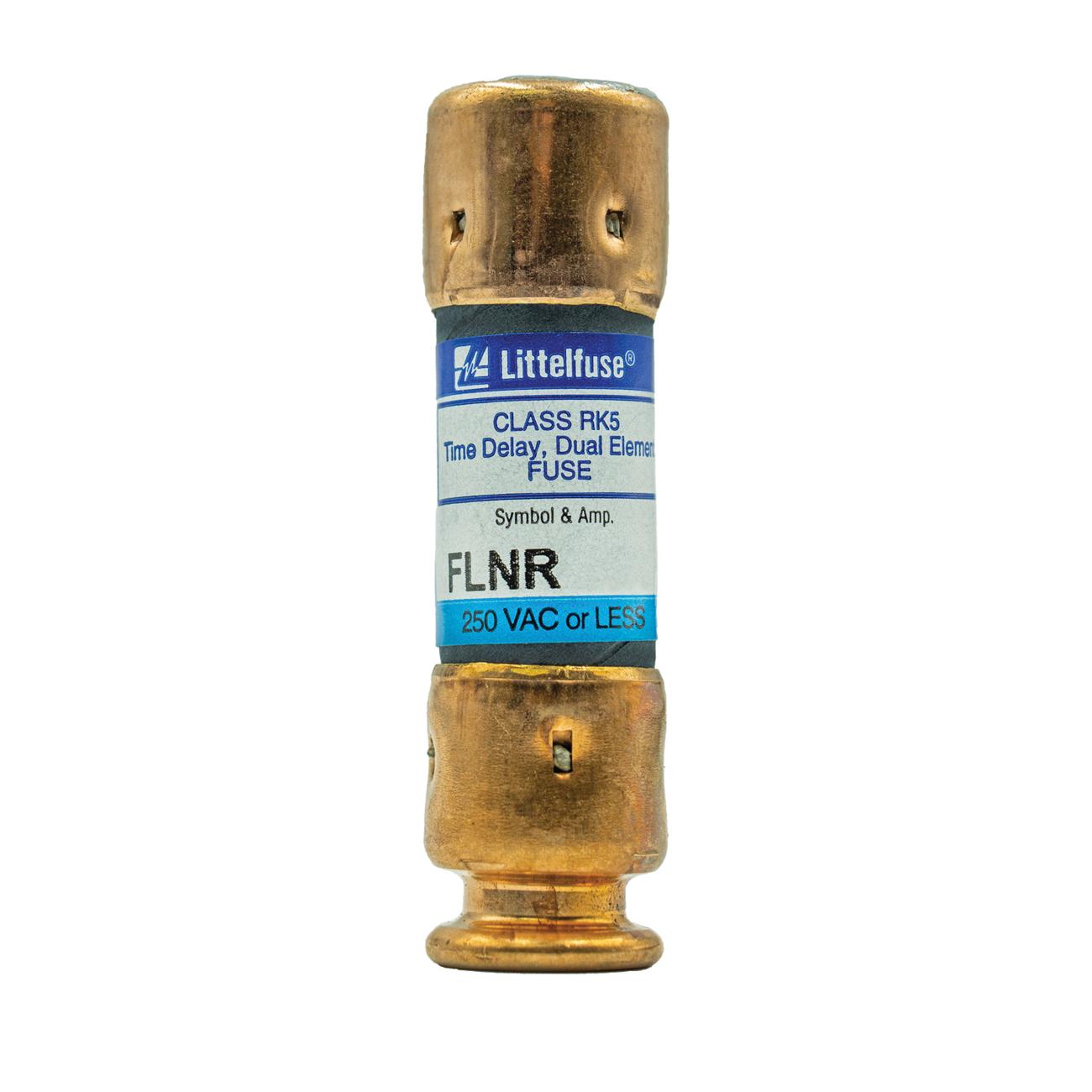

The FLNR Series sets the standard for general purpose fuses. The dual-element design provides advanced short-circuit and overload protection. These time-delay fuses are also available in an indicating version, see FLNR_ID series.
Littelfuse® Time Delay Fuse, Series: FLNR Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 VAC, 125 VDC, 10 A, Class: RK5, 300 kA AC, 20 kA DC Interrupt, 50/60 Hz, 10 s Response, Dual, Cartridge, Cylindrical Body Type, Ferrule Terminal, Clip, Fuse Block, Holder Mount, Fiber Body, 2 in Length, 0.56 in Dia
- Dual-element design - Provides advanced short-circuit and overload protection
- Current limiting - Restricts fault current to provide a high degree of circuit protection
