| Amperage Rating | : | 50 A |
| Class | : | CC |
| Element Type | : | Dual |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 20 to 200 kA |
| Series | : | CCMR Series |
| Voltage Rating | : | 600 VAC/250 VDC |
The CCMR Series dual-element, time-delay fuses carry the Littelfuse POWR-PRO® advanced technology designation. These fuses are ideal for space-saving protection of motor circuits up to 40 hp* and are specifically designed to withstand sustained starting currents of small motors. Their superior time-delay capability eliminates needless downtime caused by power surges or equipment demands. They provide Type 2 “No Damage” protection for both NEMA- and IEC-type motor circuit components. Rating for rating, CCMR Series fuses are the most current-limiting fuses available. POWR-PRO performance brand products offer advanced technology protection features such as high-interrupt capabilities up to 300 kA, low energy losses, and superior current limitation. 300 kA short-circuit testing for POWR-PRO products is self-certified and conducted at a nationally recognized testing laboratory.

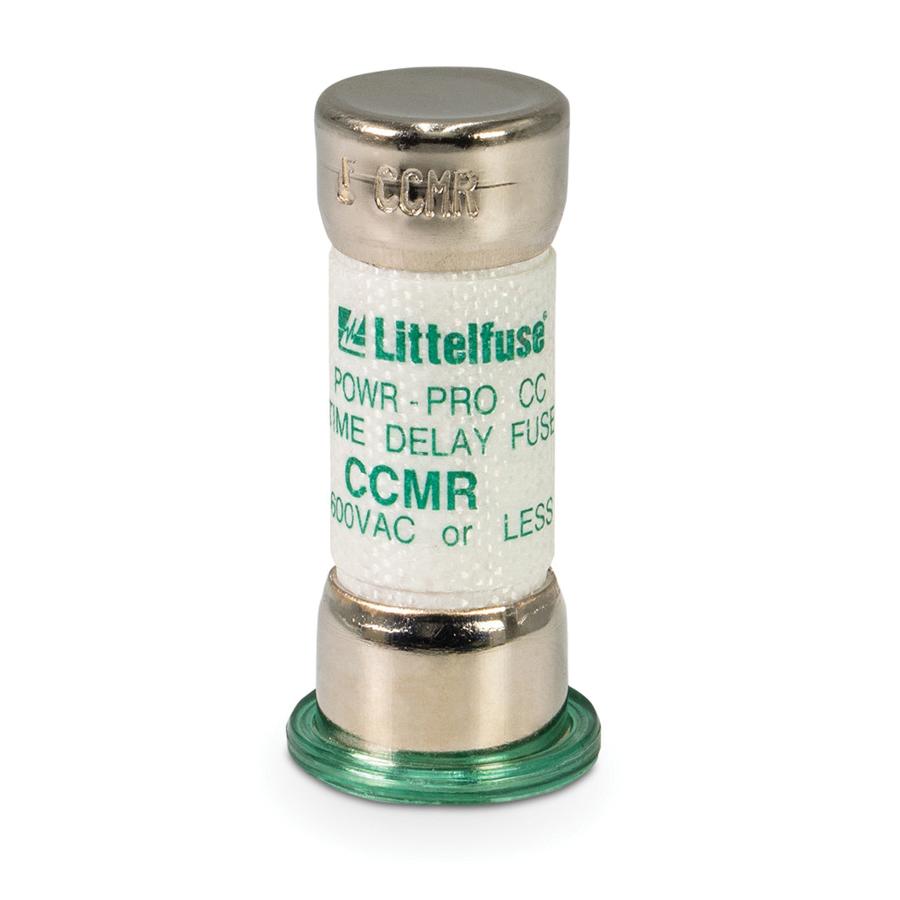

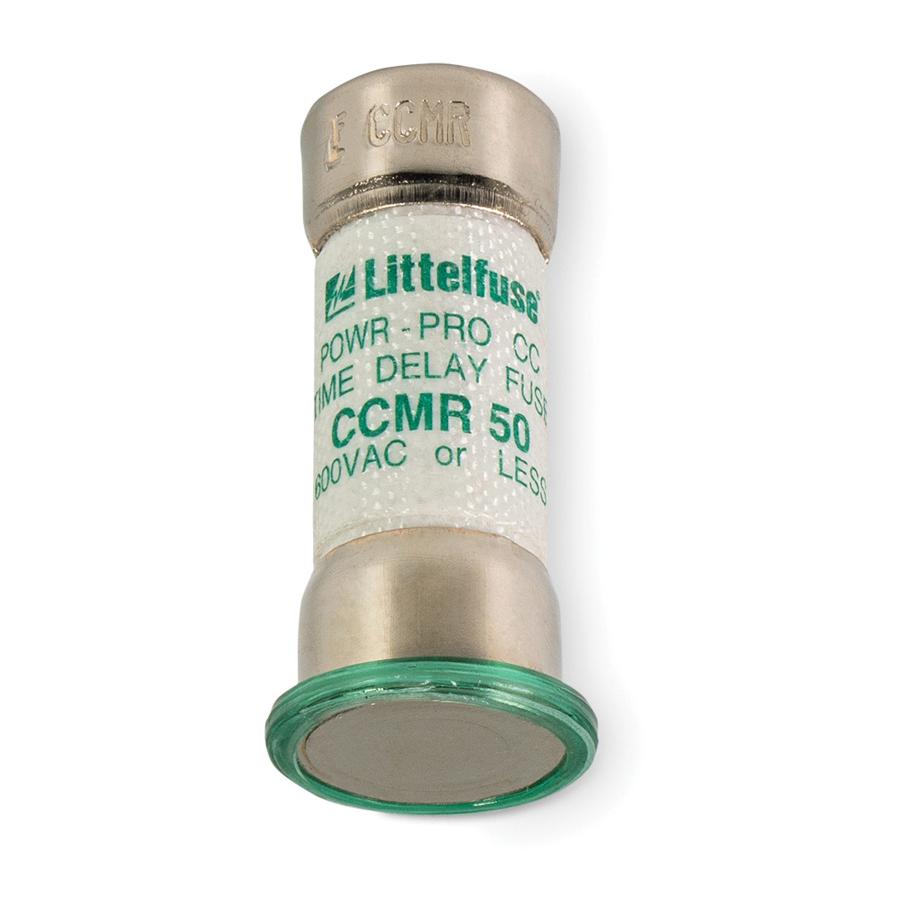

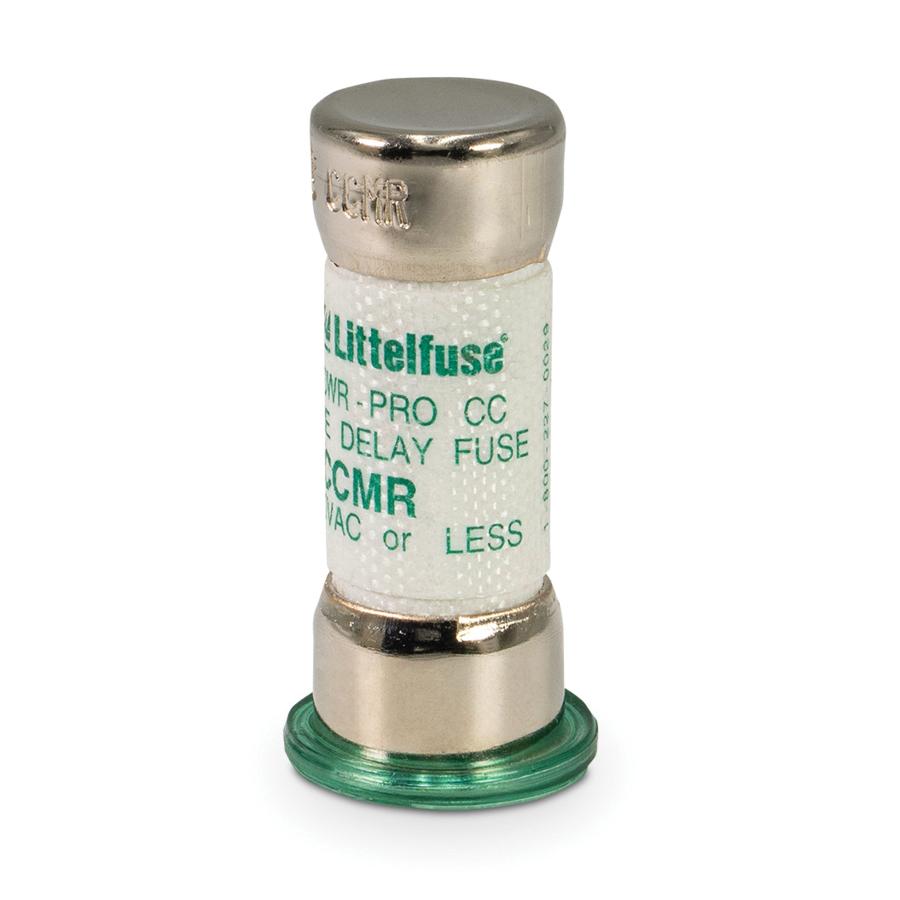

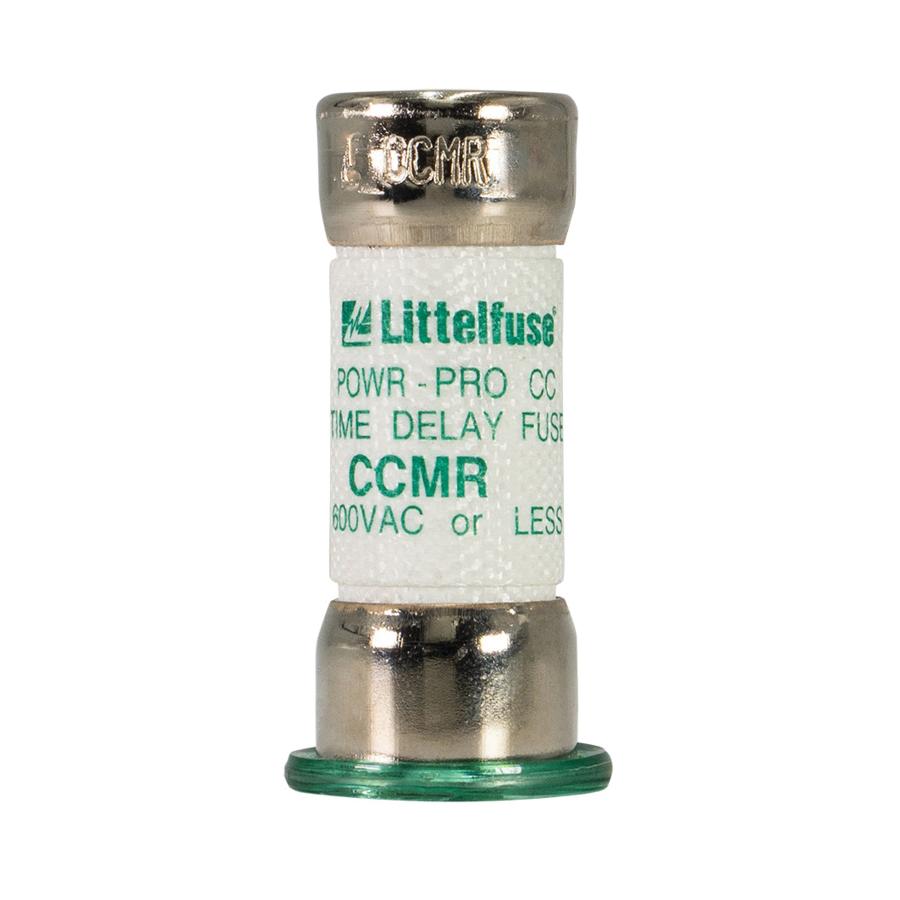

Littelfuse® Fuse, CCMR Series, Non-Indicating, 600 VAC/250 VDC, 50 A, Class: CC, 20 to 200 kA Interrupt Rating, Dual Element
- POWR-PRO® technology - Superior protection against electrical system damage
- Dual-element, time-delay protection - Provides reliable time-delay characteristics to avoid unwanted fuse opening from surge currents in small horsepower motors
- Extremely current-limiting - Reduces damage caused by heating and magnetic effects of short-circuit currents
- Available up to 60 A - Smallest footprint 600 V UL listed branch circuit fuse
- Type 2 “No Damage” protection - Easy to coordinate and offer protection for both NEMA- and IEC-type motor circuit components
