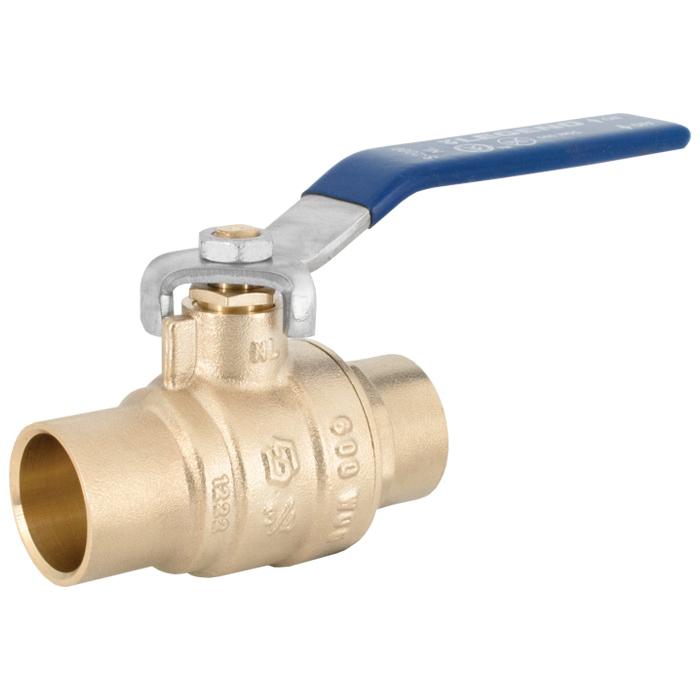

Legend Valve S-2000NL Series 101-424NL Ball Valve, 3/4 in, Solder, Brass, 150 psi WSP, 600 psi CWP

Legend Valve S-2000NL Series 101-424NL Ball Valve, 3/4 in, Solder, Brass, 150 psi WSP, 600 psi CWP

Brand: Legend Valve
Part #: 50683
Customer Part #:
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      Solder
Dimensions      :      2.76 in L
Domestic/Import      :      Domestic
Handle Material      :      Steel
Inlet to Outlet Length      :      2.76 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ANSI Z21.15, ANSI/ASME B16.33, ASME B16.44
Media      :      Gas, Water
Nominal Size      :      3/4 in
Opening Size      :      3/4 in
Operator Type      :      Lever Handle
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      150 psi WSP, 600 psi CWP
Seat Material      :      PTFE
Series      :      S-2000NL Series
Softgoods Material      :      EPDM/PTFE
Stem Material      :      Brass
Top to Inlet Center      :      1.9 in
Trim Material      :      Brass/PTFE

Legend Valve Ball Valve, S-2000NL Series, 3/4 in Nominal, Solder Connection, Full Port, 150 psi WSP, 600 psi CWP, Gas, Water Media, 2.76 in Inlet to Outlet Length, 1.9 in Top to Inlet Center, 3/4 in Opening, Lever Handle Operator, Material Standard: ANSI Z21.15, ANSI/ASME B16.33, ASME B16.44, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 2.76 in L, Domestic/Import: Domestic

  • Dezincification-resistant (DZR) forged brass construction resists corrosion from exposure to a wide variety of water conditions
  • Bottom loaded blowout-proof stem features a dual-seal PTFE packing and EPDM rubber O-ring design, assuring positive sealing under a multitude of conditions
  • Self-cleaning chrome-plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
  • Multiple certifications make the 2000NL Series a multi-purpose valve, suitable for new or repair installations of plumbing or gas systems
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Legend_Valve_101_423NL_Catalog.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Legend_Valve_101_423NL_Specification_Sheet.pdf
