| Amperage Rating | : | 15 A |
| BTU Rating | : | 12930 Btu/hr |
| Compressor Type | : | Scroll |
| Dimensions | : | 19-1/4 in H x 37-3/4 in W x 28-1/4 in D |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/15 hp |
| Material | : | Steel |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-404A, R-507 |
| Series | : | LZT Series |
| Sound Level | : | 71 dBA |
| Temperature Rating | : | 25 deg F, 95 deg F |
| Voltage Rating | : | 208-230 V |

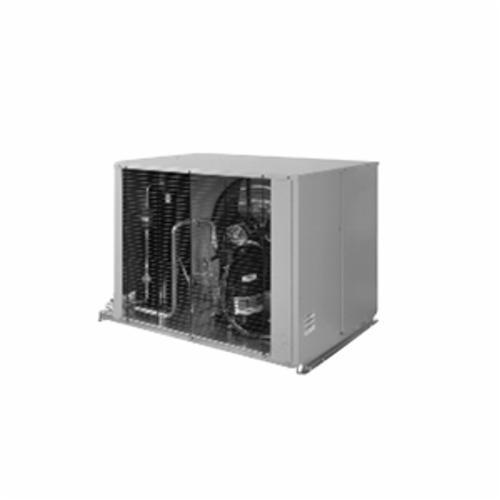

Larkin Condensing Unit, LZT Series, 12930 Btu/hr, 208-230 V, 15 A, 1/15 hp, 60 Hz, 3 ph Phase, Scroll Compressor, R-404A, R-507 Refrigerant, 71 dBA Sound Level, 25 deg F, 95 deg F, Steel, Finish: Painted, 19-1/4 in H x 37-3/4 in W x 28-1/4 in D
- Micro channel coil technology standard
- Painted steel cabinet for superior strength and corrosion protection
- Heavy-duty steel raised base with 1-1/2 in legs
- Fan guards and wiring conduit on indoor model
- Suction service valves for hermetic and scroll compressors located outside the cabinet for quick installations, semi-hermetic compressor model have a suction valve on the compressor and an access fitting on the suction line entering the cabinet
- Receiver with fusible plug, liquid shut-off valve and charging port is standard
- Large electrical panel for ease of access
- Pre-fabricated wiring harnesses for tight crimp connections and consistent labelling
- Unit stays on if the hood is removed for servicing
- Sight glass is easily viewable
- All units are completely leak tested in a helium environment, bump tested and allowed to cycle off on the high and low-pressure control, each unit has a copy of the run data shipped inside the electrical panel
- Electrical circuits are completely checked for continuity
- Piping is laid out to minimize stress and vibration and is pre-bent to eliminate leaks
- Encapsulated, auto-reset, high and low-pressure controls to eliminate leaks
- Medium temperature
- Horizontal air discharge
