| Additional Information | : | 8 to 13 psi Pressure Rating, Ball Joint Mounting |
| Dimensions | : | 4-1/2 in H x 4-1/2 in W |
| Domestic/Import | : | Domestic |
| Material | : | Glass-Filled Nylon/Neoprene |
| Series | : | MCP Series |
| Size | : | 3 in |
| Stroke | : | 3 in |
| Temperature Rating | : | -20 to 180 deg F |

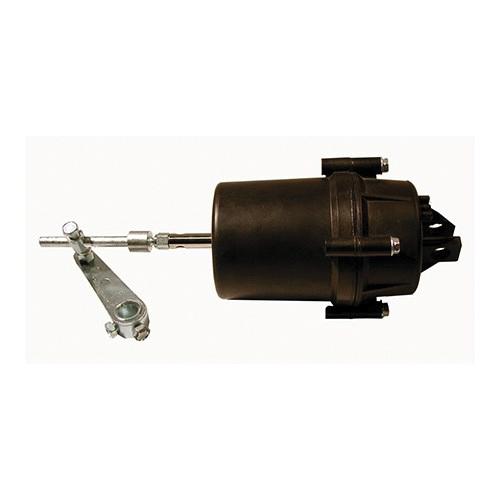

The KMC MCP-1030 and MCP-1130 Series 3 Pneumatic Damper Actuators are designed to position automatic air dampers in pneumatically controlled systems. The units may be used for gradual or two-position applications. Models are available with either post or right angle bracket mounting. Right angle models are shipped with crankarms for either 1/2 or 3/8 damper shafts. Either style is available with a factory mounted positive positioner. Actuators with positive positioners include an 8-13 psi internal spring and a 5 psi span spring. A 10 psi spring may be ordered separately.
KMC Controls® Pneumatic Damper Actuator, MCP Series, 3 in, 3 in Stroke, -20 to 180 deg F, Glass-Filled Nylon/Neoprene, 4-1/2 in H x 4-1/2 in W, Domestic/Import: Domestic, Additional Information: 8 to 13 psi Pressure Rating, Ball Joint Mounting
- Allows gradual or two-position operation
- Variety of spring ranges, mounting brackets, and linkages provide flexibility
- Post or right-angle mounting options
