| Amperage Rating | : | 1.16 A |
| Circuit Type | : | HX-HPF |
| Dimmable/Non-Dimmable | : | Non-Dimmable |
| Frequency Rating | : | 60 Hz |
| Height | : | 3.94 in |
| Input Wattage | : | 100 W |
| Lamp Type | : | High Pressure Sodium |
| Lamp Wattage | : | 100 W |
| Length | : | 2.8 in |
| Minimum Starting Temperature | : | -40 deg C |
| Start Type | : | Probe |
| Voltage Rating | : | 120/208/240/277 V |
| Width | : | 3.35 in |

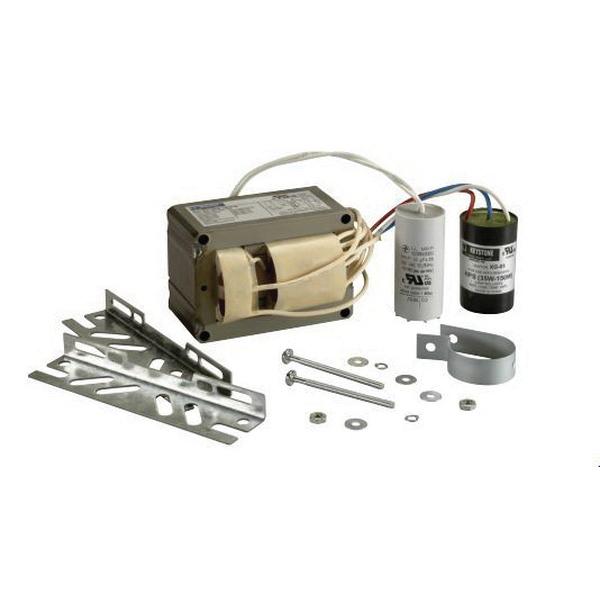

KEYSTONE offers a variety of HID ballast kits. Known for dependability and superior efficiency, KEYSTONE's HID ballasts are perfectly suited for even the most demanding HID lighting applications. KEYSTONE utilizes sophisticated quality control and manufacturing processes to guarantee solid performance in the field. Each kit includes the HID ballast pre-wired to a properly rated capacitor and ignitor (if required), mounting hardware and a visual installation guide.
KEYSTONE Quad Tap Ballast Kit, High Pressure Sodium Lamp, 100 W Lamp, 100 W Input Wattage, 120/208/240/277 V, 1.16 A, 60 Hz, Probe Start, -40 deg C Minimum Starting, Non-Dimmable Dimmable/Non-Dimmable, HX-HPF, 2.8 in Length, 3.35 in Width, 3.94 in Height
- Regulation 5%
- Insulation class 180 deg C
- Capacitor of 10 mF
- Capacitor voltage rating 280 V
- Capacitor temperature rating 90 deg C
- Winding materials Cu/Cu
- Maximum distance to lamp 10 ft
