| Amperage Rating | : | 21.8 A |
| CFM Rating | : | 1000 cfm |
| Compressor Type | : | Scroll |
| Cooling BTU Rating | : | 28600 Btu/hr Cooling |
| Dimensions | : | 41 in W x 51 in D x 34 in H |
| EER Rating | : | 11.3 |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HP Rating | : | 1/2 hp |
| HSPF Rating | : | 7.7 |
| Heating BTU Rating | : | 28000 Btu/hr Heating |
| Material | : | Steel |
| Model | : | PHM330 |
| Nominal Capacity | : | 2.5 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-22 |
| Rotational Speed | : | 1050 rpm |
| SEER Rating | : | 13.2 |
| Series | : | PHM3 |
| Sound Level | : | 75 dBA |
| Voltage Rating | : | 208/230 VAC |

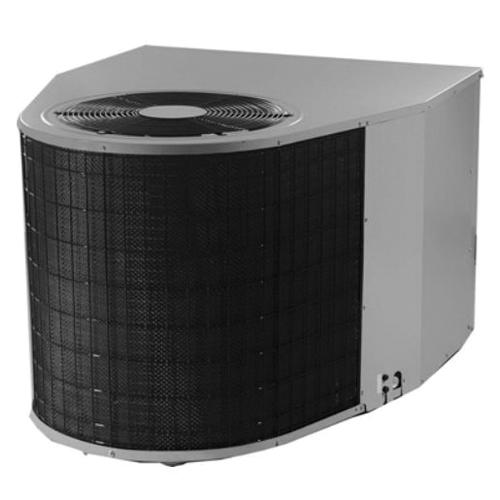

KeepRite® Package Heat Pump, Series: PHM3, Model: PHM330, 2.5 ton Nominal Capacity, 28600 Btu/hr Cooling BTU, 28000 Btu/hr heating BTU, 208/230 VAC, 21.8 A, 1/2 hp, 60 Hz, 1 ph Phase, 1050 rpm Rotational Speed, Scroll Compressor, 1000 cfm, 13.2 SEER, 7.7 HSPF, 11.3 EER Rating, R-22 Refrigerant, 1 Stage, 30 A Fuse Rating, 75 dBA Sound Level, Steel, Painted, 41 in W x 51 in D x 34 in H
- Sales model digit
- Tin-coated copper tubing evaporator coil for additional corrosion protection
- Thermostatic expansion valve (TXV) on select models controls refrigerant flow
- Higher efficiency indoor motors on all models
- One-piece weather-resistant top access panels for easy service, side by side supply and return
- Triple coated steel, consisting of a polyester top coat, a urethane primer coat preceded by an oxide pre-treatment
- Drawn fan orifice and swept fan blades on all models
- New drain pan cover and enclosed control box
- Combination electric cooling and heat, self-contained for year-round comfort
- Externally mounted gauge ports allows for more accurate reading of operating conditions while servicing
- Electrical controls located behind one exterior panel for easier maintenance
- Round duct flanges for easy flex duct connection
- 5 years limited parts warranty
