| Body Material | : | Brass |
| Connection Type | : | NPT |
| Dimensions | : | 6-3/4 in H x 1-1/2 in D |
| Flow Rate | : | 2.5 gpm |
| Inlet to Outlet Length | : | 2-5/8 in |
| Media | : | Water |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 170 deg F |
The V46 is a pressure actuated modulating valve that is suitable for use either on closed or open systems. Direct acting valves open on pressure increase. This type of valve is primarily used to regulate the flow of water or glycol to a water cooled condenser on a refrigeration system.

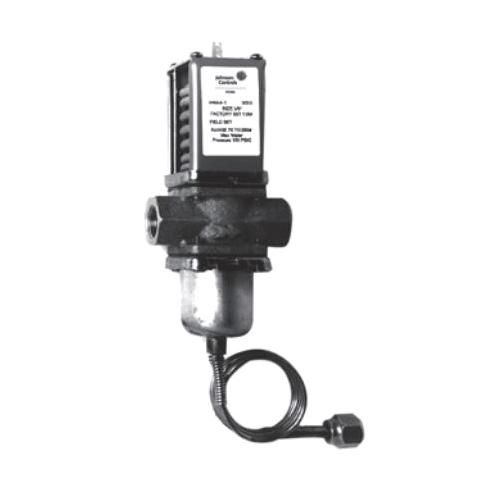

Johnson Controls Penn Pressure Actuated Water Regulating Valve, 3/8 in Nominal, NPT Connection, 150 psi, 2.5 gpm Flow Rate, Water Media, 2-5/8 in Inlet to Outlet Length, Brass Body, 170 deg F, 6-3/4 in H x 1-1/2 in D
- No close fitting or sliding parts in water passages
- Minimizes chatter or water hammer
- Free movement of all parts provides smooth pressure modulation
- Refrigerant adjustment is not affected by water pressure
- Withstands high hydraulic shock without damage
- Range spring does not come in contact with cooling water
- Easy manual flushing, if required
- 3/8, 1/2 and 3/4 in valves may be disassembled and reassembled without detaching from the refrigeration system or without pumping down
- Commercial type, standard flow-non-corrosive refrigerants (R12, R22, R134a, R502, R404a, R507)
- Standard capillary length on-style 45 elements is 30 in, 1/4 in flare nut
- Low water flow valve-2.5 gal/min max
- 70-260 psi opening point range
