| Color | : | Gray |
| Connection Type | : | 1/4 in SAE Male Flared |
| Contact Rating | : | Time Delay Heater Circuit:120/240 VAC, 24 VAC/VDC, Pilot Circuit:750 V-A at 120/240 VAC, 120 V-A at 24 VAC, 57.5 V-A at 24 VDC |
| Dimensions | : | 3-1/4 in L x 5-5/8 in W x 2-3/8 in H |
| Finish | : | Baked Enamel |
| Pressure Rating | : | Factory Setting: Fixed 9 lb/sq-in, Bellows: 425 lbf/sq-in Maximum |
| Series | : | P45 Series |
| Voltage Rating | : | 120/240 VAC |

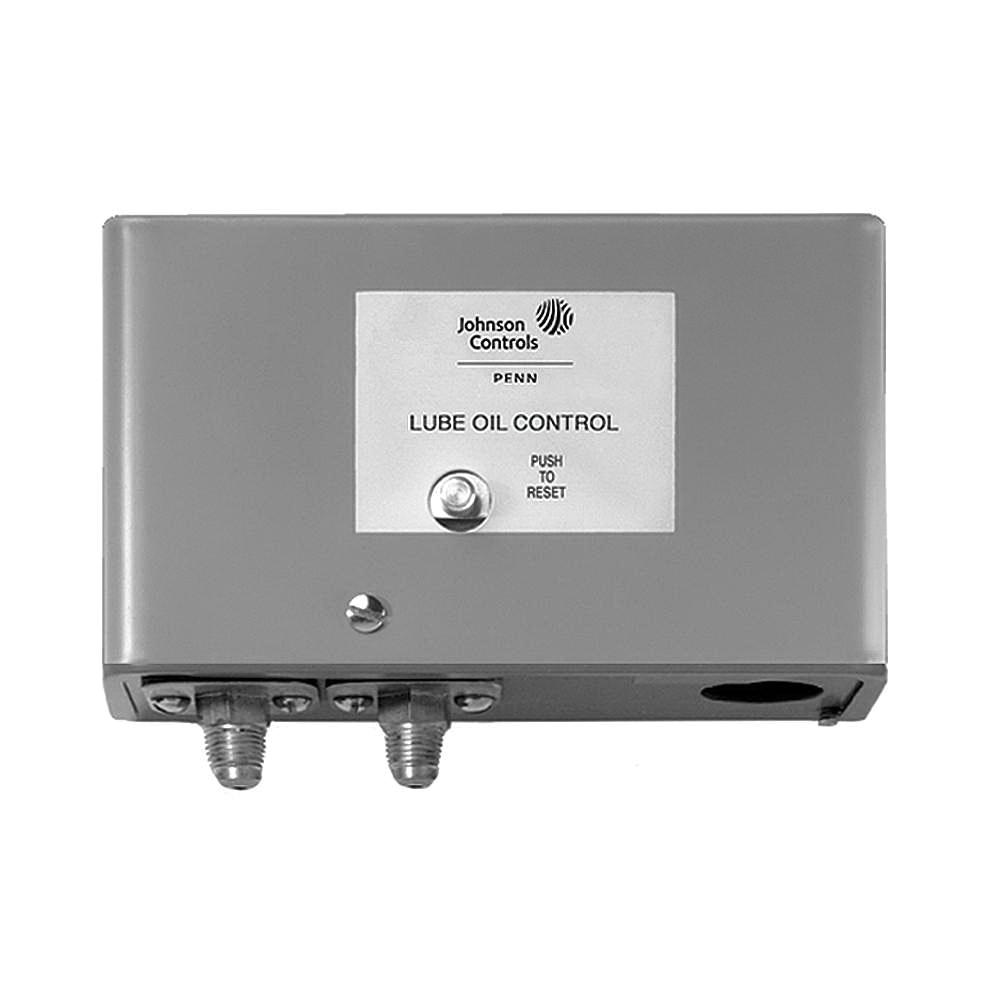

Johnson Controls Penn Lube Oil Pressure Control With Time Delay, P45 Series, 120/240 VAC, 1/4 in SAE Male Flared Connection, Factory Setting: Fixed 9 lb/sq-in, Bellows: 425 lbf/sq-in Maximum, Time Delay Heater Circuit:120/240 VAC, 24 VAC/VDC, Pilot Circuit:750 V-A at 120/240 VAC, 120 V-A at 24 VAC, 57.5 V-A at 24 VDC Contact Rating, Finish: Baked Enamel, Gray, 3-1/4 in L x 5-5/8 in W x 2-3/8 in H
- Provides dependable, low lube oil pressure protection
- A built-in time delay relay, compensated for ambient temperature, allows for pressure pick-up on start and avoids nuisance shutdowns on short duration pressure losses during the running cycle
- Ambient compensated time delay
- Time delay - 120 sec
- Universal-mounting
