| Capillary Length | : | 6.5 ft |
| Configuration | : | SPDT |
| Contact Rating | : | 15 A, 1hp (NO)/10 A 0.25 hp (NC) at 120 VAC Non-Inductive, 16 A, 1 hp (NO)/5.8 A, 0.25 hp (NC) Full Load at 120 VAC, 96 A, 1 hp (NO)/34.8 A, 0.25 hp (NC) Locked Rotor at 120 AVC |
| Differential Temperature | : | 1 - 30 deg F |
| Display Type | : | Digital |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Sensor Type | : | A99BB Type PTC Sensor |
| Series | : | A419 |
| Stages | : | 1 |
| Temperature Rating | : | -26 to 140 deg F |
| Temperature Settings | : | -30 to 212 deg F |
| Voltage Rating | : | 24/120/208/240 VAC |

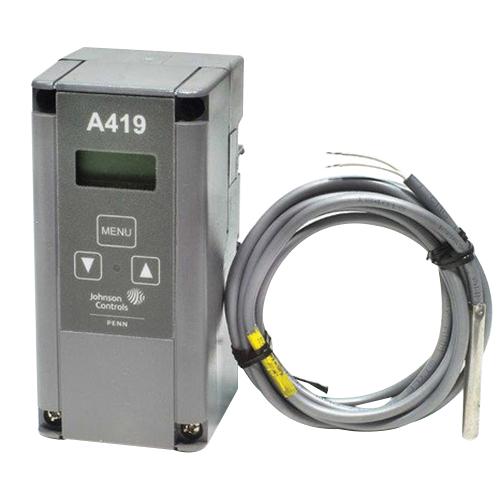

Johnson Controls Temperature Control with Display and Sensor, Series: A419, 24/120/208/240 VAC, A99BB Type PTC Sensor Sensor, Configuration: SPDT, 1 Stages, 6.5 ft Capillary Length, 50/60 Hz, 15 A, 1hp (NO)/10 A 0.25 hp (NC) at 120 VAC Non-Inductive, 16 A, 1 hp (NO)/5.8 A, 0.25 hp (NC) Full Load at 120 VAC, 96 A, 1 hp (NO)/34.8 A, 0.25 hp (NC) Locked Rotor at 120 AVC Contact, Digital Display, 1 - 30 deg F Differential, Temperature Settings: -30 to 212 deg F, NEMA 1 Enclosure, -26 to 140 deg F
- Easy to read front panel LCD displays sense the temperature and control function status clearly, custom icons on the display indicate the control and system status at a glance
- Wide temperature differential adjustment range allows the user to set a precise 1 deg F temperature differential from 1 - 30 deg F providing a much tighter differential than electromechanical controls
- Adjustable anti-short cycle delay 0 - 12 min in 1 min increments ensures that the output relay remains off for a user set time delay, which helps avoid hard starts, nuisance overload outages and unnecessary equipment wear
- Switch activated temperature offset function allows the user to shift the cut-in and cut-out setpoints by and adjustable offset based on the status of a user installed, external switch, such as a time clock
- High impact, thermoplastic NEMA 1 enclosures increase application options, allowing surface and snap-fit DIN rail-mount
- Lockable front panel touchpad allows easy set up and adjustment of the A419 control setpoint, differential and other functions, a concealed jumper locks the touchpad and deters unauthorized adjustment of the control settings
- 1.8 V-A maximum power consumption
