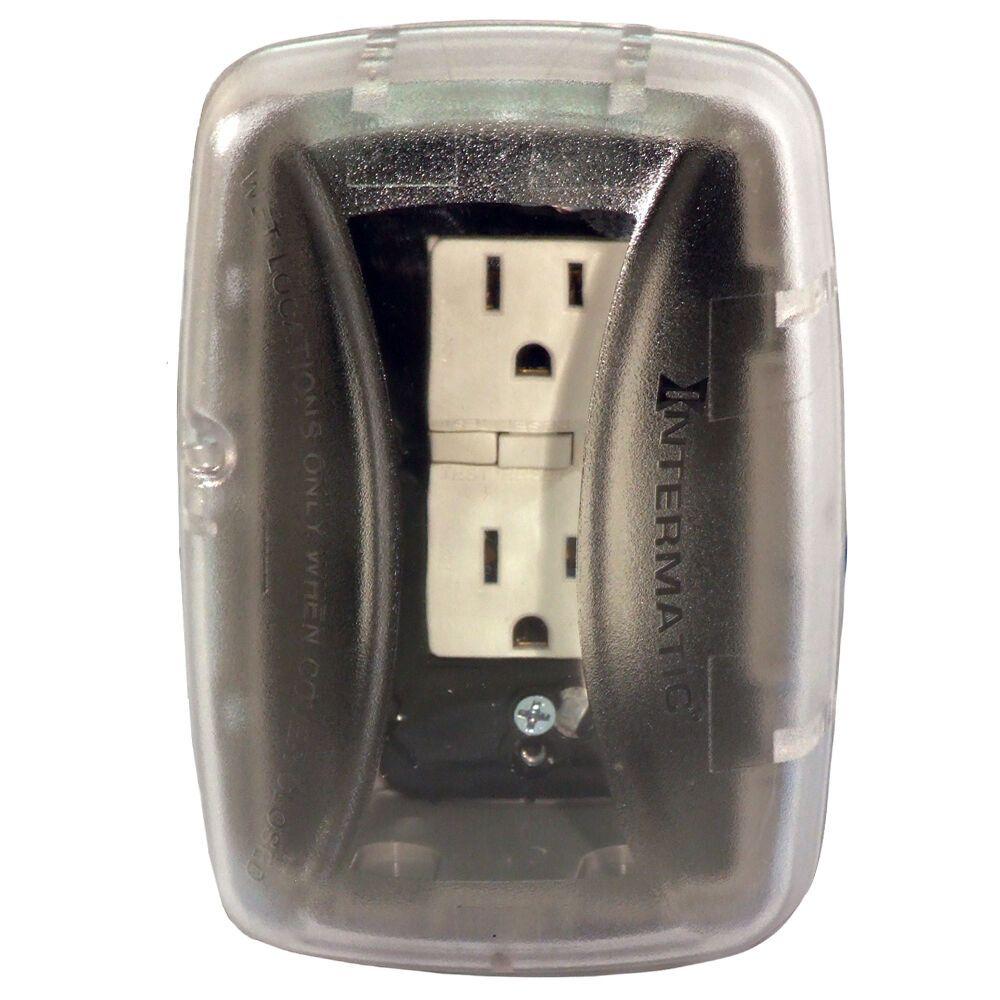

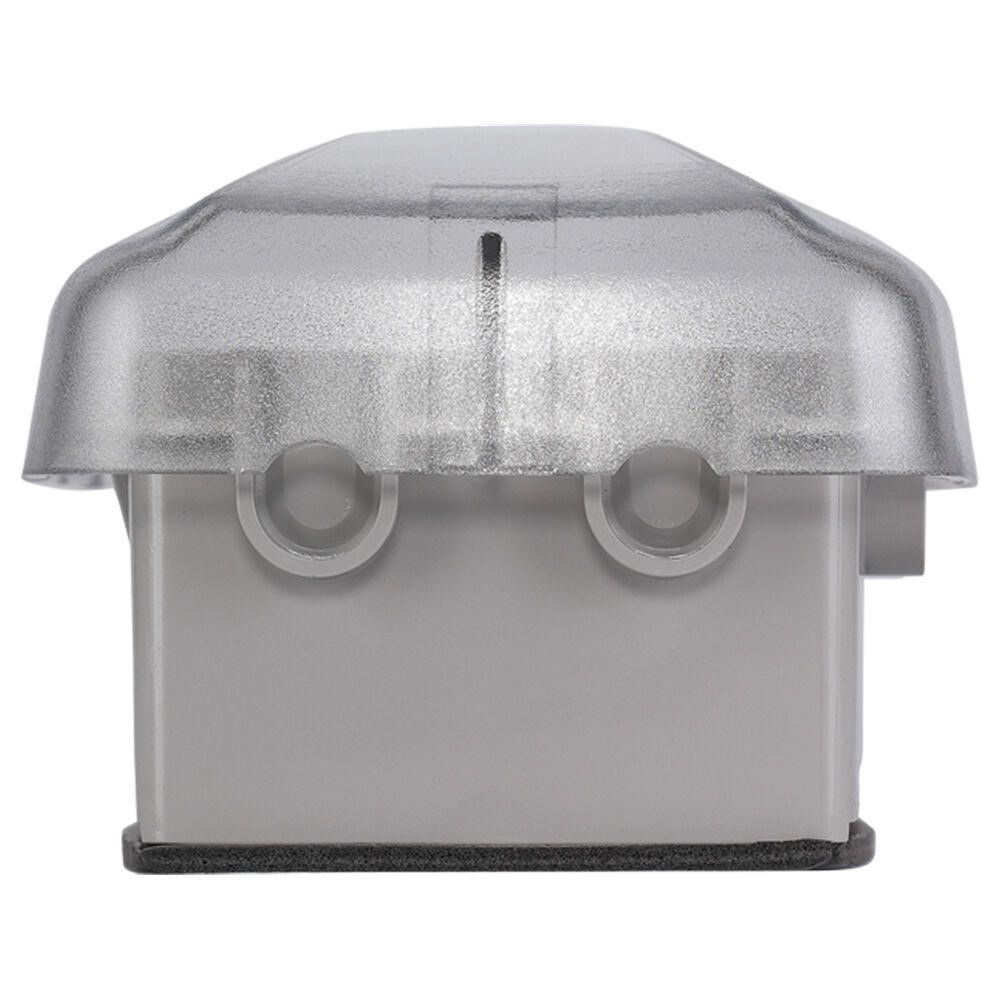

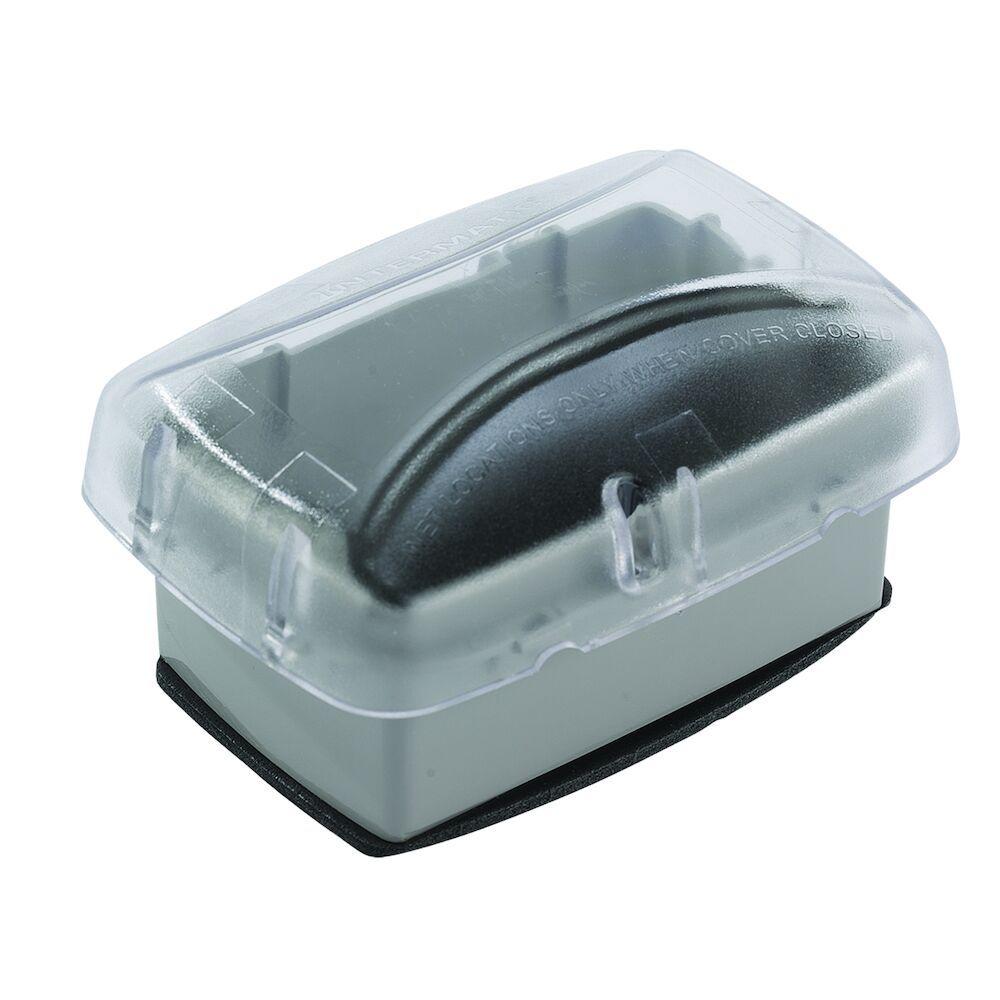

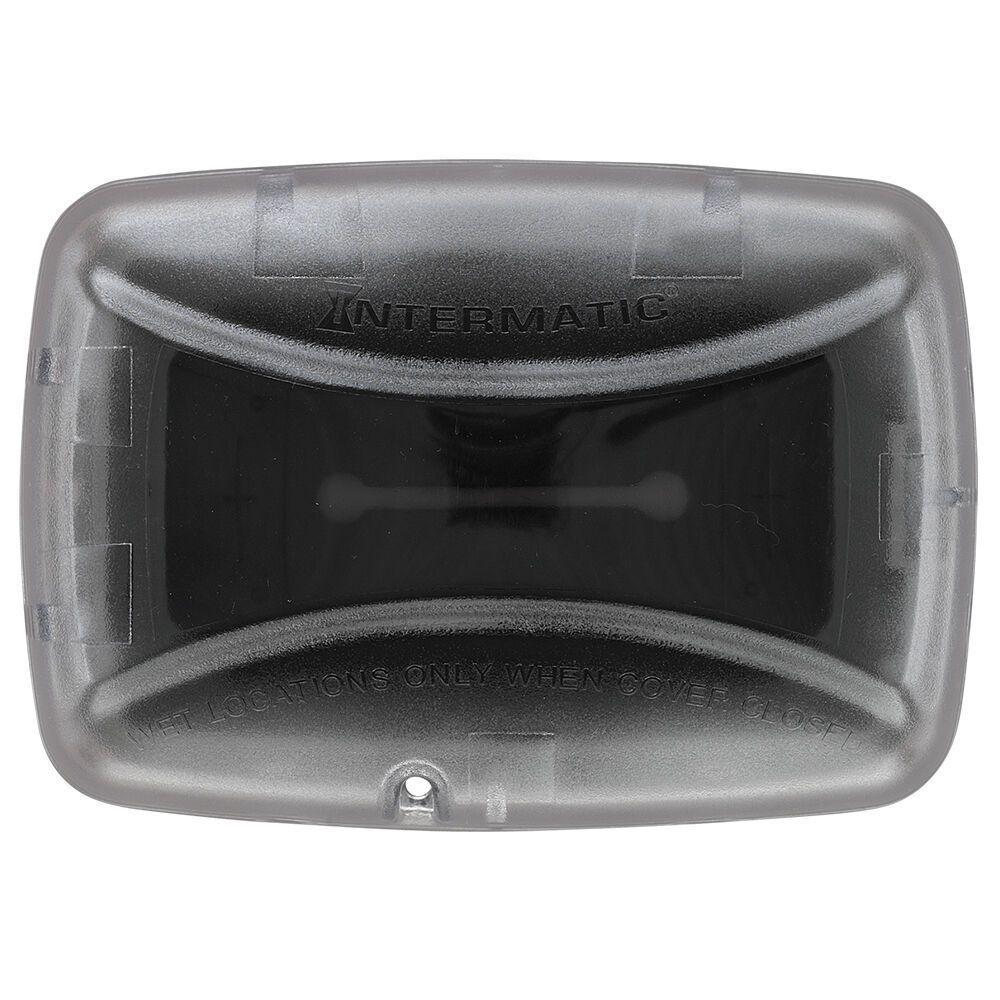

Intermatic® WP3100C In-Use Weather-Proof Cover, 1 -Gang, 1 -Outlet, Polycarbonate Cover

Intermatic® WP3100C In-Use Weather-Proof Cover, 1 -Gang, 1 -Outlet, Polycarbonate Cover

Brand: Intermatic®
Part #: 25634
Customer Part #:
Color      :      Clear
Cover Material      :      Polycarbonate
Depth      :      5-3/4 in
Gasket Material      :      Neoprene
Length      :      4 in
Mounting Orientation      :      Horizontal, Vertical
Mounting Type      :      Surface
Number of Gangs      :      1
Number of Outlets      :      1
Shape      :      Rectangular
Temperature Rating      :      -51 deg C
Width      :      2-3/4 in

Plastic in-use weather-proof covers are easy-to-install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Intermatic® In-Use Weather-Proof Cover, 1 Outlets, 1 Gangs, 4 in Length, 2-3/4 in Width, 5-3/4 in D, Rectangular Shape, -51 deg C, Surface Mount, Horizontal, Vertical Mount, Polycarbonate Cover, Neoprene Gasket, Clear

  • Meets requirements for cold impact testing -60 deg F
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1/8 in THK, neoprene gasket with slits for mounting screws
  • Lockable hasp, accept up to 1/4 in Dia shank
  • Max cord size - (2) #14 AWG or (1) #12 AWG
