| Amperage Rating | : | 40 A |
| Contact Configuration | : | 4PST |
| Dimensions | : | 333.3 mm H x 228.9 mm W x 95.25 mm D |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Pilot Duty Rating | : | 1000 VA |
| Power Rating | : | 10 hp, 2 hp, 3W, 5 hp, 7-1/2 hp |
| Series | : | T7000B Series |
| Switch Rating | : | 40 A at 120 to 277 VAC Inductive, 40 A at 120 to 480 VAC Resistive, Tungsten |
| Temperature Rating | : | -40 to 130 deg F |
| Timing Range | : | 7 days |
| Voltage Rating | : | 120 V |
| Wire Size | : | 14 to 8 AWG |

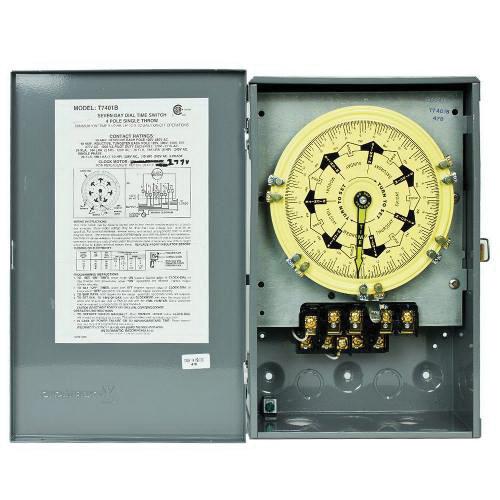

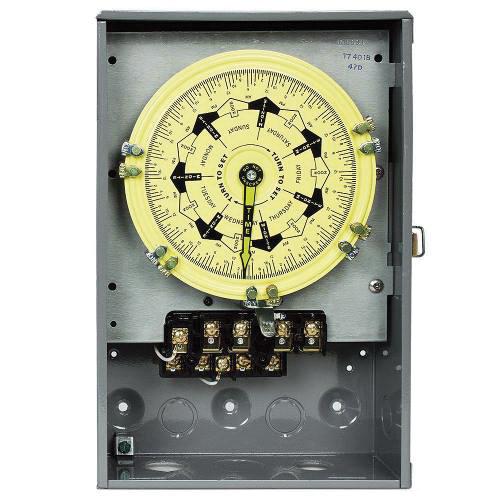

Intermatic® Time Switch, Series: T7000B Series, 120 V, 40 A, 60 Hz, 10 hp, 2 hp, 3W, 5 hp, 7-1/2 hp, 4PST, 7 days, Switch Rating: 40 A at 120 to 277 VAC Inductive, 40 A at 120 to 480 VAC Resistive, Tungsten, Pilot Duty: 1000 VA, 14 to 8 AWG Wire, NEMA 1, Steel, -40 to 130 deg F, 333.3 mm H x 228.9 mm W x 95.25 mm D
- Different on/off programs each day of the week
- True seven-day load control with minimum on/off time of 3-1/2 hr
- Separate clock motor terminals for switching loads not on line voltage
- Carry-over automatically rewinds when power resumes
- Minimum of 16 hr carry-over for maintaining preset schedules during power failures
- 28 maximum on/off operations
- 16 A at 277 VAC, 60 Hz electronic ballast
- 3.5 hr minimum on/off time
- These time switches can handle up to 4 loads per clock, providing a 1-control for easier installation
- Each time switch comes with seven on and seven off trippers, allowing for at least one on/off operation each day
- One year warranty
- Combination 1/2 - 3/4 in nominal knockouts, (2) on back and (1) on side and (2) on bottom, 1 in knockout on bottom
