| Height | : | 4-3/16 in |
| Interrupt Rating | : | 100 kA |
| Length | : | 3-7/16 in |
| Material | : | Metal |
| Phase | : | 1 ph |
| Series | : | IG Series |
| Temperature Rating | : | -31 to 185 deg F |
| Voltage Rating | : | 120/240 VAC |
| Width | : | 4-3/16 in |
| Wire Size | : | 12 AWG |

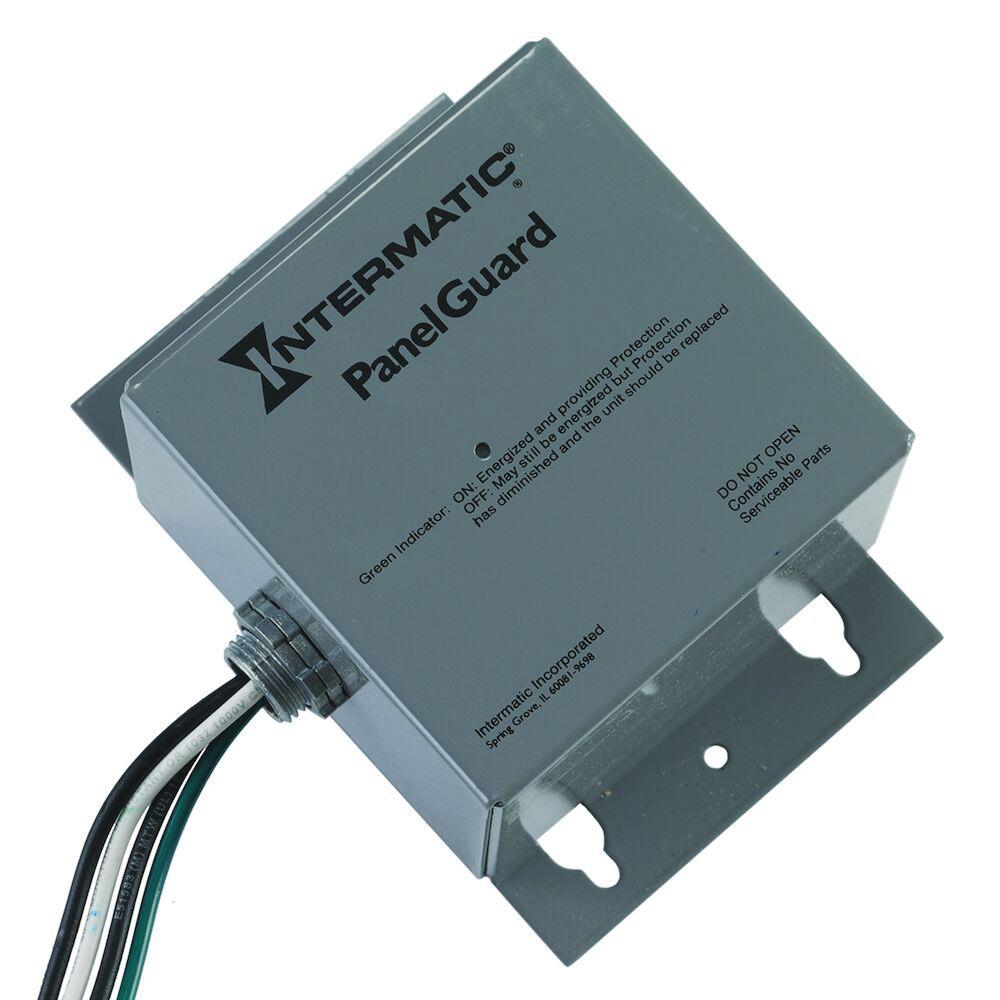

The IG Series surge protective devices (SPD) are designed for a variety of applications. A green LED indicator provides status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances.
Intermatic® Surge Protective Device, IG Series, 120/240 VAC, 100 kA Interrupt Rating, 1 ph Phase, 12 AWG Wire, -31 to 185 deg F, Metal, 3-7/16 in Length, 4-3/16 in Width, 4-3/16 in Height
- Six modes of surge protection
- Type 3R rain-proof enclosure for indoor/outdoor applications in plastic
