| Additional Information | : | 20 kA Discharge Current |
| Color | : | Gray |
| Height | : | 4.188 in |
| ItemConnectedEquipmentWarrantyCoverage | : | 7500 |
| ItemConnectedEquipmentWarrantyPeriod_en | : | 3-Year limited |
| ItemEnclosureType_en | : | Outdoor type 3R plastic |
| ItemLEDSurgeProtectionIndicator_en | : | Green |
| ItemMarket_en | : | Residential |
| ItemMaximumContinuousOperatingVoltageLL_en | : | 300 |
| ItemMaximumContinuousOperatingVoltageLN_en | : | 150 |
| ItemMaximumSurgeCurrentRatingPerPhase_en | : | 50 kA |
| ItemModesOfProtection_en | : | 3 (L1-N, L2-N, L1-L2) |
| ItemNominalDischargeCurrent_en | : | 20 kA |
| ItemNumberOfPowerPhases_en | : | Single |
| ItemNumberOfWireLeads | : | 3 |
| ItemOperatingTemperatureMaxC | : | 85 |
| ItemOperatingTemperatureMaxF | : | 185 |
| ItemOperatingTemperatureMinC | : | -35 |
| ItemOperatingTemperatureMinF | : | -31 |
| ItemProductDepthIn | : | 3 7/16 |
| ItemProductDepthMm | : | 87.3 |
| ItemProductHeightIn | : | 4 3/16 |
| ItemProductHeightMm | : | 106.4 |
| ItemProductWidthIn | : | 4 3/16 |
| ItemProductWidthMm | : | 106.4 |
| ItemShortCircuitCurrentRating_en | : | 100 kA |
| ItemSurgeProtectionTechnology_en | : | TPMOV® |
| ItemSurgeProtectionTypes_en | : | 1, 2 |
| ItemVoltageProtectionRatingL1NG_en | : | 700 |
| ItemVoltageProtectionRatingLL_en | : | 1200 |
| ItemVoltage_en | : | 120/240 VAC Single-Phase |
| ItemWireLeadLengthIn | : | 30 |
| ItemWireLeadLengthMm | : | 762 |
| ItemWireSizeMax_en | : | #12 AWG, Tinned Copper |
| ItemWiringOption_en | : | Wire leads |
| Length | : | 3.438 in |
| Material | : | Plastic |
| Phase | : | 1 ph |
| Temperature Rating | : | -31 to 185 deg F |
| Voltage Rating | : | 120/240 VAC |
| Width | : | 4.188 in |
| Wire Size | : | #12 AWG |

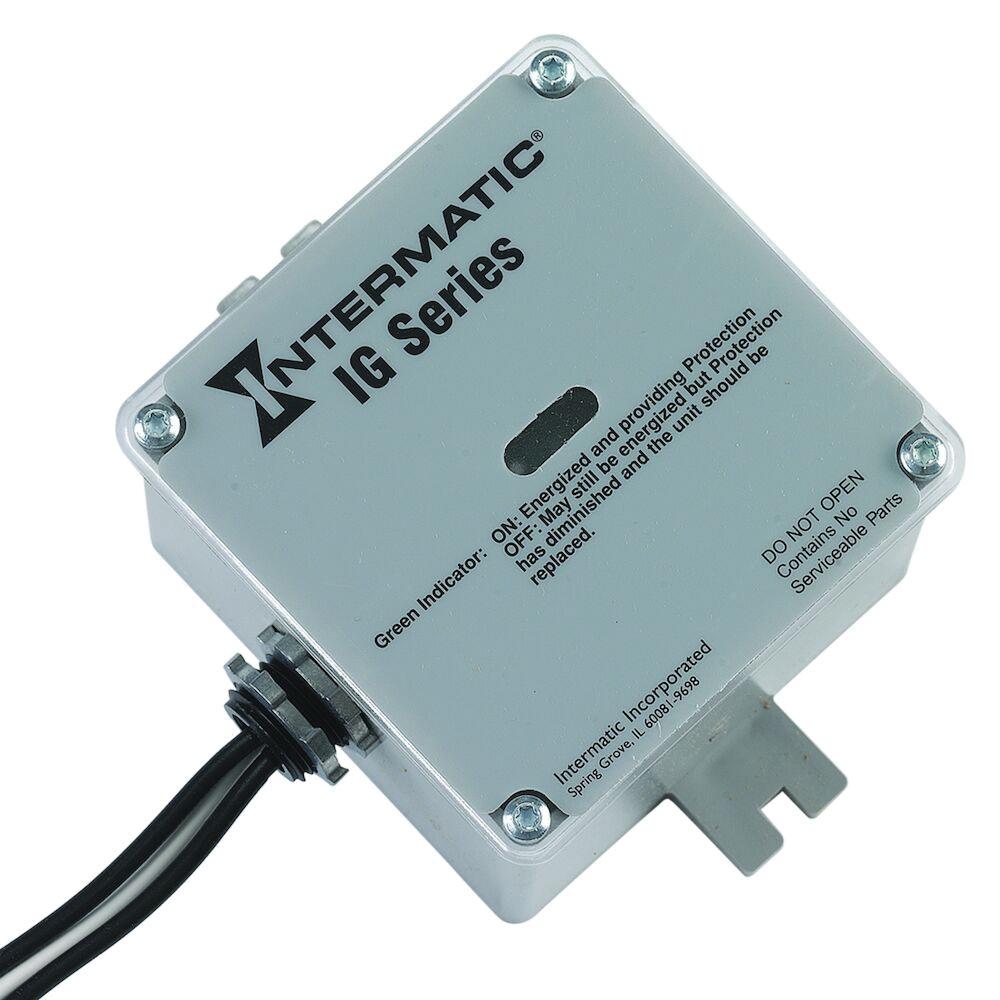

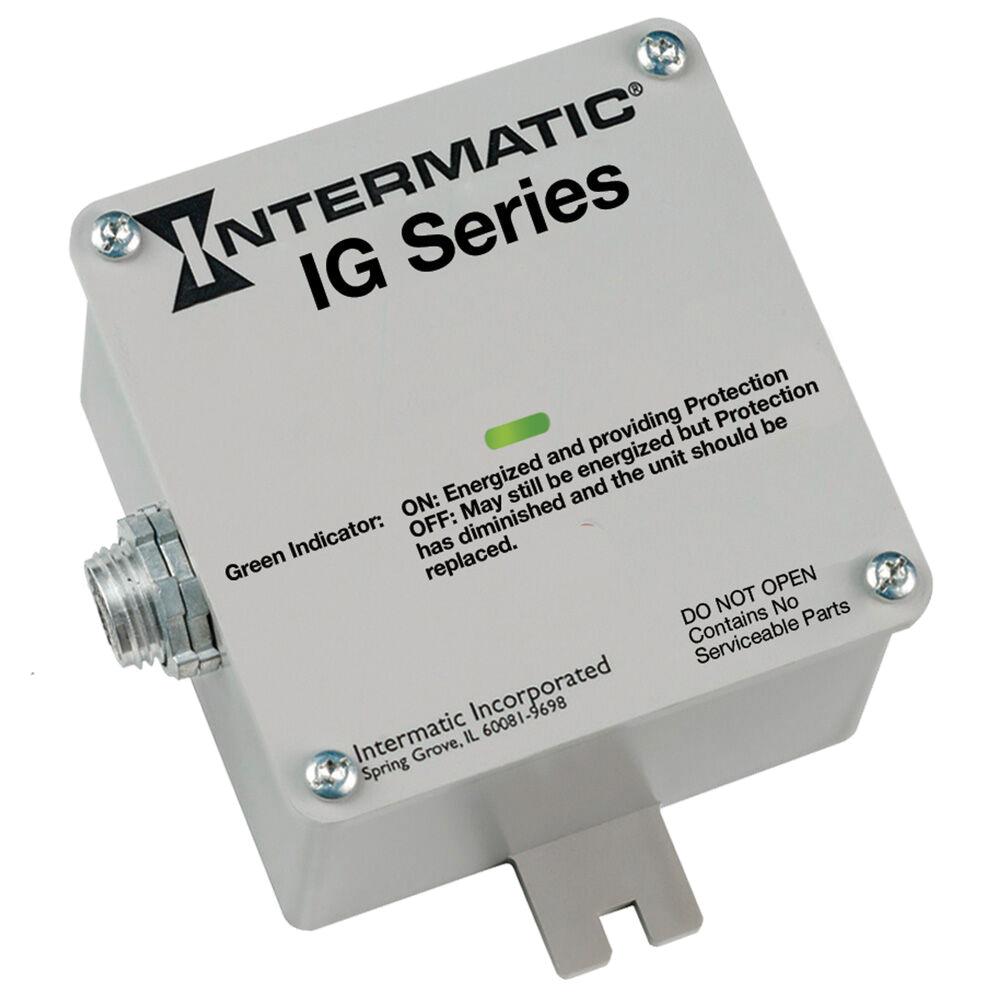

The IG1200 Surge Protective Device (SPD) is designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology.
Intermatic® Surge Protective Device, 120/240 VAC, 1 ph Phase, #12 AWG Wire, -31 to 185 deg F, Plastic, Gray, 3.438 in Length, 4.188 in Width, 4.188 in Height, Additional Information: 20 kA Discharge Current
- Three modes of surge protection
- TPMOV® surge protection technology
- Green LED indicator provides status of protection
- Type 3R rainproof enclosure for indoor/outdoor applications in plastic
- 3-year product warranty
- $7,500 connected equipment warranty on appliances and electronics
- UL certified to ANSI/UL 1449 5th edition
