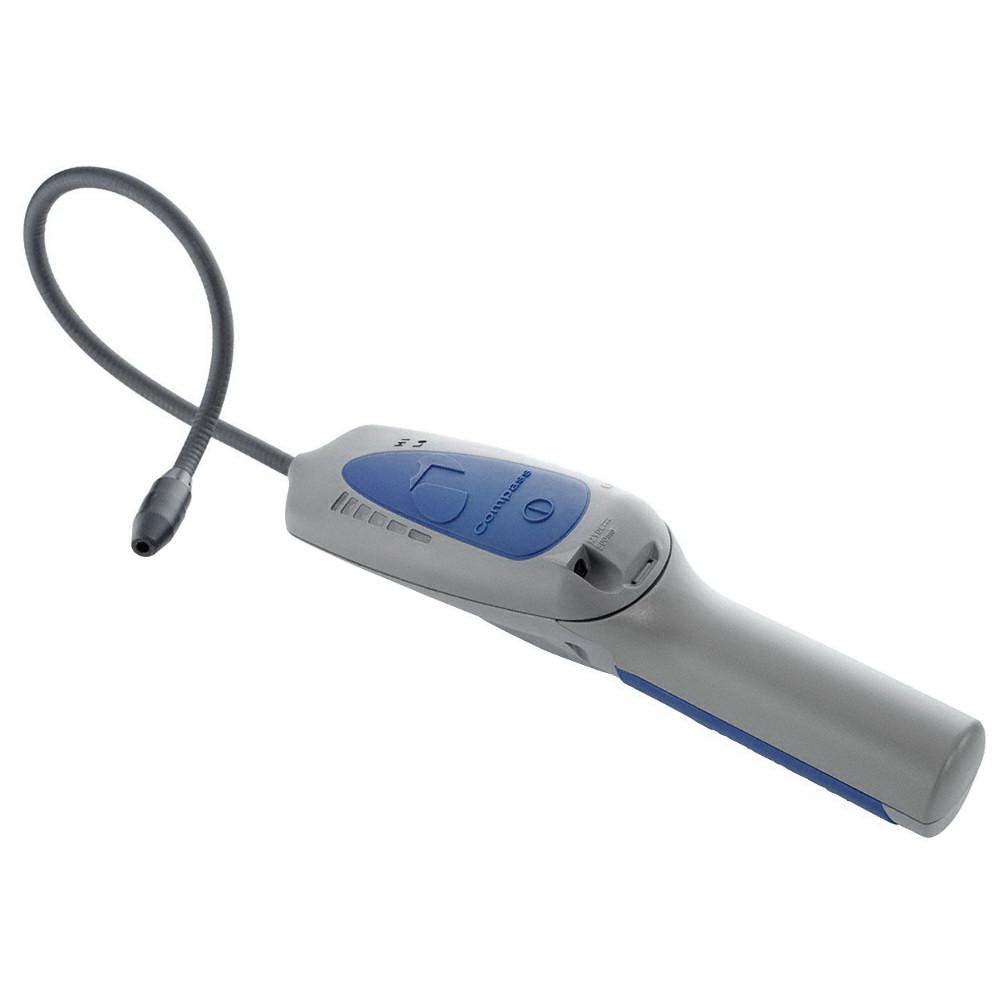

Inficon 717-202-G1 Refrigerant Leak Detector, 0.15 oz Sensitivity, Plastic

Inficon 717-202-G1 Refrigerant Leak Detector, 0.15 oz Sensitivity, Plastic

Brand: Inficon
Part #: 3611
Customer Part #:
Color      :      Gray
Dimensions      :      12 in L x 5 in W x 16 in H
Material      :      Plastic
Sensitivity      :      0.15 oz
Temperature Rating      :      -20 to 50 deg C

Integral to Compass is the INFICON patented heated diode sensor technology, delivering outstanding sensitivity to all refrigerants yet resisting jobsite contaminants such as dust, dirt and oil. For maximum versatility and ease of use, Compass has features such as rechargeable batteries, the ability to operate on AC power, adjustable high/low sensitivity and a series of LED leak indicators. The ergonomic design with rubberized grip fits your hand perfectly for comfortable, secure operation.

Inficon Refrigerant Leak Detector, 0.15 oz Sensitivity, Plastic, Gray, -20 to 50 deg C, 12 in L x 5 in W x 16 in H

  • Patented heated diode sensor provides excellent sensitivity
  • Automatic background adjustment ("zeroing")
  • Intuitive, easy one button operation
  • Power indicator shows when battery is low
  • Runs on NiMH batteries or AC adapter
  • Headphone jack
  • Detects R22, R134a, R404a, R410a, R448a, R507 (AZ-50), R32, HFO1234yf, and all other CFCs, HCFCs, HFCs, and HFOs
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Inficon_717_202_G1_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Inficon_717_202_G1_Instruction_Installation_Manual.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Inficon_717_202_G1_Specification_Sheet.pdf
